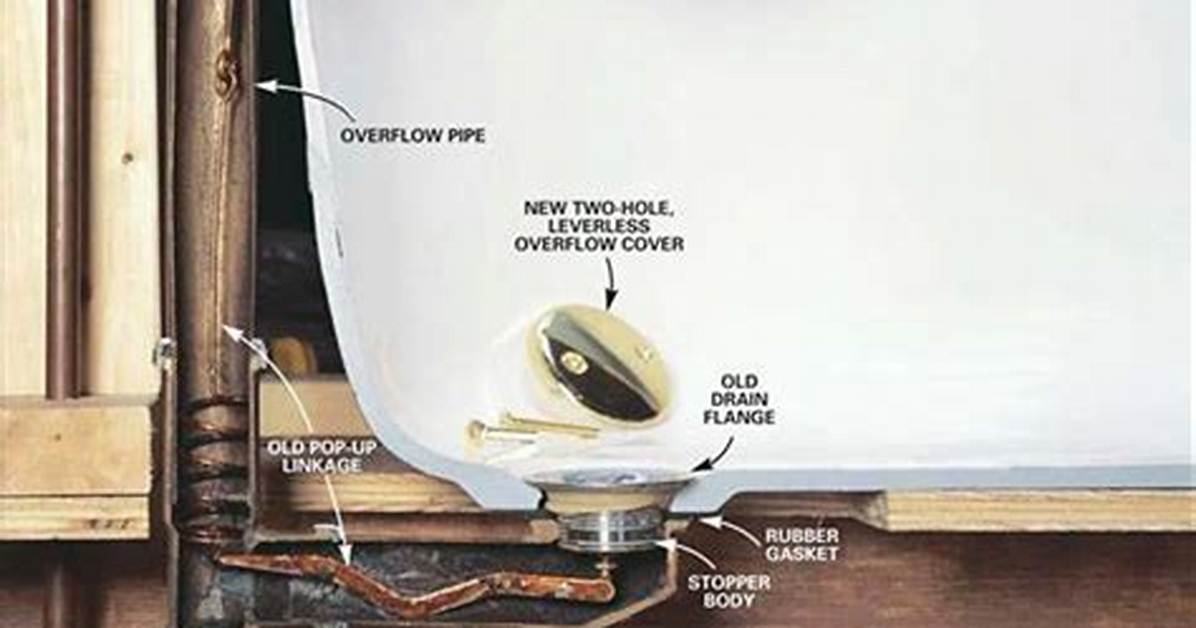

1 – Traditional Overflow: A hole is cut into the tub to accommodate a drain that installs on the inside and outside walls to collect excess water and send it down the tub drain to the P-trap. There are different types of tub drains to guarantee a proper fit for particular bathtub styles.
How does an overflow drain work in a bathtub?
The water that enters the overflow hole, goes down a pipe which is connected to the tub floor drain. With a well-functioning overflow drain, excess water will flow out the overflow hole, through the pipe and into the drain so as not to cause any damage to your bathroom or anything under or around the tub.
Does a bathtub need an overflow?
Depending on the style of bathtub and its use, having an overflow drain is not always necessary. If your bathtub is a shower/bathtub combo or if your bathtub is a smaller model, then having an overflow drain isn’t necessary. Installing an overflow drain is also a bit more involved than installing a standard drain.
How do you stop a bathtub overflow?
The quickest and easiest way to stop a bathtub overflow is to use a reusable overflow cover. Simply place the cover over the overflow on your bathtub to seal it up and stop water escaping through the overflow and down the drain. Giving you a deeper soak.
Why is water coming out of the overflow pipe?
When an overflow pipe is dripping or running with water, one of the most common causes is a problem with a float valve. Float valves are found in toilet cisterns, cold water tanks and central heating feed and expansion tanks.
Can you fill the tub past the overflow?
Water will continue to fill the tub beyond the overflow drain, and the bathroom could flood if the shower is not turned off or a leak is not fixed.
How do you clean an overflow drain?
Baking Soda and Vinegar
Slowly add 1 cup of white vinegar on top of the baking soda. The mix will foam up and move down the drain. Leave the mix in the overflow hole for around 10 minutes, and follow up with boiling water to flush out cleaner and help sanitize the overflow drain.
What is the round thing in the bathtub?
That is the tub drain overflow plate, though it’s actually above the drain, not the faucet. (The opening in this plate leads to a tube that prevents the tub from overflowing by allowing water to run out even if the drain in the bottom of the tub is stopped.)
Can you flip a tub overflow drain?
I simply unscrewed the drain plate, turned it upside down, and refastened it. Voila! The hole is now on the top of the plate. I have an extra 3 inches of water in the tub.
Do all tubs have overflow drain?
A bathtub does not have to have an overflow drain but a bathroom must have a mechanism to prevent flooding. Having a floor drain can be a practical alternative but insurance and building code considerations should be factored into your decision.
How do you install a bathtub overflow?
Instructions
Detach the Drain Fitting. Disconnect the Overflow Cover Plate. Remove the Waste-and-Overflow Assembly. Test-Fit the New Waste-and-Overflow Assembly. Attach the Waste-and-Overflow Assembly. Connect the Drain Fitting. Attach the Overflow Cover Plate. Test the Installation.
How does the overflow drain work?
Function. A sink’s overflow drain functions much like the main drain in the sink. When the water level reaches the overflow drains opening, the water simply starts owing into the drain opening. Rather than having a stopper, the overflow drain opening always stays open, ensuring it will operate at any given moment.
Why are bath overflows so low?
The bathtub overflow drain is so low because Bathtubs have a tub spout to drain excess water. Bathtub overflow drains are specifically designed so that the bathtub will not overfill with water.
Is a leaking overflow pipe an emergency?
So, if you see this valve leaking, you should immediately take notice. The pipe might leak because of excessive pressure to the system or because of issues with the pressure valve. In both cases, it is highly advised to call professionals for service.
Why is water coming out of the pressure relief valve?
If the temperature’s or pressure in your tank exceeds a certain level (often times 210 degrees and 150 psi), the relief valve opens up and allows some water to drain out of the tank. Cold water is then added to the tank in order to lower the temperature and pressure inside.
What are the two pipes on the side of my house?
One pipe is an air conditioning condensate drain, also commonly referred to as an AC drain line. These pipes are usually white in color and are made from PVC piping. Another pipe you may find on the outside of your home is a water pressure relief valve, also known as a PRV drain line.
