Typically, a 220v power plug can be connected with three or four wires.

For the best 220v plug click here .
Step One: Choose A Wire Gauge. Step Two: Remove The Outer Coating Of The Wire. Step Three: Feed The White Wire. Step Four: Push The Hot Wires.

What color wires go on a 220 plug?

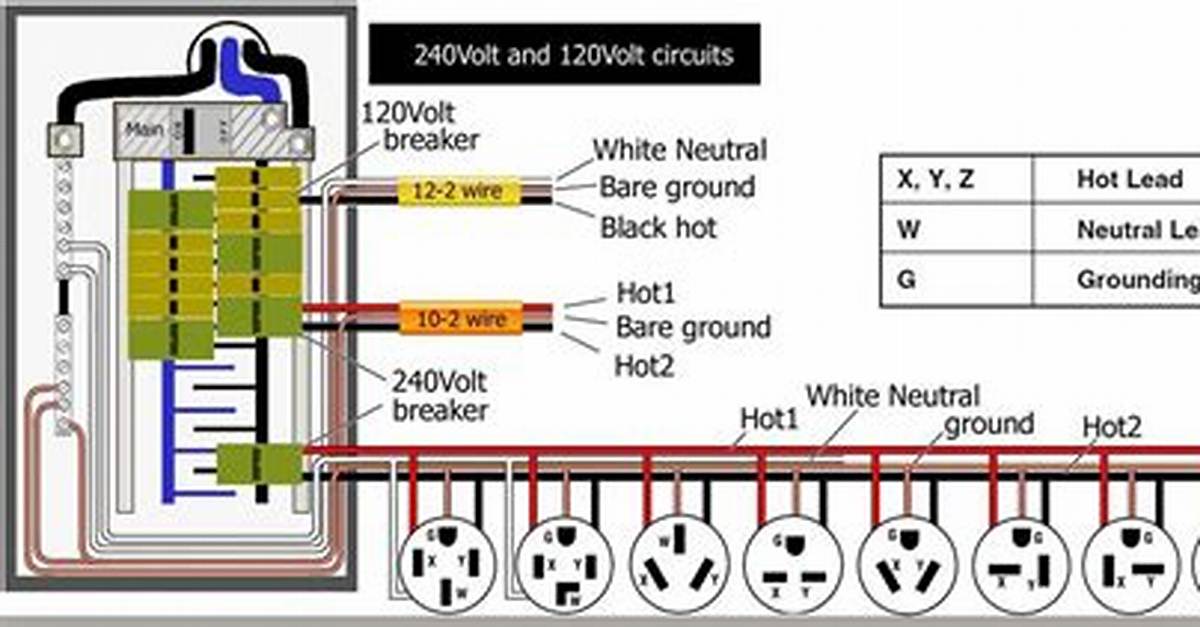

Connecting a 220-Volt Outlet

The black and red hot wires go on the brass terminals, and they are interchangeable. It doesn’t matter to which of these terminals you connect the wires. The white neutral wire goes on the chrome terminal, and the ground wire goes on the green terminal.

How many wires does a 220 plug have?

A 220 volt outlet can take cables with 3 or 4 prongs. Not all 220 volt outputs use a neutral (white) cable, but all will have two hot wires (one red and one black) and a ground wire (green). For example, an air compressor requires 220 volts, but the socket has only three tips.

How do you wire a 220 male plug?

Hold a four-prong 220 plug facing away from you with the “L”-shaped prong at the bottom. Connect the green wire to the bottom “L”-shaped prong terminal, the white wire to the top terminal across from it and the black and red hot wires to either of the two side hot terminals.

Does a 220v outlet need a neutral?

If a device needs both 120V and 240V, then two ungrounded (hot) conductors and one grounded (neutral) conductor must be used. If you connect a load between the two ungrounded legs of the circuit, you can see how you have a complete circuit through the coil.

Why does 220v have 4 wires?

The reason this change was mandated by the National Electrical Code is that the 4-wire setup is inherently safer and better able to prevent electrical shock, which in the case of a 220/240-volt circuit can be fatal.

Why are neutral and ground tied together?

If you touch the casing, and some real ground (like a water pipe) at the same time, you will close the circuit and carry all of the current. So, connecting the ground to neutral totally defeats the purpose of having a ground, and actually makes it more dangerous than not having the ground at all.

Which wire is hot on 3 prong plug?

The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

What does 220 volt wire look like?

The 220 outlet is larger, and it’s usually round and black or dark brown, not white. It can have three slots or four. Four-slot outlets have a ground wire. One or more of the slots is set horizontally or at an angle.

What are the color codes for electrical wires?

3-Phase Wire Color Codes
Phase 1 – Black wire.Phase 2 – Red wire.Phase 3 – Blue wire.Neutral – White wire.Ground – Green, Green with a Yellow Stripe, or Bare Wire.
