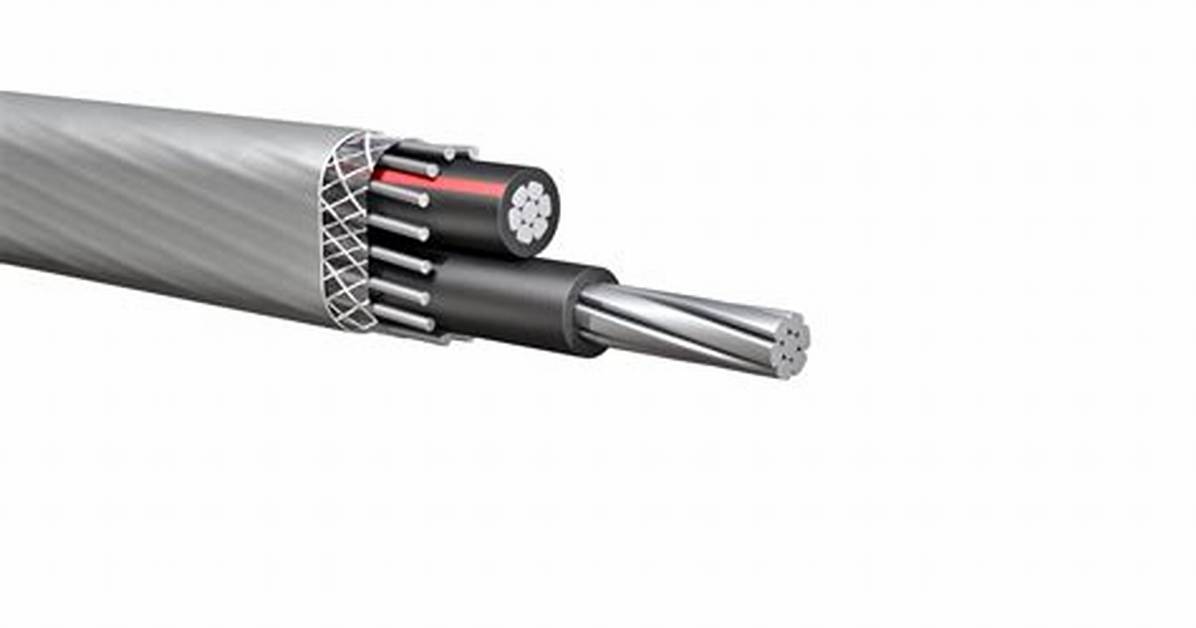

Service Entrance cable with Reinforcement tape. What is SEU Cable? Service Entrance cable, Unarmored. Applications: -SER cable is used as an above ground service entrance cable, a panel feeder and in branch circuits.
What is the difference between SEU and SER wire?
Basically, SER is a round service electrical cable that typically has up to four conductors and a bare neutral. The cable is designed to use above the ground in feeder panels and branch circuits. SEU is an unarmored Style U flat service electrical cable with two-phase conductors and a concentric neutral.
Can Seu cable be buried?
Type SE cable, containing two or more conductors, is permitted to have one conductor that is uninsulated. Types USE and USE-2 cables are designed and listed for underground installations, including direct burial in the earth and are available in both single-conductor and multiconductor cables.
How many wires are in Seu cable?
Style SEU cable has two phase conductors surrounded by a concentric neutral while the SER style has two, three or four phase conductors and a bare neutral.”
Can Ser cable be used outside?
More specifically, many customers are using our SER as a service entrance feeder cable from utility poles to their sub-panels when distributing power to an area outside the home (like a detached garage).
Can Ser cable be used indoors?
Technically SE cable ran indoors is treated as NM cable. I’d recommend metallic flex though if a conduit is to be used. Show activity on this post. SER is fine.
What wire do I need for a 200 amp service?
Installation of 200 amp electrical service needs a #2/0 AWG copper wire or #4/0 AWG for aluminum or copper-clad wire inside a minimum of 1.5 inches, schedule 40 or 80 PVC conduit for underground service. However, 2 or 2.5 inches is recommended if running 3 wires in the same conduit.
What type of wire is used for service drop?
Service Drops Provide All Power
A third cable, usually bare (uninsulated) aluminum wire with a steel core, serves as the neutral conductor and provides structural support for the entire service drop.
What size wire is needed for 100 amps?
For 100 AMP service, you’ll need a #4 AWG copper wire or #2 AWG aluminum or copper-clad wire. Make sure to limit your voltage drop to 3% regardless of distance.
What is UF cable used for?
UF-B cable is typically used as an underground feeder cable to distribute power from an existing building to outdoor lighting fixtures, pumps, outbuildings and other outdoor equipment. The cable can also be used as direct burial cable.
Are Thhn and THWN the same?
THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations.
What type of wire is in Seu?
Southwire® style SEU cable is constructed with sunlight resistant Type XHHW-2 conductors or Type THHN/THWN conductors. Copper conductors are annealed (soft) copper.
What is SCR cable?
Copper Rod SCR
LS Cable & System’ SCR uses electrolytic copper of 99.99% copper content as the raw material. Annual capacity is 270,000 tons via strand casting. It is widely used as conductors for vehicle cables, special cables for industrial use, winding cables, and power cables.
