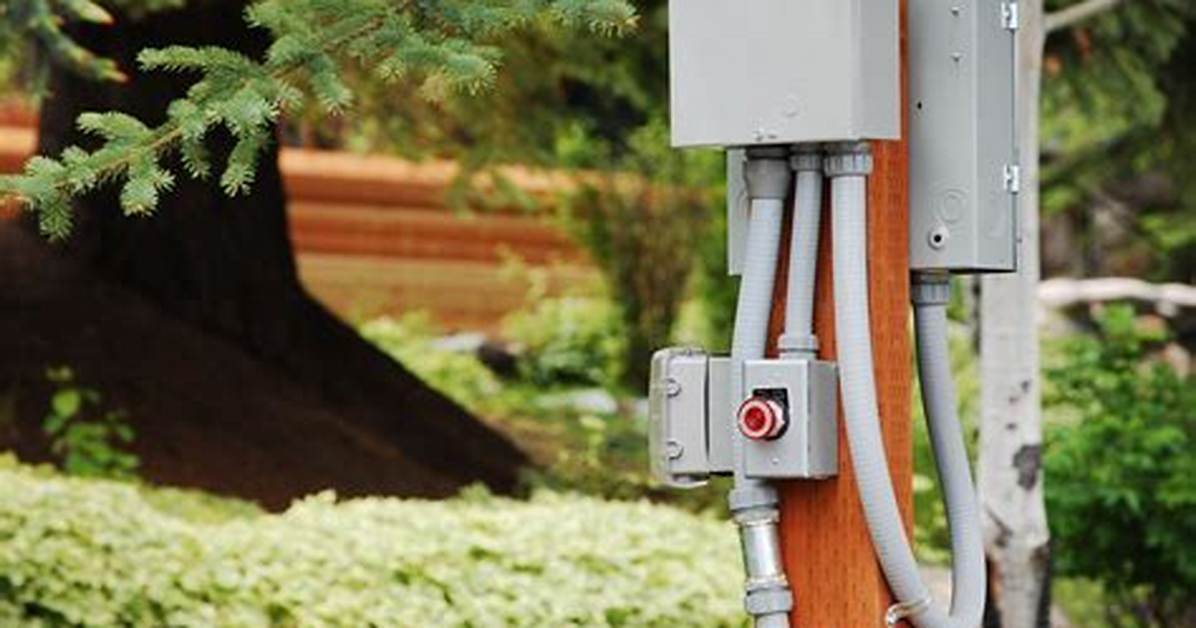

Nonmetallic conduit is typically made from PVC and is a good choice for outdoor residential applications.
Is plastic conduit suitable for outdoor use?
Standard 20mm plastic conduit will be fine, another method would be to use a cable type called Hi-tuff which is made for outdoor use, you wouldn’t really need to use conduit with that as long as it’s not likely to suffer mechanical damage although it would provide additional protection of course.
Is conduit required for outdoor wiring?
Local codes typically require conduit protection for exterior wiring if the wiring is installed above ground. If you are burying the wiring, most codes allow for underground fed cables, but some will require the use of a conduit. Buried or exposed wiring will need to be listed for its application.
Can I use flexible metal conduit outdoors?
Flexible Metal Conduit is a helically injury, flexible tubing usually made from aluminum. Because it can not be used outside or in other wet areas, Flexible Metal Conduit is rather restricted in its usefulness, yet there are a couple of applications where it is the clear selection.
Can Schedule 40 PVC be used outside?
Schedule 40 PVC Pipe
According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight.
Can I use GREY twin and earth outside?
If fact the (16th Ed) OSG in appendix 3 says T&E is generally suitable “on exterior surface walls, boundary walls and the like” with just a comment that protection from sunlight may be necessary. T&E has been in use outdoors and over cateneries for decades without any issues whatsoever.
Is flexible conduit waterproof?
Liquid tight flexible metal conduits or LFMCs are used to cover cables which need both flexibility and protection from moisture. This conduit has a waterproof jacket which means that it can be used in a variety of applications, including those that involve exposure to hazardous areas.
Where is PVC conduit not allowed?
Ambient temperature — PVC conduit isn’t permitted to be installed if the ambient temperature exceeds 50°C (122°F) [Sec. 352.12(D)].
How do you protect electrical wires outside?
How to Cover Exposed Wires Outside: Hide Outdoor Electrics
Use a bungee cord to secure the wire. Use flexible piping to protect the wire. Use electric tape to cover exposed wires outside. Use PVC piping to protect the wire. Use a corner bead to prevent wires from being exposed. Use flowers to cover the exposed wires outside.
Does shed wiring need to be in conduit?
You can run your wire underground in sealed PVC conduit or you can use type UF underground cable, as long as the wire is protected with conduit wherever it is exposed.
Can Romex be run in conduit?
No, you can not run your Romex wiring in conduits.
What type of electrical cable can be used outside?
(Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.) UF cable can be direct buried (without conduit) with a minimum of 24 inches of cover.
How do I run electricity to my shed above ground?
How to Run Electricity to a Shed
Plan and prepare the job.Plan the circuit.Draw shed wiring diagram.Select type and size of wire.Choose the right conduit.Dig the trench.Install switch box.Run the conduit.
How deep do you have to bury electrical conduit?
The generally applicable depth is 12 inches, or you can reduce it to 6 inches if you secure the cables with 2 inches of accuracy. Below an entry path, it is feasible to require only 12 inches of burial depth. Conduits require for installation in 2 inches of solid rock with accuracy.
What type of conduit is used for outdoor exposure and strong connections?
Rigid Metal Conduit—RMC and IMC
Rigid metal conduit, or RMC, is heavy-duty galvanized steel tubing that is installed with threaded fittings. It is typically used outdoors to provide protection from damage and can also provide structural support for electrical cables, panels, and other equipment.
Is EMT conduit waterproof?
It is not meant to be immersed in water. If your conduit or boxes fill up with water, it will short out and/or you will get leaks. 1) It’s EMT which can be installed outdoors.
Is steel conduit waterproof?
Metal Flexible Conduit with Vacuum PVC coating
The PVC jacket is resistant to water and most types of oils and greases. This flexible conduit is extremely flexible as well as offering satisfactory levels of mechanical resistance.
What type of conduit is used for outdoor exposure and strong connections?
Rigid Metal Conduit—RMC and IMC
Rigid metal conduit, or RMC, is heavy-duty galvanized steel tubing that is installed with threaded fittings. It is typically used outdoors to provide protection from damage and can also provide structural support for electrical cables, panels, and other equipment.
Can you run Thhn in conduit outside?
THHN is still the single conductor wire used outdoors and in conduit, because the THWN rating can resist water, oil, gases, and solvents.
What type of electrical wire can be used outside?
(Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.) UF cable can be direct buried (without conduit) with a minimum of 24 inches of cover.
What is difference between Thhn and THWN?
THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations.
