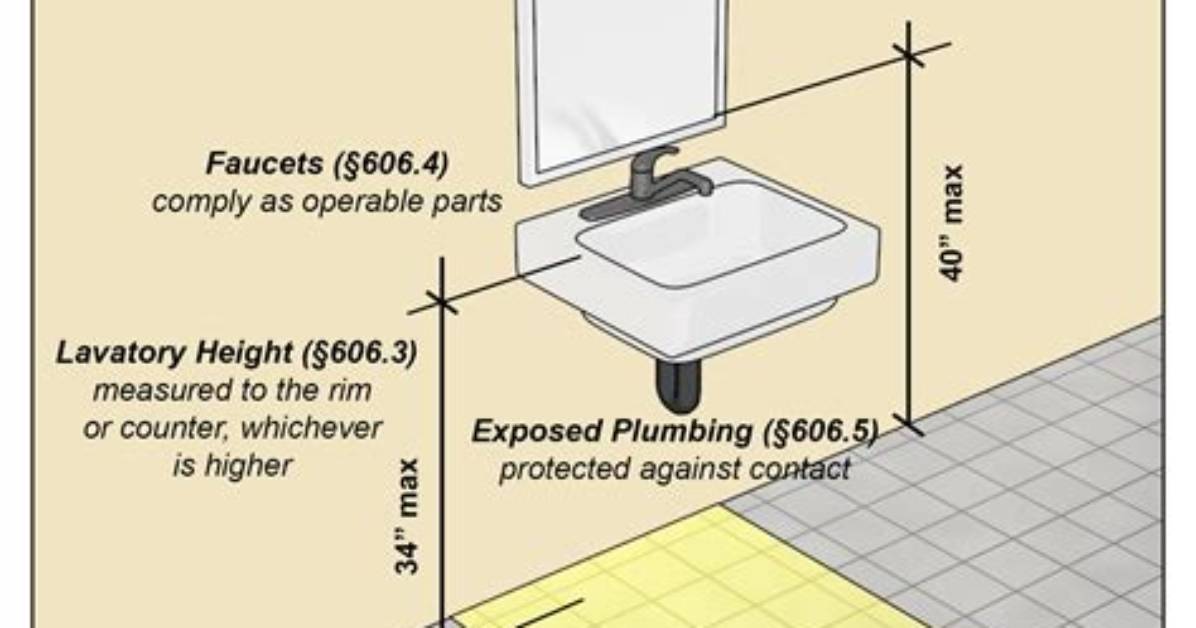

The maximum height of the lavatory is 34 inches (865 mm). The bottom edge of a wall-mounted mirror must be mounted no more than 40 inches (1015 mm) above the floor.
What is the maximum height of an accessible barrier free sink?
Sinks & Faucets
To meet ADA guidelines, sinks shouldn’t be mounted higher than 34 inches from the floor, and they should have a knee clearance of 27 inches high, 30 inches wide, and 11 to 25 inches deep. You also need a clear floor space and insulated pipes under the sink.
What is the height of a wheelchair accessible vanity?
ADA guidelines state that accessible sinks shouldn’t be mounted higher than 34 inches above the floor for adults. For children, the sink should be set at 29 inches maximum above the finished floor.
How high is an ADA toilet?
The standard ADA (Americans with Disabilities Act) height toilets must have, a 17”-19” floor to bowl rim height, including the seat. You should also consider the toilet rough-in from the wall, which is commonly 12”. Other rough-in dimensions in older homes can be 10” or 14”.
What is ADA counter height?
An ADA compliant sales or service counter must have a portion that is 28″-36″ inches high, measured from the finish floor to the sales counter top. This portion of the counter must also be at least 36″ inches long for a parallel approach or a 30″ length for a forward approach.
What is the standard sink height?
Standard Sink Heights
Standard bathroom sink heights range from 29 inches to as much as 36 inches high, depending upon personal preference and the type of sink. For example, pedestal sinks are built between 29 and 33 inches high, while bathroom vanity cabinets with set-in sinks range from 30 to 36 inches in height.
What is the ADA compliant sink depth?
Specific to kitchen sinks, under the ADA requirements, the sink should be 5 inches to 5 ½ inches deep to allow space for a wheelchair to go underneath and to not be so deep as to make it difficult for a seated person to reach to the bottom of the sink.
What is a ADA compliant sink?
ADA compliant bathroom sinks are bathroom sinks that meet the requirements of the Americans with Disabilities Act (ADA). ADA compliance is not a requirement for private residences though ADA compliant sinks may be required for some commercial projects.
What are bathroom vanity heights?
Standard Height: The standard bathroom vanity height has always been 30 to 32 inches. If you aren’t the tallest, you should opt for a standard height vanity. Plus, these work well for homes with children who use the bathroom vanity frequently.
What size is a handicap sink?
The ADA height requirement for sinks is no more than 34 inches from the floor with 27 inches for knee clearance. Sinks, or lavatories, also require minimum clearance area of 30 inches wide by 48 inches deep. This rectangular space reserves adequate room for wheelchair approach and maneuverability.
What is an ADA compliant vanity?
The sinks should not exceed six inches in depth and should be installed within three inches from the front of the overhanging cabinet top edge. The ADA vanity cabinet or even a simple wall hung sink should have a knee clearance below of 27 inches high and be at a minimum 32 inches wide by 11-25 inches deep.
Are ADA toilets higher or lower?
A comfort height toilet is sometimes known as an Americans with Disabilities Act (ADA) toilet because the height matches that used for ADA-compliant toilets, 17 to 19 inches from floor to seat. This is like the height of a chair. The height of a standard toilet is about 15 inches from floor to seat.
How high is Kohler Comfort Height?
Seat Heights
Heights vary enough to be noticeable. Most often, they fall somewhere between 15” and 19”, with standard toilets coming in under 17”. However, chair height toilets, what Kohler refers to as Comfort Height® toilets, measure 17” or more.
Which toilet height is best?
The ideal height for your toilet will depend on three things. Standard toilets are usually around 15 inches high at the seat. If you are a tall person, that could be too low for you. You might want to check into a floor-mounted “comfort height” toilet that is 17 to 19 inches in height or elevated toilet seats.
What is an ADA compliant range?
ADA Requirements for Ranges
To be considered ADA compliant, a GE range must meet the following requirements: Maximum high forward reach for controls and operating mechanisms is 48″; maximum low forward reach is 15″.
What is ADA aisle clearance?
ADA Compliant Commercial Spaces
Generally, the minimum width of a clear aisle must be 32 inches or more to allow a general wheelchair to pass through.
What is ADA height for light switches?
The ADA requires that light switches be placed anywhere from 15 to 48 inches. A light switch mounted at 48” is not accessible for individuals with quadriplegia who use powered wheelchairs, little people, or for people carrying heavy boxes.
