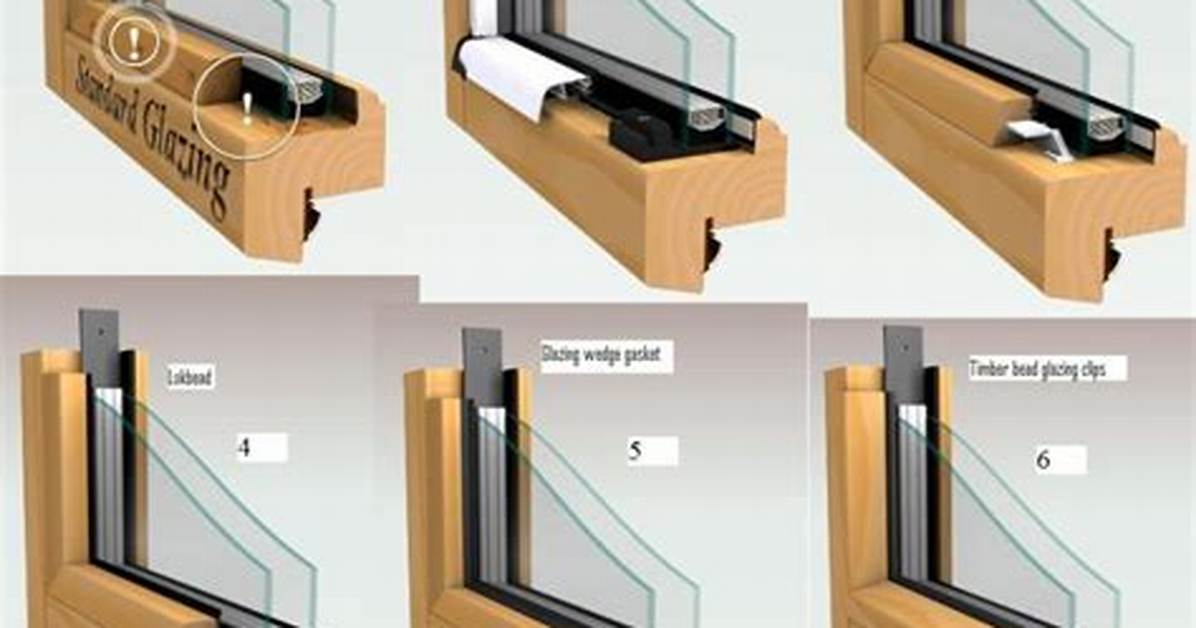

The “beading ” is the part of the frame holding the glass in place, usually a plastic strip at the edge of the glass which snaps securely into the recess.
Can you replace window beading?
If you do need to remove the glazing beads ie to replace a double glazed unit this should be done with the utmost care so not to damage the glazing bead in anyway. While obtaining replacement glazing beads is difficult it is not always impossible.
What is window beading made of?
Aluminum/Steel glazing beads
Aluminum or steel glazing beads lock into a channel built into the glass opening in a window, like vinyl glazing beads do. They are typically found in aluminum or steel windows.
Why is window beading on the outside?
Externally glazed windows have their beading strips situated on the outside face. In older units, this could mean that glazing units can be removed from outside the building without breaking the glass first.
What is beading on double glazed windows?
Beading’ refers to a strip of timber, plastic or aluminium (glazing bead) that is applied to the edge of a window pane to hold it in place within the frame.
Can you replace UPVC beading?
If the beading is external, you will need to remove the rubber gasket seal from inside the window first. This gasket strip can be prised out with the tip of a lead knife, and should then pull out quite easily. Take note of the way it comes out so you can replace it correctly.
What is glass bead Moulding?
Glass and Sash beads are narrow wood strips or moulding used for edging against a door or window sash, or to secure glass panels to doors and windows.
How do you seal double glazing to wood frames?
There should be a 3mm gap between the edge of the unit and the wood, allowing for thermal movement. You’ll then need to place the beads around the unit itself, nice and snug. To complete, run a seal of silicone sealant between the face of the glass and the back of the rebate, forming a watertight seal.
How do you seal a glass window frame?
To seal the window, apply traditional glazing putty (also called glazing compound) with a putty knife. You can also buy glazing putty in a caulk tube, but applying with a knife creates a tighter bond and a smoother surface once you get the hang of it. For double-glazed panes, sealing tape usually needs to be replaced.
Can you caulk windows instead of glaze?
No, the window glazing putty and caulk are non-interchangeable. Substituting one for another can cause problems. For example, if you want to seal the gap between a window frame and glass, and acrylic latex caulk would not work. The difference in elasticity and texture would prevent a proper seal.
How can I make my externally beaded windows secure?
How can I secure my externally beaded windows?
To have your externally beaded windows replaced with internally beaded. To have the vulnerable glazing panes removed and secured with tape. To Fit No Go Glass locks to the vulnerable panes.
Which side of the door should the glazing bead be fixed?
All glazed external doors should be hung with the fixed glazing bead to the outside. If the door needs to be trimmed to fit an existing opening then it should be less than 5 mm on the stiles and 10 mm on the top and bottom rails.
What is beading on French doors?
What is beading? Timber glazing beading or wood glazing beading is used on the inside of a window or door to hold the glazing inside the frame. Sashed offers a choice of beading in either the ‘Ovolo’ or ‘Lamb’ style, both styles come in various sizes.
Are externally beaded windows safe?
Yes, externally beaded windows are safe. Whilst many windows for residential property are mostly internally beaded, there are cases where the beads have to be on the outside.
Can burglars break double glazing?
Double glazing is virtually burglar-proof as it’s incredibly hard to break, effectively putting two barriers between you and potential thieves. Furthermore, the gas in-between the gaps also acts as a shock absorber.
What is glazing tape used for?
Acrylic foam glazing tape is typically used to seal the area between the glass panel and window sash or door frame to prevent water and air leaks. This refers to commercial window construction and curtain wall glazing.
