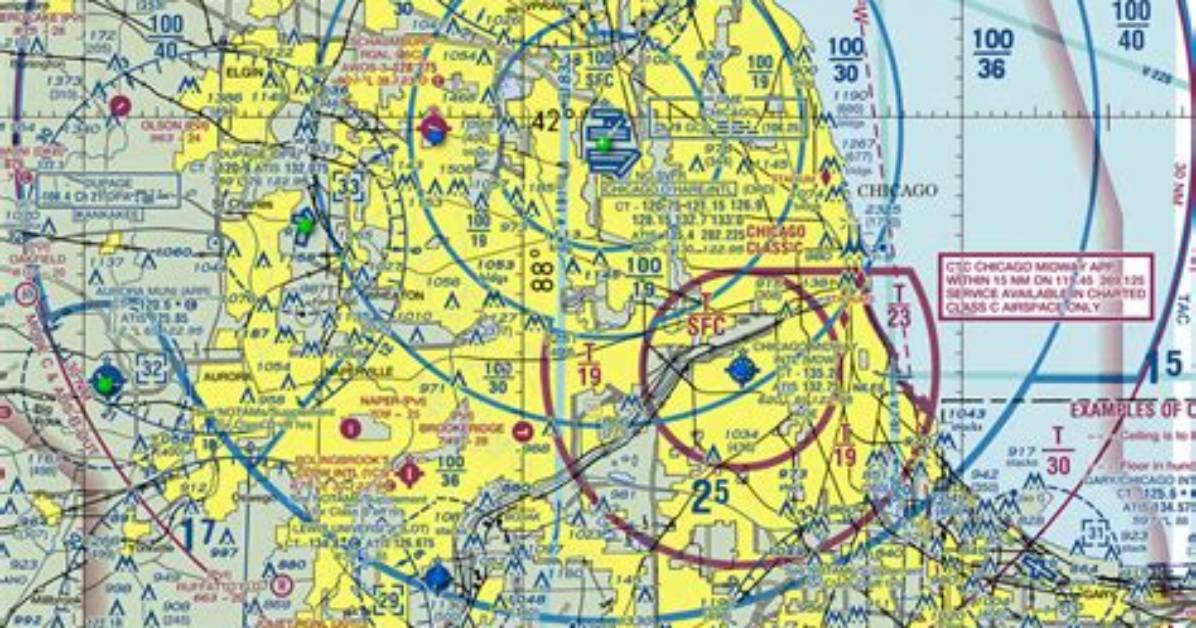

Sectional Charts are designed for visual navigation of slow to medium speed aircraft. The topographic information consists of contour lines, shaded relief, drainage patterns, and an extensive selection of visual checkpoints and landmarks used for flight under VFR.
What is an FAA sectional chart?
The aeronautical information on Sectional Charts includes visual and radio aids to navigation, airports, controlled airspace, restricted areas, obstructions, and related data. These charts are updated every 56 days. Separate indices show the coverage of VFR Charts (Conterminous U.S. and Alaska).
What is the ratio of sectional chart?
Sectional charts are the most common charts used by pilots today. The charts have a scale of 1:500,000 (1 inch = 6.86 nautical miles (NM) or approximately 8 statute miles (SM)), which allows for more detailed information to be included on the chart.
What are the differences between sectional and world aeronautical charts?
They have the same types of information as sectional charts but offer even more details, especially about airspace, airports, obstructions, terrain, and visual checkpoints. World aeronautical charts or WACs use a one to 1 million scale and are best used over long distances by pilots of fast airplanes.
What charts do airline pilots use?
In the United States, aeronautical charts are published by the FAA, the Federal Aviation Administration. The one above is similar to the one I saw in Half Moon Bay. It’s used for flying under visual flight rules (commonly referred to as VFR—if you’re going to be a pilot, you’d better get comfortable with acronyms).
What does star mean on sectional chart?
QUESTION: On a VFR sectional chart, you see a star symbol next to the control tower frequency. What does that star symbol tell you? ANSWER: The star symbol tells you that control tower operation is part time only. ( Source: Aeronautical Chart User’s Guide, page 9)
What does yellow mean on a sectional chart?
Yellow areas indicate that, while flying at night, you will be able to easily identify the area as Richmond (or anywhere else) on a sectional chart.
How many VFR Sectional Charts are there?
The Federal Aviation Administration (FAA) in the United States publishes over 50 charts covering the continental United States, Alaska, and Hawaii. Sectional charts are published by the National Aeronautical Navigation Services Group of the FAA.
How big is a sectional chart?
Dimensions will vary depending on the area specified, but the approximate size of the framed chart will be between 16” x 20” and 18” x 24” in either a horizontal or vertical orientation. Ready to display, it’s ideal for the office, game room, or flight planning area! Includes attached hanging hardware.
What is Unicom used for?
UNICOM is a nongovernment air/ground radio communication station which may provide airport information at public use airports where there is no tower or FSS. On pilot request, UNICOM stations may provide pilots with weather information, wind direction, the recommended runway, or other necessary information.
What are Cao charts?
Jeppesens popular CAO charts were developed and introduced to the commercial aviation marketplace in 2005. The current enhancements to the series were developed in response to customer requests for additional specific chart data and increased coverage of airport locations served by airlines worldwide.
What are pilot maps called?
An aeronautical chart is a map designed to assist in navigation of aircraft, much as nautical charts do for watercraft, or a roadmap for drivers.
What is VFR condition?
Visual Flight Rules simply means that the aircraft is intended to operate in visual meteorological conditions (VMC, i.e. nice and clear weather). Clouds, heavy precipitation, low visibility, and otherwise adverse weather conditions should be avoided under VFR.
Are sectional charts in MSL or AGL?
Sectional charts normally show both mean sea level (MSL) and above ground level (AGL) heights for towers. Next to the tower, you’ll see two numbers. The top number is the height in MSL and the bottom number — in parentheses — is the height of the tower in AGL.
What is the difference between a sectional chart and a terminal area chart?
TACs are more detailed than sectional charts, and are scaled at 1:250,000 (as opposed to 1:500,000 for sectional charts) to permit inclusion of more detail. TACs contain information on approach, departure, and transition rules and procedures for the congested Class B areas around major airports.
How long are VFR sectionals good for?
According to the FAA, beginning February 25, “all Sectional Aeronautical, VFR Terminal Area (TAC), VFR Flyway Planning, VFR Aeronautical, and Helicopter Route Charts will be updated and continue to be updated every 56 days” to coincide with the publication dates of other en route, terminal, and supplemental chart
