Possible causes are low refrigerant, a faulty pressure switch, a faulty control switch or a faulty computer. If power and ground are found here, move to the next step. With the engine running, and the A/C controls in the max cooling positions, test for power at the compressor clutch electrical connector.
How much is an AC relay switch?
Cost to replace AC relay switch
Replacing an AC relay switch costs $100 to $300 with professional installation or $10 to $30 for the relay alone. The relay turns on the AC’s outdoor condenser unit.
How does an AC relay work?

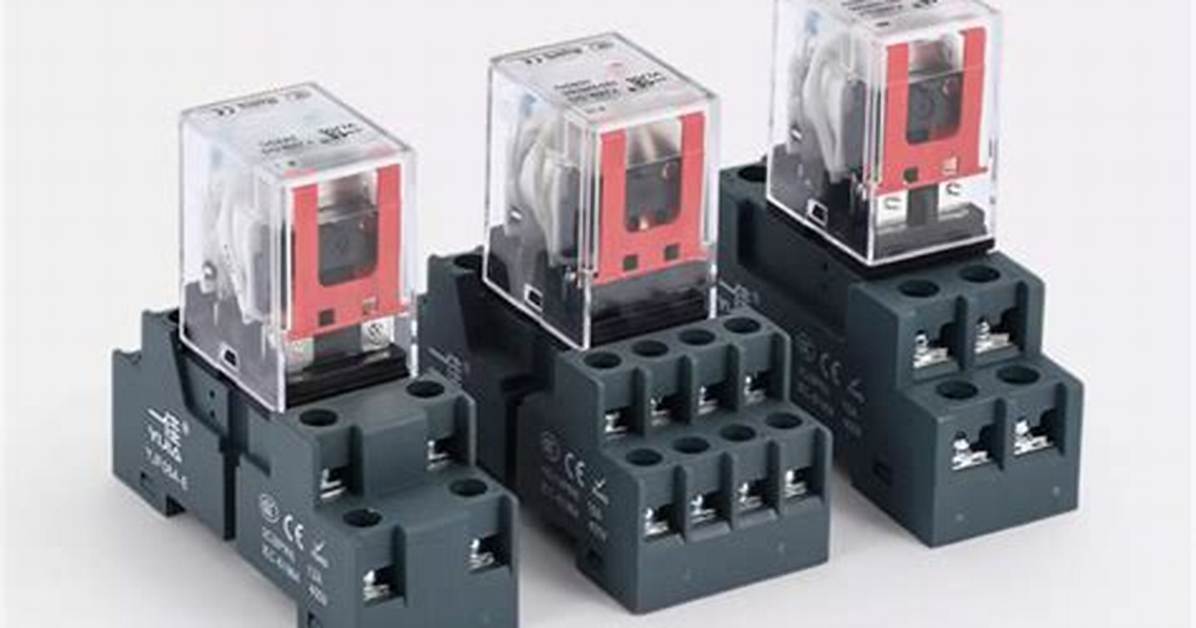

A relay is an electromagnet with an internal spring-loaded lever to switch electrical contacts. To energize the relay, alternating current (AC) or direct current (DC) is passed through the coil of the electromagnet, magnetizing the core to attract the lever.
How can I tell if my AC relay is bad?
Common signs include inconsistent cooling, not hearing a click from the compressor turning on, and no cold air.
Where is the AC relay switch?
The relay can be mounted on the fire wall or on the fender well. A/C control installations typically have a three-wire connection for the relay. One wire is a ground, one wire is the input from the interior control panel, and one wire is the power feed to the A/C compressor clutch.
How much is a AC compressor relay?
How much does an a/c compressor relay cost? It’s cheap and easy. It’s as simple as swapping out one relay for another and then testing the system. Expect prices to start around $35 to $100+ for a replacement of the relay alone.
How do I know if my AC compressor fuse is bad?
Test the load: If you saw a voltage reading during the previous step, run the same test on the “load” side of the fuses. You should again see a reading between 220 and 240. If you see a voltage reading on the “line” side but not the “load” side, it means you have a blown fuse.
What happens when an AC freezes up?
An AC works through a refined control of temperature, pressure, and airflow. If any of these things fall out of balance, the refrigerant system that creates the cold air can overclock and freeze itself, without actually making your air any colder. A frozen AC will either blow warm/cool air or nothing at all.
What is the difference between AC and DC relay?
A Dc relay coil has resistance that limits the dc current. An AC coil relies on its impedance for governing the current. An AC relay will remain contact closed due to mechanical inertia and a little mechanical hysteresis and, the fact that an alternating north and south pole both attract the relay armature.
What is the purpose of relay?
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents. These conversions occur when electrical inputs activate electromagnets to either form or break existing circuits.
Why are relays used?
Relays are used to control high voltage circuits with the help of low voltage signals. Similarly they are used to control high current circuits with the help of low current signals. They are also used as protective relays.
What is the difference between contactor and relay?
A contactor joins 2 poles together, without a common circuit between them, while a relay has a common contact that connects to a neutral position. Additionally, contactors are commonly rated for up to 1000V, while relays are usually rated to only 250V.
Can a blown fuse cause AC not to work?
While this prevents serious trouble such as electrical fires, it also means that a single blown fuse can cause the entire air conditioner to stop working. Some of the most common causes of AC failure are rooted in electronics.
