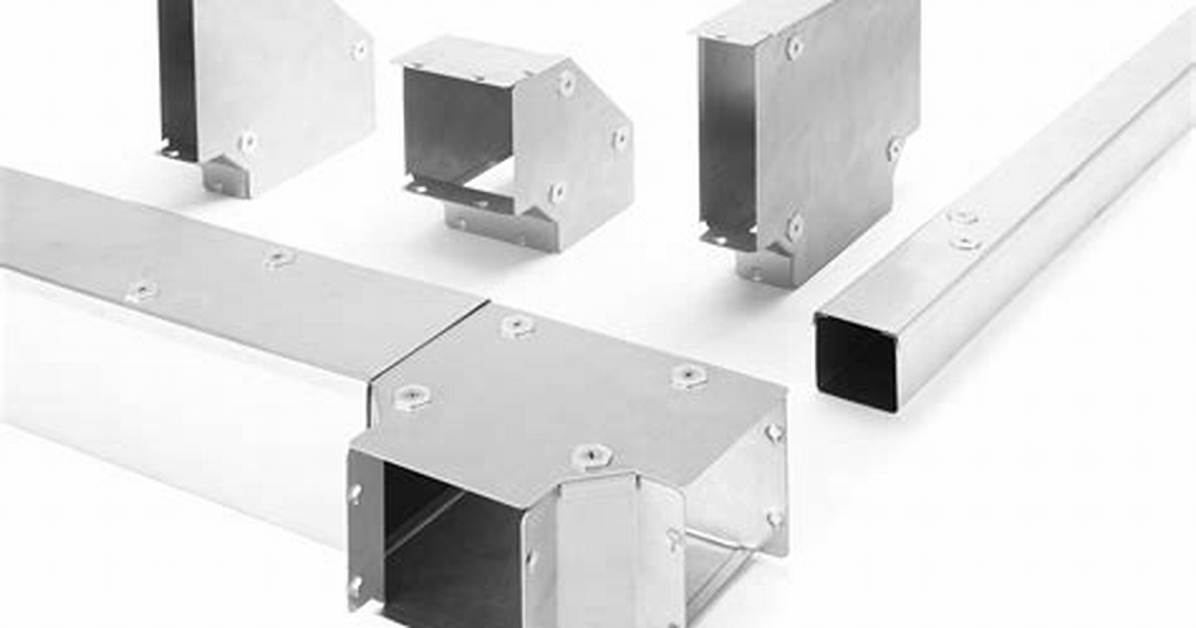

Trunking is a hollow enclosure through which cables or pipe can be run to keep them protected and organized. Removable covers allow quick and convenient access for routine inspections or repairs.
What are the types of trunking?
Various Types and Sizes of Trunking
Plastic like PVC.Stainless steel.Silver enamel on zinc coating.Grey enamel on zinc coating.Hot dipped galvanized coating.
Which cable trunking is non metallic?
Plastic electrical conduit or rigid PVC-U pipe specified as electrical nonmetallic tubing (ENT) conduit, shown in our photographs here, is easier to cut than metallic conduit products. Flexible plastic conduit is also sold as LFNC, liquid-tight nonmetallic conduit.
Is metallic trunking connected to earth?
Typically steel trunking is earthed indirectly – e.g. by being bolted to the earthed enclosures of other equipment or even via steel conduit to steel clad accessories.
What is the difference between conduit and trunking?
As nouns the difference between trunking and conduit
is that trunking is all the electrical and communications cables bundled together and distributed through a building while conduit is a pipe or channel for conveying water etc.
What are the advantages of trunking?
The following benefits are evident when you enable your network with SIP trunking:
Eliminate Network Overlap. Increase Network Flexibility. Reduce Costs. Greater Levels of Scaling. Preserve Investments. Zero Outages Worldwide.
Is metal conduit conductive?
Steel conduit has been in use as a “raceway system” for electrical conductors since the early 1900s. The wall thickness and strength of steel make metal conduit the wiring method recognized as providing the most mechanical protection to the enclosed conductors.
What is the difference between metallic and non-metallic wire?
The non-metallic (NM) designation refers to the outer sheathing that bundles individual wires together like a cable. This is in contrast to metallic sheathed cable or conduit wiring, in which the bundle of individual conductors is protected by some form of a metal coil or metal conduit.
What is the difference between metallic and nonmetallic conduit?
Most conduit is rigid, but it can be flexible as well. While metallic conduits serve to shield sensitive circuits from electromagnetic interference from enclosed power cables, non-metallic conduits resist corrosion and are lightweight, reducing labor and installation costs.
What is metallic sheathed cable used for?
Metallic Sheathed Cable : Also known as armored or BX cables, metal-sheathed cables are often used to supply mains electricity or for large appliances.
Is metal cable trunking an extraneous conductive part?
The cable tray carries metallic sheathed cables, such as bare micc. – In the event of a fault on the circuit the fault path will be the metallic sheath of the cable and therefore the tray is not an exposed-conductive-part and does not require earthing.
How is Earth continuity maintained across a metal trunking joint?
You should use copper links across steel trunking joints to maintain earth continuity. Any high resistance joints due to corrosion/fixings coming loose etc could cause the trunking to reach mains potential in the event of a fault.
What do you cut trunking with?
To cut Stainless Steel Trunking, the following tools and protective equipment will be required:
Hacksaw.Vice.Cutting fluid – e.g. ROCOL.Screwdriver.Tape Measure.Pencil.Power Drill.A high-quality drill bit.
