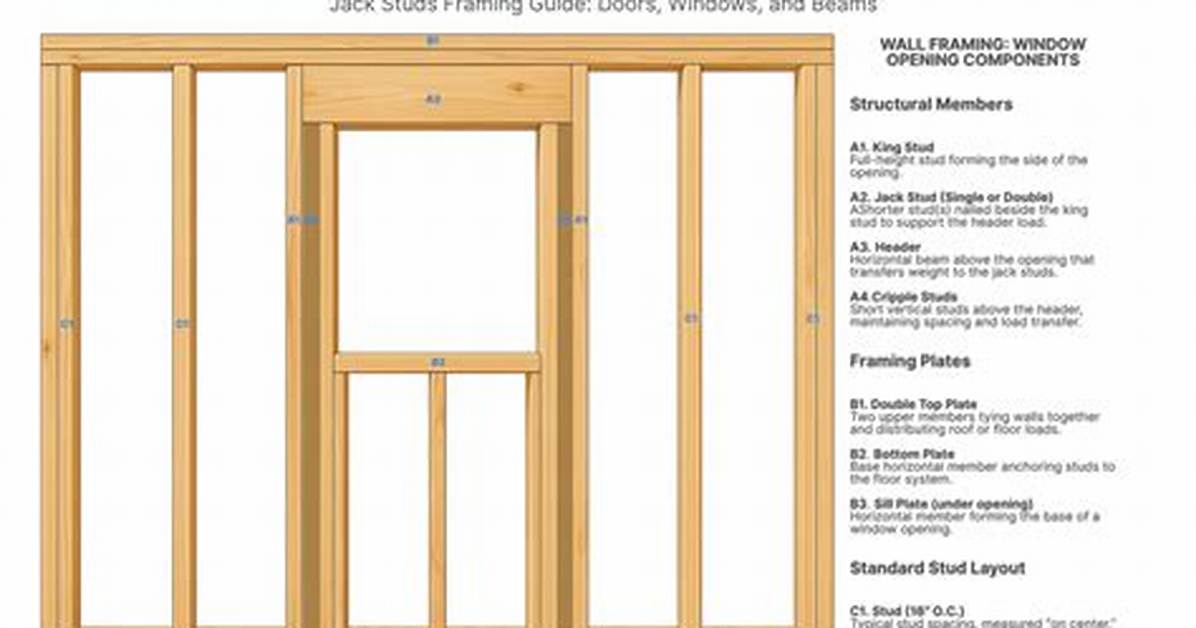

A jack stud is a vertical structural element that sits below and supports a header to transfer its loads downward to the bottom plate and ultimately to the structure’s foundation. Its length determines the header height and is critical for rough openings of windows and doors.
What is the difference between a jack stud and a king stud?
Door openings commonly have two king studs and two jack studs. A king stud is one that runs continuously from the top plate to the bottom plate. The jack stud is nailed to the king stud, but it’s shorter as it supports the structural header or the flat 2x material that you use for a door in a non-load-bearing wall.
Why are they called jack studs?
The jack stud is sometimes called a trimmer stud. The term “jack” derives from mid–16th century England, where it referred to a lad, knave, or common man: Jack: (1) A man of the common people, a lad, fellow, chap, especially a low-bred or ill-mannered fellow, a knave.
What is a jack stud over?
A jack stud is a stud that has been cut down to be placed above and/or below an opening. The jack stud provides support to the lintel trimmer and sill trimmer.
Do I need a jack stud?
Local building codes require two-or-more jack studs when building an opening larger than five-feet wide. The number of jack studs used in framing is always directly related to the width of the opening, which then correlates to the dimensions and weight of the header.
Do jack studs need to be continuous?
Studs shall be continuous from support at the sole plate to a support at the top plate to resist loads perpendicular to the wall. The support shall be a foundation or floor, ceiling or roof diaphragm or shall be designed in accordance with accepted engineering practice.
Can you remove a jack stud?
If the jack studs are cut down, they probably need to be cut more than 3/4 inch total to accomodate shims to square the door in the opening. If you take out only 1/2 inch on each side, you have reduced the jack stud by 33%. If this is done in place, you are also stressing the remaining structure of studs, header, etc.
How many jack studs do you need for an 8 foot opening?
How many jack studs for a 8 foot opening:- as per general rules and guidelines, for a 8 foot window or garage door or opening, generally you will need 2 jack studs (trimmer) and 2 king studs at both end.
What is the bottom 2×4 of a wall called?
A horizontal piece at the bottom of the wall is called the bottom plate. The studs are nailed to this plate, which is nailed to the floor. At the top of the wall is the top plate. Often a doubled 2×4, it anchors the top ends of the studs as well as ties the wall into the ceiling.
Why is it called a cripple stud?
In carpentry, the term “cripple” refers to a special-purpose wall stud or roof rafter. A cripple stud is located above a door or window or below a window. A cripple rafter runs from hip to valley on a roof or is cut short to allow for an opening such as a chimney or skylight.
What is a cripple trimmer?
Trimmers are installed parallel to the primary floor or ceiling joists and support headers, which run perpendicular to the primary joists. It can also refer to a jack stud that supports a header above a window or door opening. Traditionally, a stud which was less than full length was sometimes referred to as a cripple.
How do you nail jack studs?
Nail through the plates into the ends of the king studs and through the sides of the king studs into the ends of the header. Nail through the top and bottom plates into each end of the common studs. Facenail through the jack studs into the king stud and through the bottom plate into the end of the jack stud.
What is a jack in framing?
Jacks, sometimes called trimmers, are studs cut to length to fit under each end of a header and down to the bottom plate. Jacks transfer the load that the header carries down to the bottom plate and the framing beneath.
How many jack posts do I need?
In most cases, two posts are required. These combine to support a heavy piece of lumber that raises and supports an entire section of the sagging floor, rather than just a single joist.
How do you put a header on jack studs?
Fit the header between the king studs atop the jack studs. Toenail up underneath the jack stud into the header on both studs. Use 3-inch nails to nail the king stud to the header on either end.
