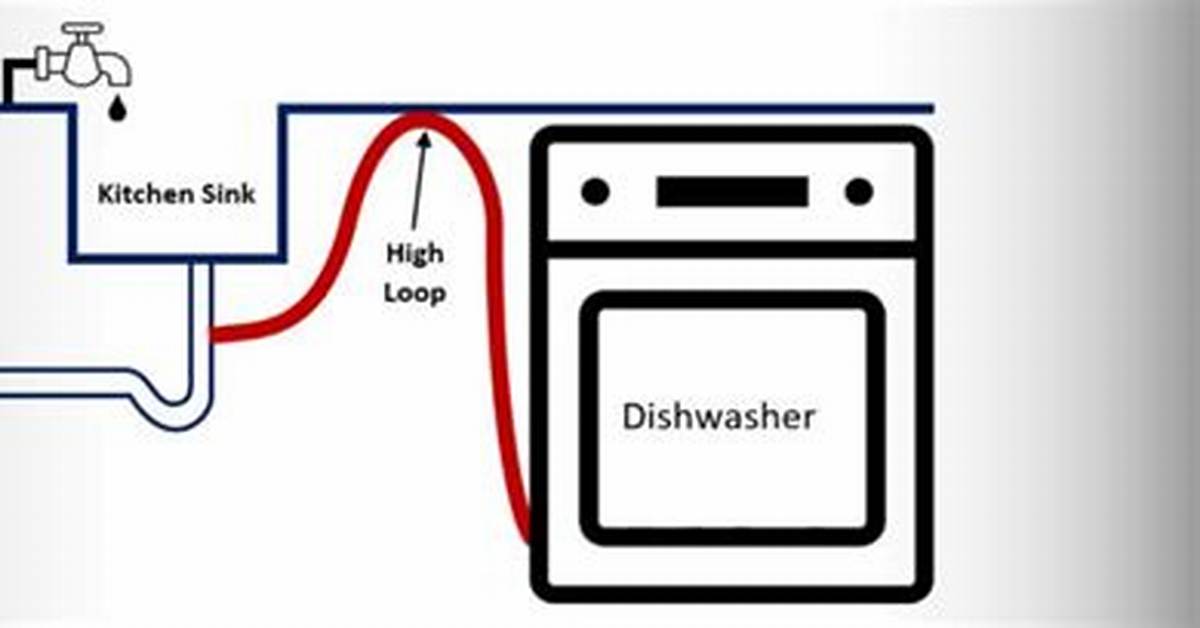

A high loop is a method of backflow prevention where the drain line runs from the dishwasher to the highest point beneath the sink. The loop is affixed to the underside of the counter with a bracket, then drains down into the garbage disposal or sink drain.
Is a high loop necessary for dishwasher?
The high loop is necessary for 2 reasons. The first is to ensure proper drainage of waste water during the drain cycle and prevent siphoning. The second is to prevent contaminated water from the garbage disposal or sink drain from back-flowing into the dishwasher.
What is a high loop on a garbage disposal?
What is a high loop? A dishwasher is usually installed to drain directly into the garbage disposal or sink plumbing. If the drain line is installed with a proper high loop, the drain line is raised and connected to the underside of the countertop or cabinet creating a high loop.
Why do you need a high loop?
What is the purpose of a high loop? A high loop prevents waste water back flowing from your sink to your dishwasher. If the drain hose is not elevated, there is a potential for water to run the wrong way through your drain hose and can cause standing water at the bottom of your dishwasher.
Does dishwasher need to be next to sink?
Dishwashers should be placed next to the kitchen sink – either on the right or left-hand side – as well as being close to storage units. It is also important to ensure that your dishwasher placement allows freedom of movement.
Why does my dishwasher drain out the vent?
Answer: The air gap is just that – a gap of air in the dishwasher drain line so dirty water can not be forced up out of the sink and into the dishwasher. When the gap leaks, it is normally due to a kink or blockage in the tube from the air gap to the tail piece (drain line) below the sink.
How high should a dishwasher drain hose be?
Dishwasher hoses should have a high loop at least 20 inches above the finished floor to prevent wastewater from entering the appliance if the drain clogs. Code requires that the hose connect to the sink drain on the sink side of the trap, typically with a branch tailpiece.
Is air gap better than high loop?
The high loop method is not as reliable as an air gap, but it can help to prevent contaminated water from being drawn back into the dishwasher. Where allowed, the high loop method frees up a sink mounting hole that can be used for a soap dispenser, water filtration, or instant hot water dispenser.
How do you secure a high loop?
A high loop should always be installed with the dishwasher drain line to prevent backflow of waste water to the dishwasher. The high loop should be fastened, secured to the bottom of the countertop.
Should dishwasher be connected to garbage disposal?
It is recommended to connect the dishwasher discharge drain into the disposal for this very reason. Food will eventually get trapped in the dishwasher drain when it does you experienced this problem of your dishwasher not working properly.
Can a dishwasher drain hose be too long?
What do you do when the dishwasher drain hose is too long? There are two ways to fix a drain hose that is too long. An air gap can be installed, or the high loop method can be implemented. Although these two ways to fix a dishwasher drain hose that is too long are very different, they will both fix the problem.
Do dishwashers need a trap?
No! You don’t need to add an extra trap. In a dishwasher, water drains from the bottom and flows directly into the garbage disposer or septic line.
Do dishwashers have built in air gaps?
Dishwashers require a way to funnel in clean water and drain out dirty water. A dishwasher air gap is a component that is installed in between the drain hose of a dishwasher and a sink drain or garbage disposal.
