What does OBD-II fault code P0405 mean? OBD-II Code P0405 is defined as a Exhaust Gas Recirculation Sensor A Circuit Low. NOx gases, which are a leading cause of acid rain and in some people, respiratory problems, are formed when the engine combustion temperatures become too high (2500° F).

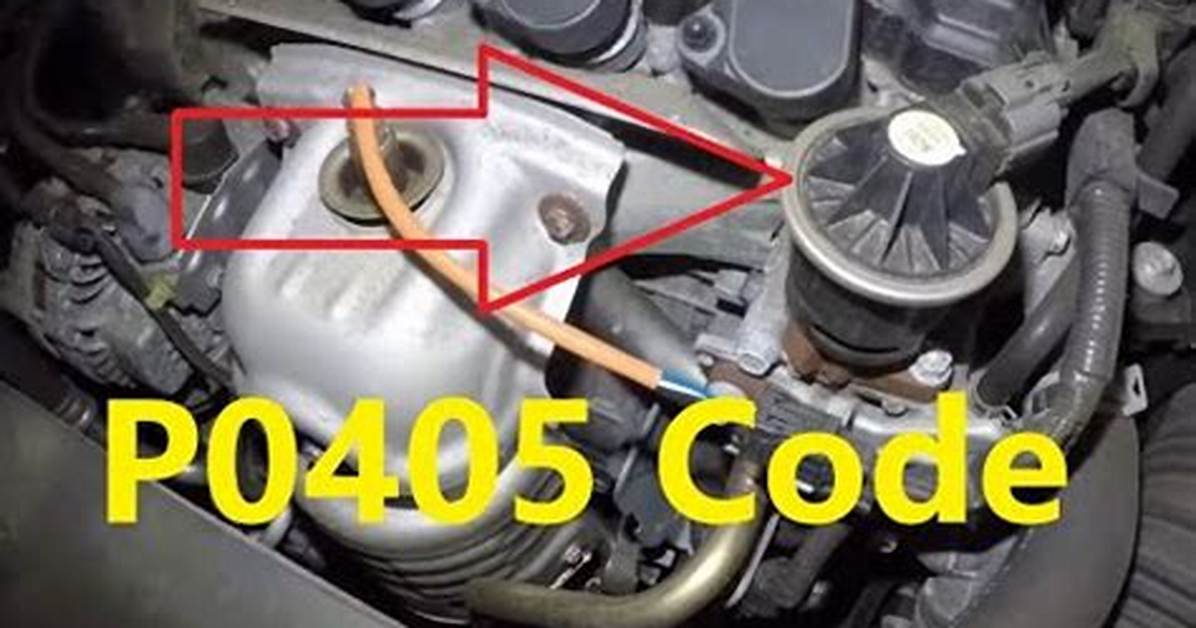

Where is EGR sensor A?
Where are these sensors located? Mechanical EGR valve position sensors are mounted on the top of the EGR valve. EGR pressure sensors will be located close to the EGR valve as the exhaust gas hose must be connected to the sensor as well as the valve.
What causes low EGR flow?
A failed sensor (e.g., differential pressure sensor, manifold absolute pressure sensor, etc.) Inadequate vacuum supply to the EGR valve. Circuit problems, such as damaged wiring and loose connections. Issues with the PCM, such as software in need of an update.
How do I know if my DPFE sensor is bad?
A faulty DPFE sensor can cause several problems:
increased emissions.rough idle.hesitation.decreased engine power.decreased fuel efficiency.failed emissions.check engine light on.
What is exhaust gas recirculation sensor A circuit high?
What is this? The P0406 code is the result of the exhaust gas circulation (EGR) sensor A having a high circuit voltage. This code is set when the ECM identifies the EGR voltage is higher than the specified range, thus triggering the check engine light to illuminate on the vehicle dashboard.
What does EGR vacuum solenoid do?
When a vehicle’s combustion temperature rises above 2500 degrees, the EGR valve opens and the vacuum draws in exhaust to help balance out harmful emissions. The EGR solenoid controls the vacuum process through the valve and if it malfunctions, major problems can develop.
What does EGR stand for?
Exhaust gas recirculation (EGR) is an emission control technology allowing significant NOx emission reductions from most types of diesel engines: from light-duty engines through medium- and heavy-duty engine applications right up to low-speed, two-stroke marine engines.
What is code P0404?
What Does Code P0404 Mean? P0404 definition: Exhaust Gas Recirculation Circuit Range/Performance. Issue Severity: MODERATE Extended driving with this code may cause internal engine damage.
How much does it cost to replace the EGR sensor?
The average cost for EGR valve position sensor replacement is between $110 and $143. Labor costs are estimated between $57 and $72 while parts are priced between $53 and $71. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location.
What sensors control EGR?
Some common sensors used for EGR control include:
Temperature Sensors. Intake manifold and EGR temperature can be measured with commonly available temperature sensors. Pressure Sensors. Flow Sensors. Position Sensors. Gas Composition Sensors.
What can trigger an EGR code?
Restricted or clogged EGR tubes. A clogged catalytic converter. Carbon buildup on the EGR temperature sensor. Faulty or lack of vacuum supply to the EGR.
Can an exhaust leak cause EGR code?
Registered. The egr is exhaust gas recirculation. It is related to the exhaust. If the exhaust has a big enough drop in pressure it may not introduce enough flow back to the intake track and cause a p0401.
Can you drive with a bad DPFE sensor?
You shouldn’t drive with a faulty DPFE sensor. If you are noticing a rough idle or a lack of engine power, it’s best to replace the DPFE sensor and EGR valve. Leaving the car with a faulty EGR system only causes trouble passing emissions tests and leads to further air pollution.
Can you clean a DPF pressure sensor?
A DPF pressure sensor is vital to the longevity of the DPF, and if the DPF becomes completely obstructed, the regeneration process will not fix it. It will need to either be removed and professionally cleaned or replaced, both options on average costing thousands of dollars.
What happens when a DPFE sensor goes bad?
When a DPFE sensor begins to fail, it provides the PCM with bad/inaccurate data. This is because it is less sensitive and the PCM thinks less recirculated gas is being burned than is actually so.
