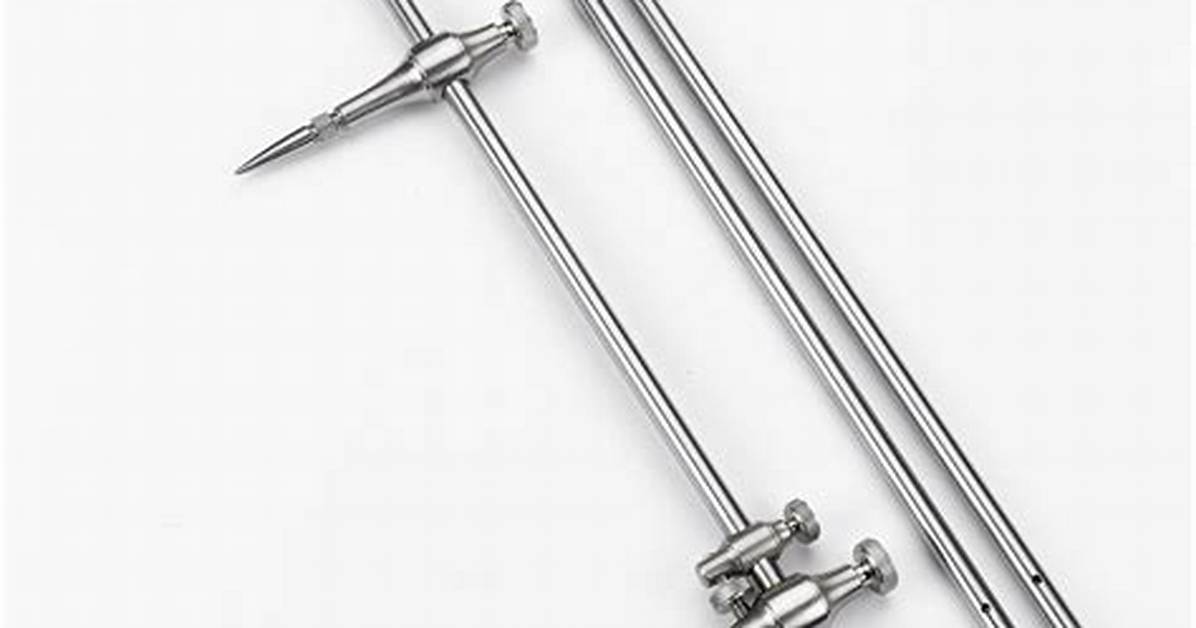

A beam compass is an instrument used for drawing larger circles or curvatures larger than those possible with the small compass sets. A scaled beam is required to carry the two trammels found inside the small casement.
Which is a form of beam compass?
Trammels or trammel points are the sockets or cursors that, together with the beam, make up a beam compass. Their relatively small size makes them easy to store or transport.
What are the types of compass in drawing?
Types of Drawing Compasses
Beam Compass. A beam compass is made of brass of wooden beam, and it is used for drawing circles that are larger than those made by regular compass.Scribe Compass. This type of compasses is the most simple by form. Loose Leg Divider. Proportional Compass.
What is a maths compass called?
Geometric Tool – Compass
The distance between the pencil and the pointer is adjustable. It is used to trace arcs, circles and angles. It is also used to mark equal lengths.
What is bow compass?
Definition of bow compass
: a small pair of compasses one leg of which carries a pencil, pen, or point, its legs being connected by a bow-shaped spring instead of by a joint.
What is divider and compass?
Technically, a compass is a drafting instrument that has one pen or pencil point and one sharp point that is positioned at the centre of the circle to be described, while a divider, on the other hand, has two sharp points, one for the centre and the other for scribing or marking.
What is a divider tool?
divider, instrument for measuring, transferring, or marking off distances, consisting of two straight adjustable legs hinged together and ending in sharp points.
How do you use tramel?
Trammel heads enable you to do this very easily.
Step 1 – Draw line. Draw a line onto your workpiece.Step 2 – Install pencil or metal point into trammel heads. Install either a pencil or a metal point into each of the trammel heads.Step 3 – Assemble beam compass. Step 4 – Draw an arc. Step 5 – Mark off increments.
What is a trammel set?
A trammel point set is used for transferring measurements, scribing arcs and laying out circles that are too big for a conventional compass or divider. A precision trammel set includes two scriber points and two pencil points.
Which compass is used to draw small circles?
The spring compass is used to draw circles and small arcs of 25 mm radii.
What’s the best drawing compass?
The Best Drafting Compasses for Precise Measurements
Staedtler Comfort Compass. For precision, ease of use, and flexibility, this German brand’s compass is the best all-around option. Mr. Pen Professional Compass. Alvin Introductory Bow Compass. Offidea Woodworking Compass. Rotape Tape Compass.
What is drop compass?
The drop compass only has one pivoting arm which holds the writing instrument, while the other is fixed in position. The compass is adjusted using a screw arrangement similar to the bow compass. .construction with tarnishresistant chrome plated steel parts. For rapid, precise drawing of circles up to 1 inch in diameter.
What is the pointy part of a compass called?
A compass rose, sometimes called a wind rose, rose of the winds or compass star, is a figure on a compass, map, nautical chart, or monument used to display the orientation of the cardinal directions (north, east, south, and west) and their intermediate points.
What is the math tool that draws circles?
A compass, more accurately known as a pair of compasses, is a technical drawing instrument that can be used for inscribing circles or arcs. As dividers, it can also be used as a tool to step out distances, in particular, on maps. Compasses can be used for mathematics, drafting, navigation and other purposes.
What is bow divider?
noun. a bow compass, each leg of which terminates in a needle, used to transfer measurements from one area of a drawing to another.
Which tool is used to draw circles and arcs?
A compass is essentially a divider in which one of the points has been replaced by a pencil or other marking device. The compass is useful for scribing circles or arcs of circles; it usually includes a scale to indicate the radius of the circle being…
How do you use a lengthening bar?
Use of Lengthening Bar is used to draw circles and finely adjust the angle of the leg it draw parallel lines and vertical vintage line drawing or engraving illustration.
