To summarize the last 8 comments: There is nothing wrong with having 4 15amp circuits in a sub-panel that has a 30 amp main breaker. You can use max 15 amp on any one circuit, and max 30 amp all combined.

Can I run a sub panel off a 30 amp breaker?

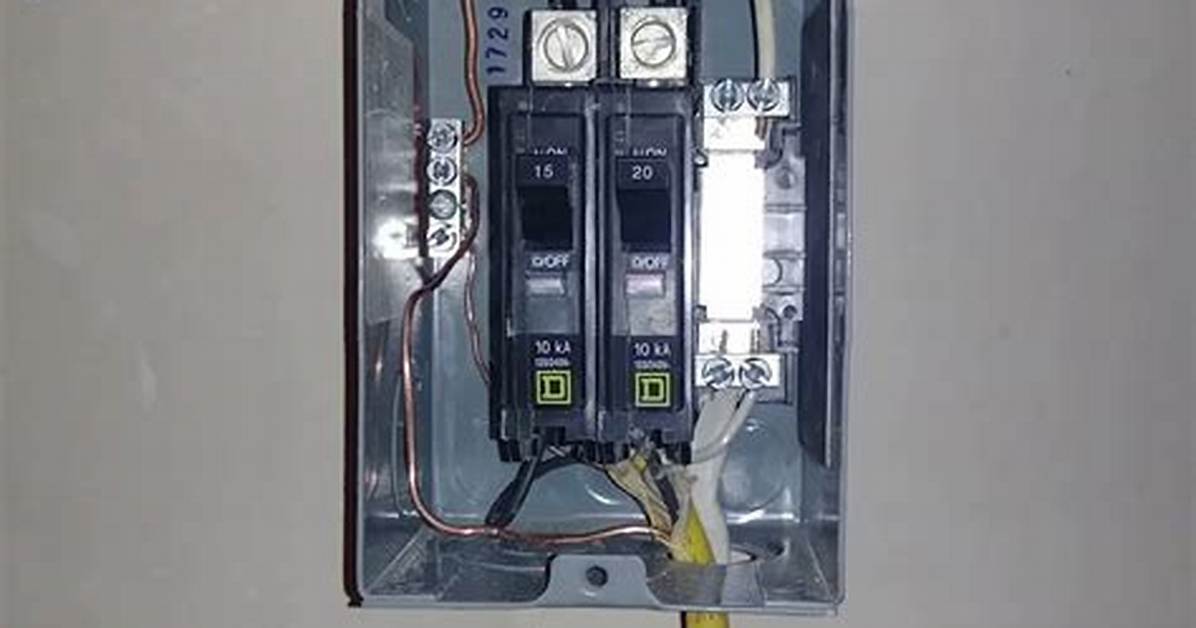

The amount of current that is required for the connected loads can only be supported by a 30 Amp sub-panel. The maximum quantity of branch circuits can be determined with a load calculation. Two 15amp breakers or one 15amp and one 20amp can be used on a 30amp circuit.

What size wire is needed for 30 amp service?

For a maximum of 30 amps, you’ll need a wire gauge of 10. The most common household item that requires a 30 amp circuit is a central air conditioner. Often, people living in RVs use 30, and sometimes 50, amp systems to run all the appliances in the vehicle.

Does a subpanel need a ground rod?

Yes, any sub panel outside of the main building requires it’s own ground rod and a ground wire back to the main building. And yes, a sub panel in the same building as the main does not need a ground rod – only the ground wire.

Does a sub panel need a main breaker?

The subpanel may be equipped with a main breaker to allow for power interruption without having to go back to the main panel, but it is not required to have a main shutoff circuit breaker, since the feeder breaker back in the main panel serves this function.

What size breaker do I need for a subpanel?

Based on your question, since you will be having a subpanel, you want the breaker feeding the subpanel to be sized for the subpanel or slightly smaller. So if you purchase and install a 200A subpanel, then the breaker should be 200A. If you use a 125A subpanel, then use a 125A breaker.

How many breakers can you put in a subpanel?

The subpanel will contain about four to twelve breaker slots. It’s supplied with a 240V circuit breaker from the main panel. In this case, the main panel is referred to as the feeder breaker. However, a 200amp subpanel can be connected to a 200amp feeder panel as long as the load is 160amps or less.

How far can you run 10-gauge wire for 30 amps?

10-gauge wire can accommodate a 30-amp breaker until you reach 150 feet. At 150 feet or more, you should get 8AWG or 6AWG wire.

HOW FAR CAN 8-gauge wire carry 30 amps?

You can use the #8 AWG wire for sub panel 50 feet, 100 feet, and even 150 feet away. If, however, the sub panel is 200 feet away, you have to boost the amps by 40% to counter the voltage drop.

What size wire do I need for 30 amps at 200 feet?

A 4 AWG wire is ideal for conducting 30 amps of current over 200 feet.

Will a 12 2 wire carry 30 amps?

Yes, based on the National Electric Code or NEC, you can use 12-2 AWG cables for THHN or THWN-rated wires. These cables are made for general purposes and can hold up to 194 degrees without taking any damage. It simply means these wires can withstand the heat temperature drawn by a 30 amp circuit breaker.

Can you use 8-gauge wire on a 30 amp breaker?

Can You Use 8-Gauge Wire On A 20,30,40,50 Amp Breaker? You can use 8-gauge wire on a 20,30,40 and 50-amp breaker. It will only be a problem if it exceeds 55 Amps.

Can I replace a 30 amp breaker with a 20 amp breaker?

The answer is, “No, do not put a 30 Amp breaker in place of a 20 Amp breaker because the wiring is most likely’sized’ for the 20 Amp load and -may- overheat if a 30 Amp load is used with wiring sized for a 20 Amp load.”

Why do you not bond a sub-panel?

Corrosion can happen because of improper subpanel bonding as well. This is because the excessive electrical currents (coming from the hot, neutral, and ground wires) can accelerate the rate at which metal pipes or buildings start to erode.

Does a subpanel in a detached garage need a ground rod?

A detached building with a subpanel needs its own ground rod, regardless of if there are three wires or four wires feeding it.

Why do you separate the ground and neutral in a sub-panel?

With ground and neutral bonded, current can travel on both ground and neutral back to the main panel. If the load becomes unbalanced and ground and neutral are bonded, the current will flow through anything bonded to the sub-panel (enclosure, ground wire, piping, etc.) and back to the main panel. Obvious shock hazard!
