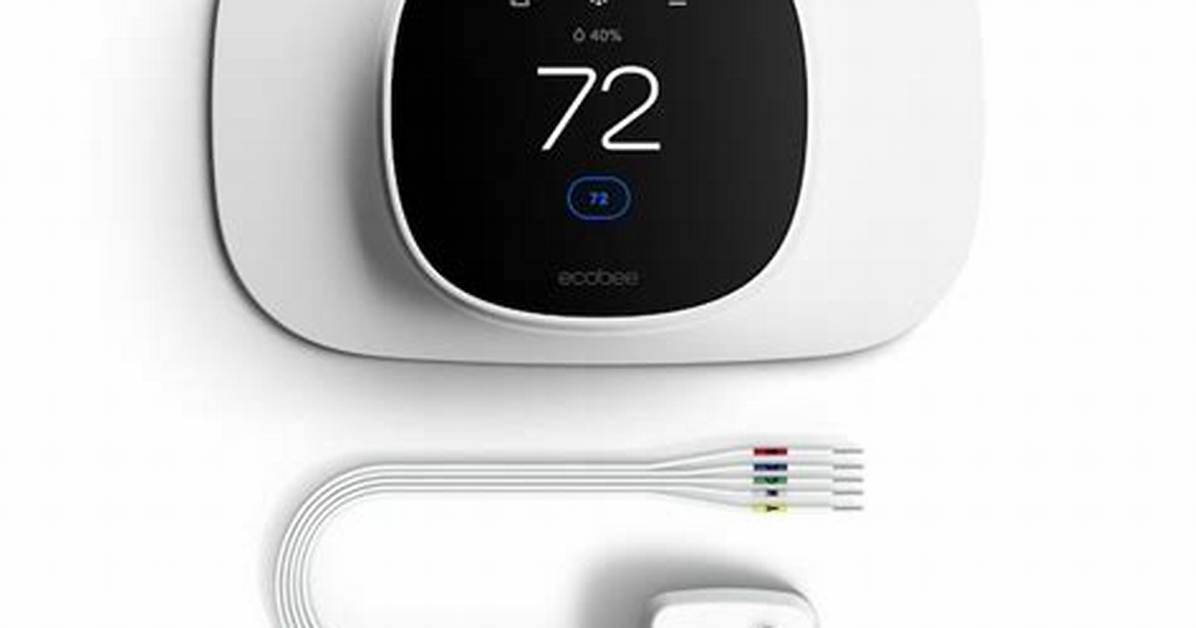

The Ecobee Power Extender Kit works by connecting to your home’s existing thermostat wires to create a complete circuit; this provides continuous 24-volt AC power to your thermostat for homes that don’t have a C wire.
When installing the power extender kit what wires are connected at the ecobee?
Connect the four wires into the ecobee wall mount as follows: R wire -> Rc or Rh terminal, G wire -> C terminal, Y wire -> PEK terminal, and W wire -> W1 terminal. Snap the ecobee unit into place.
Can you use ecobee without C wire?
Even though it comes with an adapter for missing c-wires, ecobee is what we’d pick even for systems with a c-wire. If you’ve got a 24v HVAC system but no C-wire, check out the ecobee product line. Every ecobee ships with an adapter that you can install yourself at your furnace to make up for a missing C-wire.
Does ecobee work without electricity?
The smart Wi-Fi thermostats by ecobee, for example, operate as standalone units and the temporary loss of power or internet service should not affect your HVAC equipment. Honeywell’s family of Lyric thermostats [Broken URL Removed] work the same way.
What color is the C-wire?
Blue wires are also called “C” wires because they are the Common wire. C wires are necessary for any “smart” thermostat that needs to be connected to a power source 24/7, regardless of your heat pump type.
Does ecobee need a jumper?
Note: Do not jumper Rc or Rh, ecobee3 does this automatically. R can go into either Rc or Rh terminals on your ecobee3.
What is the C-wire on a thermostat?
C-wire is an abbreviation for “common wire,” although it is not so common as you may expect. By closing the circuit, it delivers constant 24-volt power to your thermostat.
Does ecobee work without wifi?
The short answer is yes. Even without a Wi-Fi connection, your ecobee will still function as a traditional thermostat; it will engage your equipment as needed and maintain your comfort set points.
Can two ecobee work together?
How do I Sync Two Ecobee Thermostats? Many people ask if it possible to sync two Ecobee thermostats. According to the developers, yes, it is possible to sync multiple Ecobee devices to each other. All Ecobee devices are interconnected and they are compatible with each other.
Can ecobee work with 2 wire?
Am I compatible with ecobee? ecobee thermostats require a C (common) wire to power on. If your current thermostat uses only two wires (R and W, or T and T), there are a few installation options available, depending on your application.
Is RC wire same as C wire?
Typically, the wires that provide the power (often called the “hot” wires) are labeled Rc (cooling) and Rh (heating). They provide a source of 24V power coming from the HVAC control board. Sometimes they are separate wires and require separate connections. Other times they are the same wire.
What is Y wire on thermostat?
Y – This is the terminal for cooling or air conditioning and goes to the compressor relay. Typically a thermostat wire pull is made to the air handler on split systems and then this wire is spliced for the separate wire pull which is made to the condenser.
How do I install ecobee without a C wire?
Installing The Ecobee3 Without C Wire
Remove your existing Thermostat. Install the backplate of the Ecobee3 on the wall.Draw out the wires from the wall through the backplate.Connect the power wire, which is the red wire to the RC terminal.Connect the fan wire, which is the green wire to the G terminal.
What’s the difference between Ecobee3 Lite and Ecobee4?
The prime difference between Ecobee3 Lite vs Ecobee4 – is that Ecobee3 Lite is a budget model smart thermostat, whereas Ecobee4 is a full featured smart thermostat. Ecobee4 comes with builtin Amazon Alexa and an extra room sensor, but you’ve to purchase them separately (if you really need) for Ecobee3 Lite.
Does the ecobee 3 come with the Pek?
However, both the ecobee3 lite and ecobee4 come with a PEK included in the box for installation without a C wire.
Is Ecobee3 Lite worth it?
The $169 Ecobee3 Lite is a great midrange smart thermostat for those who don’t want—or don’t want to pay—for all of the features of the Ecobee3 or 4. makes the most sense for someone who has, say, a studio or one-bedroom apartment, .
