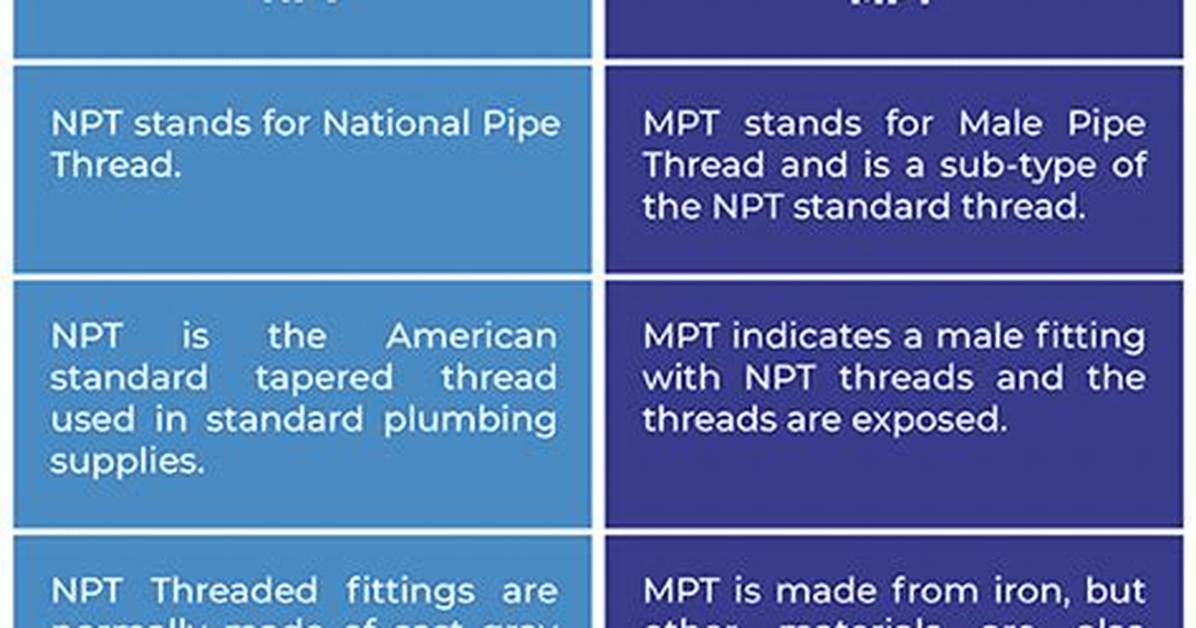

As previously mentioned, NPT indicates the defined standard from ANSI – but many people use MPT/MIP and FPT/FIP interchangeably. MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.
Does NPT fit MIP?
Yes, NPT (national pipe thread) has the same thread dimensions as an MIP (male iron pipe) and FIP (female iron pipe).
What is a MPT connection?
MPT Male Pipe Thread (interchangeable with NPT) National pipe thread connection to an FPT (Female Pipe Thread) or equivalently an FIP (Female Iron Pipe). MPT the threads are located on the outside of the pipe or fitting.
Is NPT and pipe thread the same?
NPT. NPT stands for National Pipe Thread and is an American standard thread. It may also be reffered to as MPT , MNPT or NPT (M) for male external threads and FPT, FNPT or NPT(F) for female interal threads. A thread sealant must always be used to achieve a leak free seal (except for NPTF).
Are MIP threads tapered?
Some say MIP stands for Male Iron Pipe. Male Pipe Thread can be called the same pipe size. MIP and FIP are equivalent to Male and Female iron pipes. A straight, not tapered, thread is sometimesdesignated by the terms NPS and NPSM.
What does MIP stand for in plumbing?
M.I.P.: Male Iron Pipe. Describes an external pipe thread end connection, typically threaded into a F.I.P. end connection.
What is a MIP thread?
MIP stands for Male Iron Pipe that refers to heavy-duty-grade metal pipe systems. A MIP fitting is a metal threaded-piping fitting that can be used with a FIP (female iron pipe) fitting in heavy-duty piping systems for both residential and industrial uses.
What is FIP vs MIP?
FIP means Female Iron Pipe. MIP is Male Iron Pipe. As the Pure Water Gazette points out, sometimes FIP is called FPT or Female Pipe Thread. And MIP is called MPT or Male Pipe Thread.
What is an MIP adapter?
An MIP fitting is one of two components in heavy-duty, threaded-piping connections. MIP typically stands for Male Iron Pipe (it might also refer to other building materials such as copper or steel). The other component is the FIP, which stands for Female Iron Pipe.
Are PVC threads NPT?
1PVC.com – PVC Information. FPT (or FNPT) is where the threads are on the inside of a fitting. This allows a MPT, or Male Pipe Thread part to screw into the female piece. All of our FPT parts are in NPT, National Pipe Thread, which is the type of threading used in the USA.
What is NPT connection?
NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.
Do NPT threads need Teflon tape?
NPT threads are designed to be used with a sealing compound such as Teflon tape to create a leak-free seal, whereas NPTF threads form a mechanical seal by crushing the entire thread form. If NPT is used without a sealing compound then there can be leakages or other unpleasant issues.
What are the three basic types of threads?
There are three standard thread series in the Unified screw thread system that are highly important for fasteners: UNC (coarse), UNF (fine), and 8-UN (8 thread).
Does Europe use NPT?
BSP and NPT threads have more to do with where than what, which is an important distinction. Where NPT is prevalent in the U.S. and Canada, BSP is the primary standard in the UK, Europe, Asia, Australia, New Zealand, South Africa and many other countries.
Are compression fittings NPT?
The fittings we sell may have compression or National Pipe Thread tapered ends (NPT). Compression ends are made for a tube which has a specific outside diameter (OD). For example, a ¼” compression fitting is designed to connect a section of tubing which has an OD of ¼”.
Is NPT a tapered thread?
The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT. NPT has a tapered male and female thread which seals with Teflon tape or jointing compound.
What thread is a garden hose?
The US standard was defined by NFPA 1963, “Standard for Fire Hose Connections”, then later by ANSI-ASME B1. 20.7, which specifies 1+1⁄16 inches (27 mm) diameter straight (non-tapered) thread with a pitch of 11.5 threads per inch (TPI).
