Design Standard: MDF (Main Distribution Frame) Room – Primary voice/data network location. IDF (Intermediate Distribution Frame) Room- Secondary voice/data network location. An IDF room is required if the installation of station cabling exceeds a distance of 300′ from MDF room.
How does an IDF connect to the MDF?

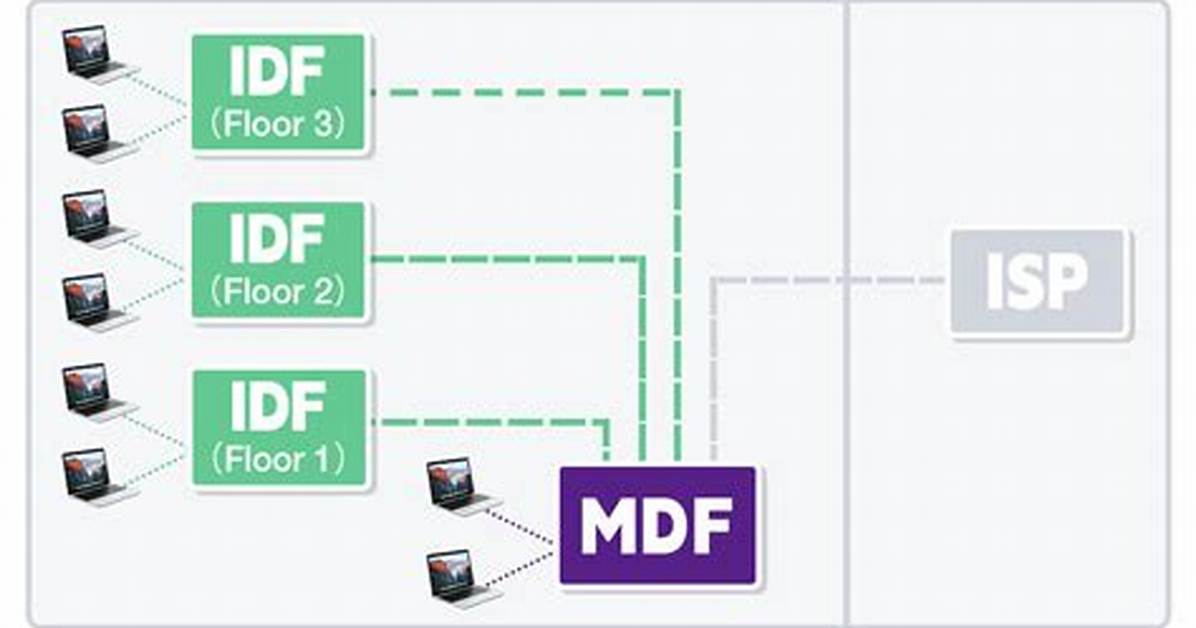

All intermediate distribution facilities (IDF) are typically cabled directly back to the MDF using fiber cables. The MDF is positioned in the same location where core switching, routing, servers and other devices are located.
What is the IDF room?
IDF. Intermediate Distribution Frame, a room that contains UPS power, cooling and a cable rack that interconnects and manages the telecommunications/internet wiring between an MDF and workstation devices.
What does IDF mean in a building?
An intermediate distribution frame, or IDF closet, is a cable rack in a central office or customer premises that cross connects and manages the IT or telecommunications cabling between a main distribution frame (MDF) and remote workstation devices.
What devices are in the IDF?
interface device (IDF)
The personal computer (desktop or notebook, abundant memory and external storage, keyboard, large display)Handheld (much smaller, still has a keyboard)
What is IDF equipment?
An Intermediate Distribution Frame (IDF) is a free-standing or wall mounted rack for wiring or cable from a Main Distribution Frame (MDF) – also called the Combined Distribution Frame (CDF) – and leading to individual cables for each piece of equipment such as workstations, personal computers and other end-user devices
What is IDF MDF documentation?
An Intermediate Distribution Frame (IDF) is a free-standing or wall mounted rack for wiring or cable from a MDF and leading to individual cables for each piece of equipment such as workstations, personal computers and other end-user devices.
What type of cable connects an IDF to the MDF?
Fiber optic cabling and fiber-ready enclosures, including rack trays and wall-boxes, are often used for MDF and IDF wiring because they support long cable distances and very fast network speeds.
What is MDF in telephone exchange?
A Main Distribution Frame (MDF) is a signal distribution frame or cable rack used in telephony to interconnect and manage telecommunication wiring between itself and any number of intermediate distribution frames and cabling from the telephony network it supports.
Do IDF rooms need to be fire rated?
If the IDF rooms were built after 3/11/2003, larger than 100 square feet, and if combustibles are stored inside, then the walls must be 1-hour rated and extend from the floor to the deck above. The door to the room would have to be ¾ hour fire-rated, self-closing, and positive latching.
What is a MDF room?
Main Distribution Frame Room or “MDF Room” means a room within a Building or building development which is used to house the Main Distribution Frame and associated Plant, or its equivalent; Sample 1.
What devices are in the MDF?
The MDF usually holds telephone exchange protective devices including heat coils, and functions as a test point between a line and the exchange equipment.
What is MDF switch?
A main distribution frame (MDF) is the primary hub or demarcation point that interconnects private or public IT and telecommunication lines coming into a building to an internal network via any number of intermediate distribution frames (IDFs).
