A CDI or capacitor discharge ignition that is found on most bikes is linked to the ignition where it mainly stores the electrical charge. It is responsible for increasing the spark’s power in the spark plug. CDI box can be found only on vehicles that are based on the gasoline engine.
Is CDI and ECU the same?
When there is no triggering signal the charging circuit is re-connected to charge the capacitor. The CDI referenced in some models of Polaris is controlled by the ECU (electronic control unit). The ECU is an electronic switch which stops the flow of current in an inductive discharge ignition system.
How can I start my bike without CDI?
Is there a way to start a bike without the CDI unit? Yes, you can with a mechanical unit. But customizing one will take lots of time and effort. It might be even more costly to custom build one as the CDI on the market shelf is mass produced one hence efficiently produced.
What is a racing CDI?
The “CDI” regulates your engine timing and also controls the spark intensity of your ignition system. A high performance “CDI” will advance the engine timing allowing for higher low rpm torque and higher top end speeds. The installation process is simple and the results are instantaneous.
How do I know if CDI is working?
If you are using a digital multimeter then you should hear a beeping sound. Measure for continuity between all the ground and the various other points. If your cdi is working well, you should not hear any sounds. If you do however hear any beeping sound as you are testing, then you cdi is faulty.
How do you know if your CDI is bad?
The CDI is not easy to diagnose because the observable symptoms of a faulty CDI box can lead to different directions. Sometimes, a bad CDI does not cause sparks at all. Again, when a CDI box is about to go bad, it can lead to misfires, issues with starting, rough running or even stall the motor.
Can a CDI box cause weak spark?
The COIL can give weak spark in spite of the spark being triggered by a CDI box. If you have an anemic yellowy spark from the plug then I would suggest to check that all of the connections are clean and tight.
Can you bypass a CDI box?
It is possible to bypass a CDI module on an ATV, but it should be only a temporary action.
Are CDI boxes universal?
Because ignition characteristics (particularly timing) vary widely across vehicle models, there’s no one CDI box that can cover them all. The CDI must be matched to the engine that’s being worked on.
What is CDI motorcycle?
CDI Ignition System Motorcycle
When it comes to ignition systems, you’ll commonly hear of what’s called a CDI box, or capacitor discharge ignition box. Essentially, a CDI box controls a motorcycle’s ignition system by starting the ignition and combustion process.
What is bike TCI?
TCI (Transistor Controlled Igniter) System
When the transistor is ON, current passes through the primary side of the ignition coil (coil hereinafter) from the battery to store the energy.
Can you start a motorcycle with a screwdriver?
You need a few tools to start the hotwiring process. Start by gathering the tools first. In some cases, there may be no need for tools except a wire. Most times, you will require electrical tape, a flathead screwdriver, and a diagram of the bike’s wiring system.
Does changing CDI increase speed?
So, if your mechanic has a “better” CDI, it either doesn’t actively limit the max. RPM, or it has a better timing at higher RPM, allowing more power output and hence top speed.
What is a CDI for dirt bike?
A CDI box, or capacitor discharge ignition (or thyristor ignition) box, is typical on motorcycles, including most 3 wheel motorcycle models, certain cars, and small motors like those in lawnmowers. Outboard motors also often use CDI boxes, with some models of boats including CDI in their names.
What is the best CDI box?
The Dynatek ARC 2 CDI boxes are among the best CDI rev boxes available. The lightest, most compact CDI box on the market, the ARC 2 comes with simplified plug-in harnesses for easy installation. Its 189mJ to the coil per spark is the highest of any rev box.
Is my CDI AC or DC?

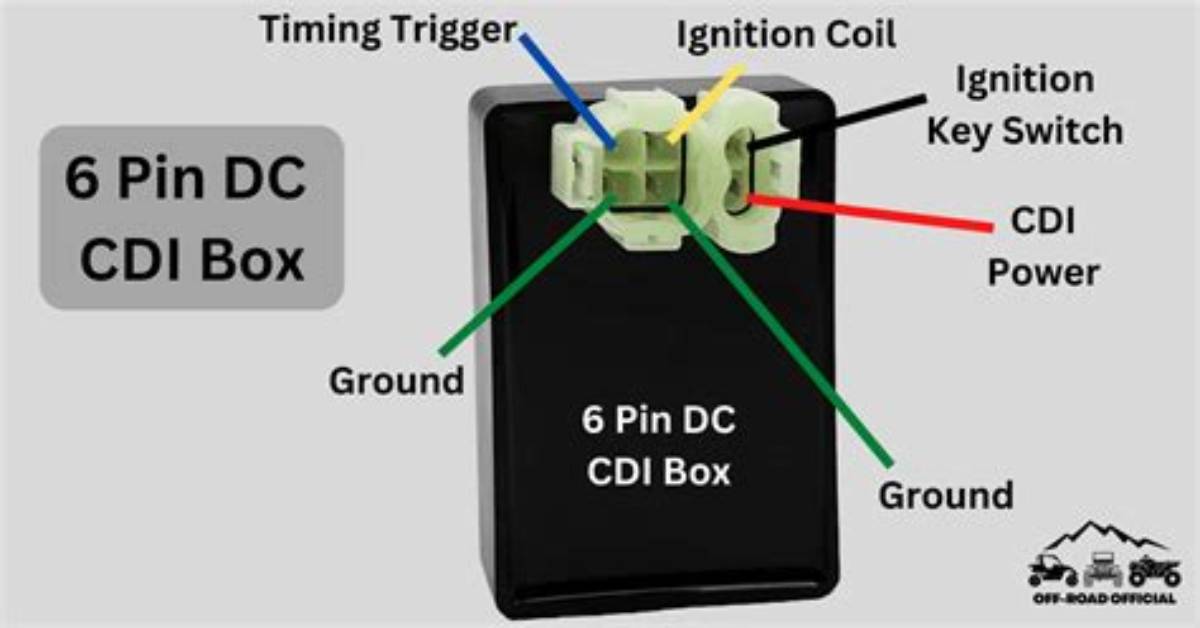

Your CDI has two plugs, a 4-pin and a 2-pin. The 4-pin side may have 3 or 4 wires connected to it (both AC and DC versions). If the 2-pin connector has only 1 wire going to it, it’s a DC CDI. If there are 2 wires attached to the 2-pin connector, then it’s an AC CDI.
What’s inside a CDI box?
The basic CDI system is a trigger mechanism, coils, and a box, often black, with capacitors and other circuitry inside. The trigger tells the box to fire, the box determines when to fire which coil with the capacitors, and zap goes the spark plug, ad infinitum.
