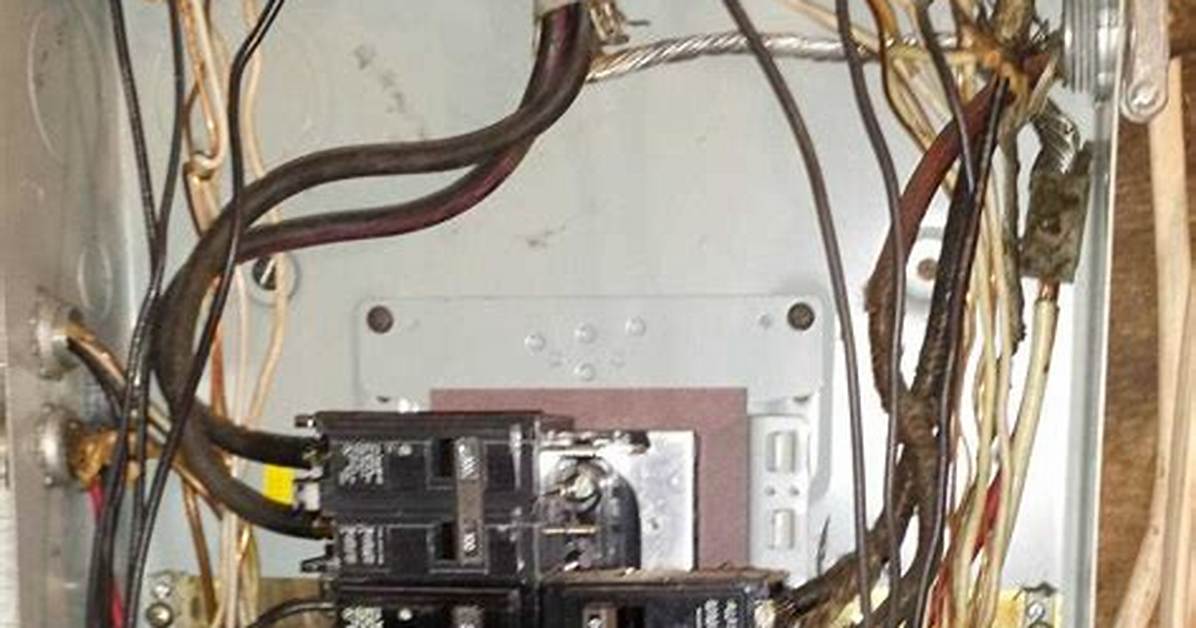

Typical 100-amp panels have 20 circuits, meaning they can handle 20 full-sized breakers. 20/24 panels can hold 16 full-sized and 4 twin breakers (24 circuits in total). The number of breakers can max out to 30-42, too, depending on the design of your 100-amp pane.
How many amps can you put on a 100 amp panel?
For example, a 100-amp service panel could have circuit breakers that add up to more than 200 amps. This is normal.
What is the difference between a 100 amp and 200 amp panel?
What’s the Difference Between 100 AMP and 200 AMP? 100 AMP panels are smaller than 200 AMP panels. Because 200 AMP panels are larger, they can fit more circuits and have more room to expand. 200 AMP panels are also slightly more expensive, costing an average of $100 to $200 more than a 100 AMP panel.
What does a 100 amp service mean?
100-amp service provides enough power for a small home without electric heating. This can supply an electric range and dryer, plus general lighting and receptacle outlets. 200-amp service is the current standard for new homes and updated service panels.
How many appliances can a 100 amp panel handle?
100-amp service is generally large enough to power a small- to moderate-sized home’s general branch circuits, plus one or two electric appliances, such as a range, water heater, or clothes dryer. This service may be sufficient for a home under 2,500 square feet if the heating appliances run on gas.
Can central air run on 100 amp service?
A heavy upgrade from a 100-amp electrical service is often recommended when installing central air, and it can be a good idea, even if not absolutely necessary. Many houses with 100-amp services have the service loaded up with 240-volt major appliances even before air conditioning is installed.
Can you feed a 100 amp sub panel with a 50 amp breaker?
It’s the same with subpanels: The “100A” is a maximum rating. Do not exceed 100A. However, you certainly should exceed your feed-breaker size of 50A. Even if 50A panels existed, they would be very small in terms of numbers of spaces.
Do I have 100 or 200 amp service?
The meter base is the cabinet behind the actual round meter that your local power utility read your power usage from. This is the metal base behind the meter in the usually square or rectangle in shape. It will have nameplate data on it and it will be marked 100 amp, 200 amp etc.
Can you feed a 100 amp sub panel with a 60 amp breaker?
You can feed a 100 Amp panel with a 60 Amp breaker. Keep in mind that the sub panel needs to be rated above the breaker size.
Can you upgrade a 100 amp panel to 200 amp?
You cannot change a 100 amp panel to a 200 amp panel without upgrading the power service coming into the dwelling. The reason for this is a 200 amp service is much larger in wire size and price than 100 amps.
Do I need 200 or 400 amp service?
“200-amp service will handle the same load as 100-amp service, plus electric appliances and electric heating/cooling equipment” (in a small to medium-sized home). “400-amp service is recommended for large homes with all-electric appliances and electric heating/cooling equipment.
How much does it cost to upgrade from 100 amp to 200 amp?
Between $500 and $1,000, you can hire a pro to upgrade your 100- to 150-amp service to 200 amps. If additional work is minimal, such as upgrading old wiring, you can still come in under $1,000.
Should I upgrade my 100 amp service?
If there are no plans to add significant equipment to your home, if there is adequate room in your panel and if your main breaker does not occasionally trip, you are in good shape. Meaning, the 100 amp service is adequate for your home and there is no need to upgrade your service.
How much does it cost to install a 100 amp service?
Cost To Install 100 Amp Service
The average cost to install a new 100-amp service is $1,200 to $1,600, or between $850 and $1,100 if the service panel needs to be replaced. A 100-amp breaker box may be sufficient for households with minimal use of electricity, but most modern homes require 200 amps.
How many amps is a house outlet?
Most homes in the U.S. are wired with a combination of 15-amp and 20-amp, 120-volt circuits. Because 15-amp receptacles can be used with 20-amp circuits, most of the outlets you see in American homes are the standard 15-amp variety, with two slots and a U-shaped grounding hole.
How many amps does a TV use?
The average American TV is 50 inches and uses 0.95 amps at 120 volts. That works out to an average TV power consumption of 113 watts. In a given year, the average TV will use 142 kWh and cost a little over 17 dollars (assuming 5 hours of use per day).
How many amps does a fridge use?
Amperage for most household refrigerators, is anywhere from 3 to 5 if the voltage is 120. A 15 to 20 amp dedicated circuit is required because the in-rush amperage is much higher. The average amperage is lower because the compressor isn’t running all the time, this is often measured in kilowatt hours KWH.
What is a 400 amp service?
The term 400 amp service means the capacity of your home electric service. The capacity is actually measured by the amp. This also means that the current flows through the wire. So, in simple terms, the whole 400 amperage current flows through the wire and its maintenance is the 400 amp service.
