The National Electric Code requires that all fans 35 pounds and over must be supported with an outlet box or outlet box system that is listed for ceiling fan support. The manufacturer must have marked the outlet box system to indicate that it is acceptable for ceiling fan installations.
How do I know if my junction box is fan rated?
If the box was installed recently in accordance with National Electrical Code (NEC), the box should be labeled if it’s rated to support a ceiling fan. 314.27 Outlet Boxes.

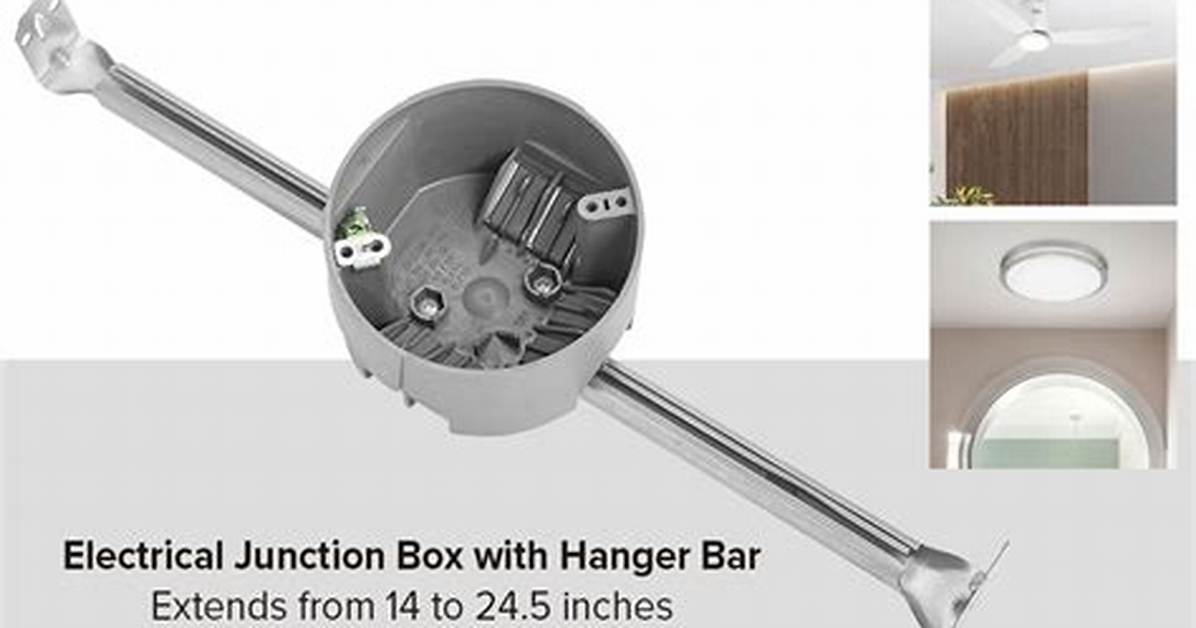

What kind of electrical box do I need for a ceiling fan?
Ceiling fan boxes must be UL-listed for ceiling fan mounting and marked “For Use With Ceiling Fans.” Do not use standard round or octagonal boxes for installing ceiling fans. Ceiling fan boxes require special fastening to withstand the dynamic loading of a rotating fan.
Can a plastic junction box hold a ceiling fan?
Electricians use both metal and plastic boxes, and the latter are preferred in some cases because they are inexpensive, easy to use and naturally insulated. They aren’t made for supporting much weight, however, and shouldn’t be used to support a ceiling fan.
Are electrical junction boxes legal?
Yes any concealed box is a code violation. All splices must be accessable. Now practically speaking if the splice is made properly with wire nuts and the cables properly clamped in the box, you can cover it without concern.
How much weight can a ceiling electrical box hold?
Weight limits: fans and fixtures are supported independent of outlet box. Mounting screws go through box and into joist. Box will support up to 70 lbs. for fans and 90 lbs.
Does ceiling fan box need to be flush with drywall?
The key takeaway here as far as installing electrical boxes is that, by setting them flush with the drywall surface, the possibility of arcing from the wires to the wall substrate is minimized, which reduces the risk of an electrical fire.
Can I install a ceiling fan where a light fixture is?
There’s really no problem in replacing an existing light fixture with a ceiling fan in terms of the electrical needs. But what you really have to be careful of is to make sure the electrical box that the light fixture is attached to will support the extra weight of the ceiling fan.
What is the difference between junction box and utility box?
A utility box can also be called an electrical box and it would be composed of switches, electrical sockets, and also fixtures. The major difference between a junction box and a utility box is that a junction box would house the electrical connections while the utility boxes are used to install switches, fixtures, etc.
When would you use a junction box?
You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.
Are plastic electrical boxes fire rated?
plastic boxes, also on single gang box? If you are discussing fire classification, most of Carlon’s blue nonmetallic outlet boxes, with the exception of old work boxes, are fire classified for two-hour fire rated walls or less.
How do you replace a junction box?
Use pliers to tighten the nuts on the connectors. Holding the junction box close to the wires, push the wires through the new connectors until the junction box is in the same location as the old junction box. Screw the new junction box in place. Tighten the connectors until the wires are snug in the junction box.
How do you ground a plastic junction box?
Because they are plastic, there is no need to attach a ground wire to it. Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box.
How much is the labor cost to install a ceiling fan?
The average cost of ceiling fan installation is $75 to $150 with most homeowners spending around $150 to $350 for both parts and labor. Hiring a handyman costs $50 to $80 per hour to install ceiling fan and typically takes 1.5 to 2 hours.
Can I mount ceiling fan directly to joist?
Yes, you can mount your ceiling fan directly to a joist.
