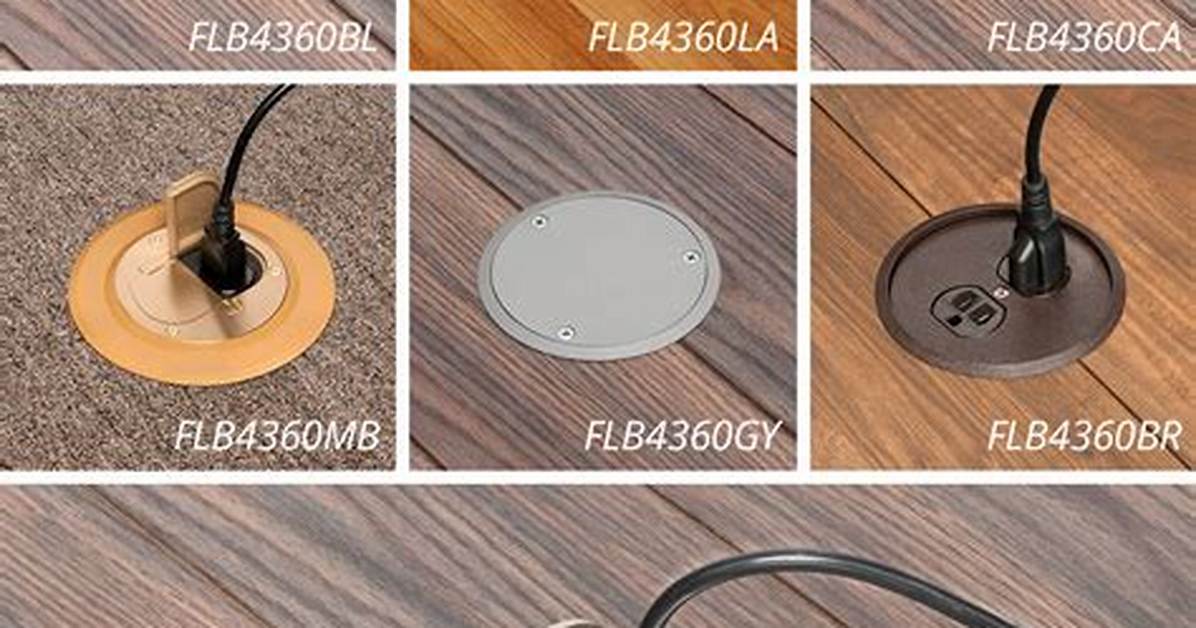

Also called a drop-in or a poke-through, a floor outlet has an incorporated mounting plate that is practically on the room’s surface level. Likewise, the outlet receptacle is even with the floor level or sunken a little below the surface, in which case, there is another plate that covers the socket when it is off.
Can you put an outlet in the floor?
The National Electrical Code requires floor outlets to be a part of an approved assembly consisting of a metal box, gasket seal, special receptacle and strong cover plate with a moisture-proof cover. You can’t just mount a regular wall outlet in the floor.
What is a floor outlet for?
Floor outlets are electrical outlets that are installed into a floor area rather than into a wall. Often, a floor outlet will be equipped with a metal plate to protect the outlet and wiring, along with a cover that prevents dust and other material from collecting in the outlet when the device is not in use.
Where should I put floor outlets?
Best Places To Put Electrical Outlets In The Living Room
Floor. If you have a Great Room where your end tables are in the middle of the room instead of near a wall, an outlet in the floor is useful for table lamps, or Christmas trees!Mantle. Behind the TV.
Are floor outlets code?
The NEC now requires floor receptacle outlets, based on open floor space, for meeting rooms that are at least 12 feet wide and have a floor area of at least 215 square feet. Additionally, the code requires at least one receptacle for each 215 square feet of floor space or major portion thereof.
How much does it cost to install a floor outlet?
Expect to pay around $125 to $175 to replace or install a standard outlet. The national average can run anywhere from $100 to $500 per outlet depending on the complexity of the job. Read on to learn more about the factors you’ll need to consider for your project.
Why do electricians install outlets upside down?
Electricians may position the outlet in an upside-down position so that you can quickly identify the switch-controlled receptacle. Since it stands out visually to most people right away – it provides convenience to the occupants to easily remember which outlet is switch controlled.
Do floor outlets need covers?
It’s important to cover an electrical floor outlet any time it’s not in use in order to avoid damaging the outlet itself or causing electrical problems. In fact, properly covering the electrical outlet in your floor may even prevent a fire.
Can you put a rug over a floor outlet?
If you are not going to use the floor outlet at all, covering it with a movable rug is OK. But you should never cover an outlet or junction box of any type (e.g., including if you removed the outlet, capped the wires and put on a blank plate) with any permanent flooring like wall-to-wall carpet.
Do floor outlets need to be GFCI?
Garages and accessory buildings: GFCI protection must be included on all receptacles in structures that have a floor located at or below grade level, not intended as habitable rooms and limited to storage areas, work areas, and areas of similar use.
How many outlets should be in a room?
According to US regulations, no single point measured along the floor line of the room walls should be more than 6 ft away from an electrical outlet. This means that a standard, 12 x 14 ft room needs at least 4 to 6 electrical outlets, depending on the wall space.
Can you put an outlet under a window?
Windows do not count as broken space unless the window is a ceiling to floor unit. When you are determining where the outlets must be according to code, you don’t consider a window panel a break when placing outlets. Therefore, outlets can be installed below a window.
How do you run power to the middle of a room?
Extension Cords and Power Strips
The easiest, least obtrusive way to handle cords for desks you position in the middle of a room is to run an extension cord from the nearest outlet to a power strip beneath your desk, which you can then use to power any devices on your desk.
How close does a floor outlet need to be to the wall?
Receptacles must be installed so that no point measured horizontally along the floor line in any wall space is more than 6 feet or 1.8 meters from an outlet in that space. Following the floor line from a doorway, fireplace or similar opening, the maximum distance to a receptacle is 6 feet (1.8 meters).
How many outlets are in a hallway?
Measuring from the centerline, the hallway’s length is 11 feet. Since a receptacle is required in hallways 10 feet (3.0 m) or more in length, at least one receptacle outlet must be installed. This subsection does not stipulate that a receptacle is required for every 10 feet of hall.
How do you open a floor outlet cover?
As others have said, they are hard to open the first time, but they do open. Make sure to use a normal size slot-head screwdriver and press it down deep into the crevice. Pry it open and close it several times to loosen it up. If necessary, you can use WD-40 or oil to help lubricate the spring-loaded pins.
