A union is a threaded fitting which allows the pipe work to be separated and reconnected without any horizontal movement in the pipe. It can be a standalone pipe fitting connecting two pieces of pipe, or an integral part of another fitting (such as a ball valve) which allows it to be separated.
What is the correct way to install a pipe union?
Thread the male half of the union nut onto the left-side pipe, and tighten it securely. Slip the ring nut portion of the union onto the right-side pipe with the threads facing outward. Thread on the other half of the union nut, and tighten it securely.
What is the difference between a pipe union and a coupling?
The basic difference between a coupling and a union is that coupling is for joining pipe to pipe or pipe to a swedge and the union is made for joining and disassemble a part of a piping system (a steam trap or control valve, etc) for maintenance or replacement.
What does a pipe union look like?

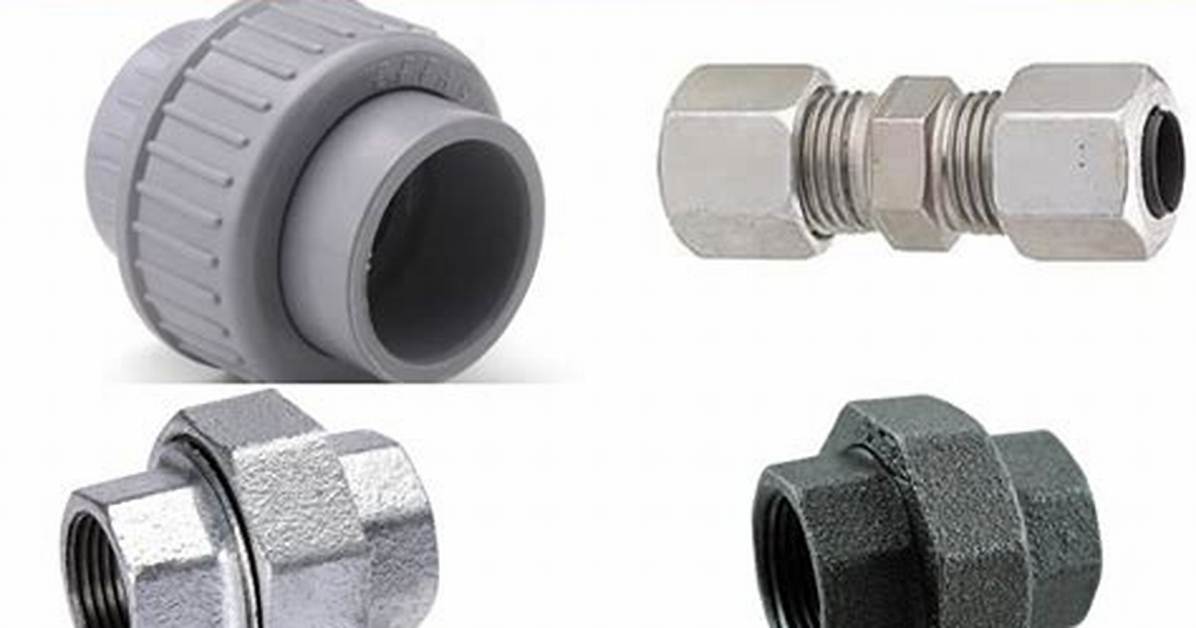

A pipe union consists of three parts – a nut, a female end and a male end. To make an effectively working pipe fitting, both the male and female ends are sealed together with the help of nuts. A female threaded fitting has threads on the inside, while in the male-threaded fitting, the threads are on the outside.
When would you use a union fitting?
It is used for joining two lengths of pipe together that are not locked in place and can be turned. A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned.
What is the difference between socket and union?
It is a pipe joint machined by round bar or steel ingots. There are two connection forms for unions, i.e. socket welding and threaded connection. The socket welding is to insert the steel pipe into the socket to get welded. Therefore, it is called “plug-in union”.
Do you use Teflon tape on unions?
Never need teflon on unions, the gasket does the sealing. Some people use A small amount of silicone grease but it is not necessary and could cause problems with the gasket sitting properly.
Does a pipe union have a flow direction?
Actually, pipe unions are designed to flow from the Female Nut towards the Male threaded half.
Are fittings and couplings the same?
Union Fittings – Unions are similar to couplings in that they connect two similar pipes. With pipe unions, a nut or threaded ring in the middle of the fitting is tightened to join two pipes. It can be easily removed by loosening the ring to disconnect the pipes, while a coupling must to be cut out to disconnect.
What is a union joint?
a detachable joint, formed by means of a union, that is used to connect the parts of a piping system to various tanks or machines. Besides a union, a union joint consists of a gasket, a locknut, and a reducer, such as an elbow or a coupling (Figure 1). The pipe to be connected is screwed into the reducer.
Are pipe unions interchangeable?
Union’s are not compatible. Unlike the pipe side, the mated side of a union is not standardized. Even if the threads are the same (as there are only so many available) the mating surface may not be.
What is the purpose of a union pipe?
Pipe Union is a type of fitting equipment designed in such a way to unite two pipes which can be detached without causing any deformation to the pipes. Any kind of small diameter piping connections requiring a positive seal and easy assembly as well as disassembly are made with the help of pipe union.
What is a union socket?
PVC unions and PVC pipe union connectors are pipe fittings designed to connect two pipes together without the use of a sealant or traditional glued coupling.
What is a half union fitting?
This ProLine lead-free fine thread flare half union is used to join 2 pipes often in air or vacuum lines. It can be connected and disconnected unlike soldered fittings. Flare unions are often used with flare nuts (sold separately) for extra security with gases and liquids.
