So do brake lines need to be double flared? Double flares are necessary for brake lines due to the high pressures inflicted on them by the hydraulic system. Single flared lines are only appropriate for low-pressure lines due to their tendency to crack or leak.
What is single flare and double flare?
Single-flared plugs have a groove in the plug to hold the o-ring in place. A double flared plug has a flared end on both sides of the cylindrical piece of jewelry. This piercing requires the hole to be big enough for the flare to fit through, which is usually larger than your gauge size.
What does a double flaring tool do?
OTC’s No. 4503 Double Flaring Kit is designed to make double or single flares in copper, aluminum, and brass tubing as well as soft steel brake line tubing. Chrome plated alloy steel swivel reduces friction and helps ensure a smooth, even flare.
Is it OK to single flare brake line?
1. Single Flares are only acceptable on low-pressure lines, but not acceptable for high-pressure brake systems. A single flare is just as it sounds, the line is flared out just once in a conical shape. Single flares are not acceptable for brake lines and tend to crack and leak quite easily.
Are fuel lines double flared?
Single flare is fine for lower pressure lines such as fuel and oil. High pressure such as brake and diesel fuel lines, double flare. You can’t fix “Stupid”, but you can make it bleed, scream and flop around on the floor.
Is double flaring necessary on steel tubing?
A double flare should be used on 5052-O and 6061-T aluminum alloy tubing for all sizes from 1/8 to 3/8 inch outside diameter. This is necessary to prevent cutting off the flare and failure of the tube assembly under operating pressures. Double flaring is not necessary on steel tubing.
What type of flare is best for brake lines?
The most common is the SAE flare. Typically found on all American and Asian cars, but the European style DIN flare is appearing everywhere now. Never use a single flare on automotive components. The SAE/double flare standard is remarkably tolerant of production variations, but the assemblies must be the same standard.
When can I wear double flared plugs?
Double flare plugs are meant for ears that have been at the same size for at least 3weeks. You want to make sure that your ears are fully healed from the last stretch. After 3 weeks your ears will have a little more elasticity. This will make it easier to get the double flare plugs into your ears.
What are the 2 types of flaring used in brake lines?

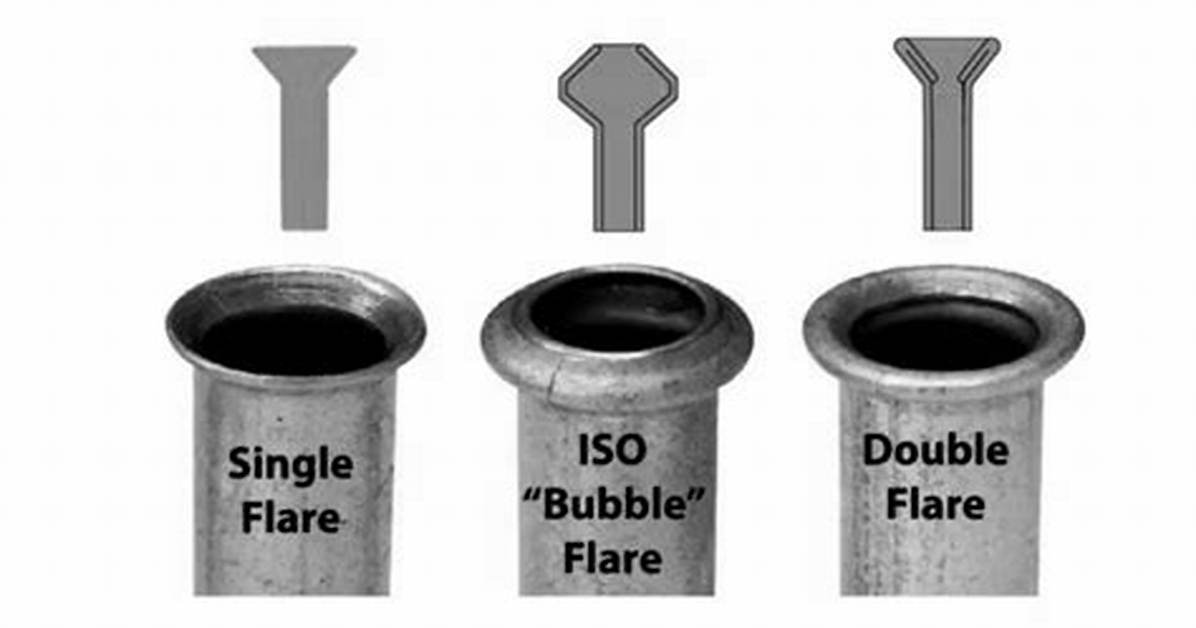

There are two main brake line flare types: double flare and bubble flare. The third one, single flare, is rarely used. SAE/Double flare: It appears like a funnel inserted into a tubing. This type also looks inverted and is usually at 45 degrees.
Can you double flare stainless steel brake lines?
The two most common falsehoods that I’m aware of are: You can’t double flare stainless, and stainless lines are more prone to leaking than standard steel lines. The first example is usually followed by the qualifier that with stainless you have to use a 37-degree flare and AN fittings.
Is double flare and inverted flare the same?
It’s called inverted because the adapters are female and the nuts on the lines are male. DOUBLE flare has nothing to do with the types of fittings or inverted or SAE. Double flare means you make a “double fold” with the tool. This folds the raw edge of the line in like a cuff on your pants to prevent it from splitting.
Can you splice steel brake lines?
Contrary to popular belief it is NOT illegal to make a new section of brake line and splice it into a non-rusted section of your old brake, as long as you use automotive grade SAE double/inverted flare, SAE “bubble” flare and DIN Single Mushroom flare unions and fittings.
Can you double flare aluminum tubing?
Aluminum tubing is very soft and malleable making it difficult to perform quality double flares. The 37 deg single flare can also be used on all 3 of the mentioned tubing types but requires that you use tubing sleeves and tube nuts to ensure a quality seal.
What is an inverted flare?
What’s inverted flare? Inverted Flare Hydraulic Fittings are widely used in hydraulic brake, power steering, fuel lines and transmission cooler lines. Inverted flare fittings are inexpensive and reusable. Inverted flare provides excellent vibration resistance. Seats and threads are internal and protected.
