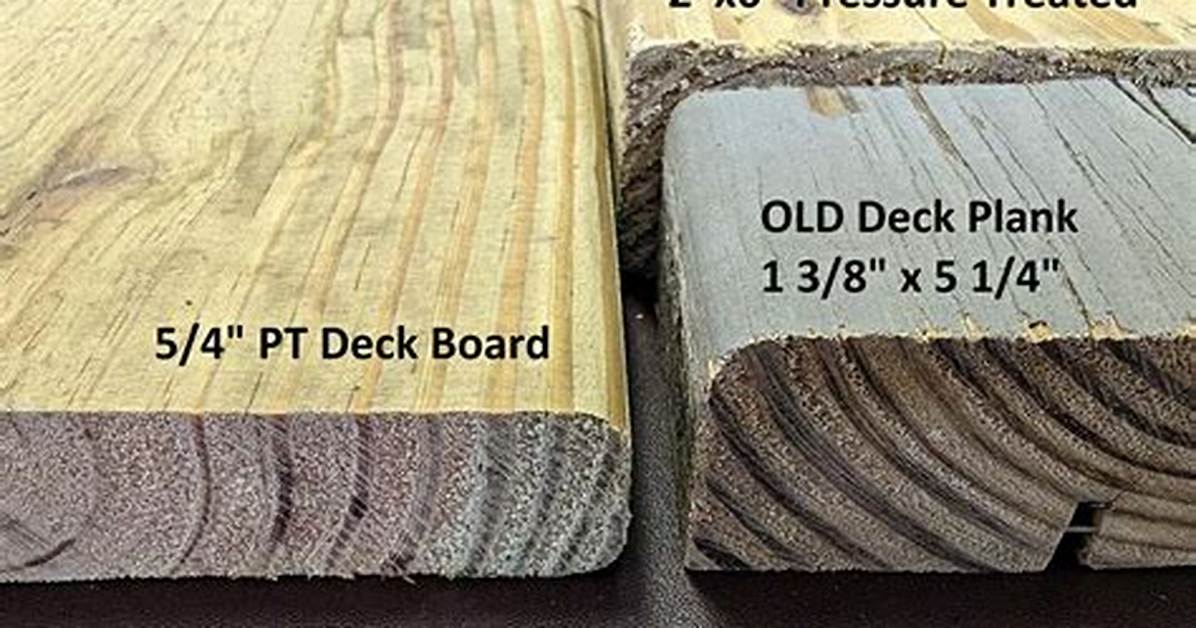

5/4 Decking Actual Dimensions 1″ x 5.5.”

Both being smaller than their names claim. If you use 5/4 decking, you are getting two-thirds of the board of a 2×6.

What is a 5 4 deck board?

Decking boards come in varying thicknesses that can be a bit confusing. There is a nominal thickness and then an actual thickness. The most popular thickness for decking boards in North America is a 5/4 thickness which is an actual 1” thick.

Should I Space 5 4 decking?

Proper deck board spacing should have a 1/8-inch gap after the decking has dried out. If you install your decking using wet boards, pressure-treated decking that has not yet dried out, then you should install them with no gap as a gap will be created as they dry and shrink.

Should I use 2×6 or 5 4 decking?

Many professional deck builders prefer to use 5/4 decking as it is lighter, less expensive, and typically of better quality and appearance than 2×6 decking. Additionally, they also prefer joists spaced at 16” O.C. for strength and durability, regardless of lumber dimensions.

Why do they call it 5 4 decking?

It simply refers to how many 1/4-inches thick the rough stock is. For example, 4/4 (read out loud as four-quarters) is 1-in. thick in the rough. 5/4 is 1-1/4-in.

What is the best size wood for decking?

Width: Six-inch wide boards are ideal in most cases. Four inch wide material takes longer to install, creates more gaps and requires a lot more fasteners—but you can use it. Eight inch wide boards, because of their greater width, have more of a tendency to crack and cup; avoid using them.

What is the most common deck board size?

The most common or standard deck board width is 6-inch wide planks based on square-foot coverage, labor, and material cost.

What thickness should deck boards be?

16” on center = Standard for residential decking applications. 12” on center is recommended for a sturdier underfoot feel, when using standard deck board thickness of 1”. 24” on center = Sometimes used for commercial applications such as docks and boardwalks; wider joist spacing requires greater deck board thickness.

What happens if you don’t leave gaps in decking?

Rain can prove especially detrimental to wood decking if it doesn’t have a place to drain off the deck. When there are no gaps between the boards, this moisture remains trapped which can lead to issues like rot and mold.

What direction do you lay decking boards?

The correct way to lay decking boards for most decking is smooth-side-up, with the ridges there to prevent rot and mould.

Should deck boards be butted together?

We recommend butting treated deck boards together because as the moisture dries from the wood, the boards will shrink and naturally form gaps to allow water drainage. (Depending on moisture content, cedar, cypress and especially hardwood decking may require deliberate spacing for consistent joint sizes.)

Do you screw decking at every joist?

Each deck board should be fastened with two screws at each point where the board crosses a joist to ensure the stability and durability of your deck’s surface. Boards should be fastened to rim joists with three screws.

What is the best joist size for a deck?

Commonly used joist sizes are 2-by-6, 2-by-8 and 2-by-10. For example, when you space joists 16″ apart — which is standard for residential decks — a deck spanning 9 1/2′ would require 2-by-6 joists, a 13′ deck would need 2-by-8 joists and a 16′ deck calls for 2-by-10 joists.

Are 2×6 strong enough for deck joists?

You can use 2×6 as deck joists if the deck is low enough to the ground as not to require guard railing. When using S-P-F 2×6 deck joists, the span must not be greater than 9’0″ (2.73m) with joists at 16″ o.c. (400mm), and 9’10” (3.01m)with spacing at 12″ (300mm).

Can you use regular 2×6 for decking?

Wood decking is commonly available in 2×6, 2×4, 5/4 x 6, and 5/4 x 4 profiles. 5/4 x 4 and 5/4 x 6 is produced specifically for decking and can be found milled with a radius or bullnose edge. 2×4 and 2×6 are thicker and stronger, but they also tend to be more expensive than a 5/4 board of the same width.

Is 1×6 good for decking?

Width of material: We recommend only 1×4, 5/4×4 or narrower boards. Never use 1×6 or 5/4×6 material in close to ground applications. Spacing between boards: You must allow space for your deck boards to expand when they take on moisture, as they will inevitably do when exposed to wet weather, rain or high humidity.
