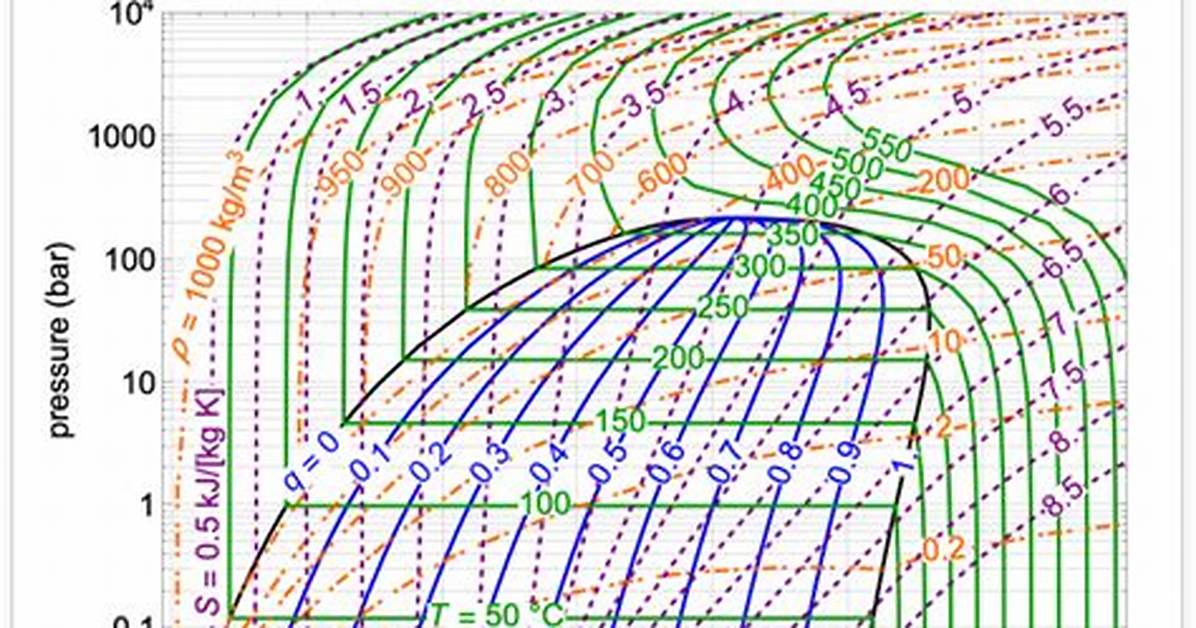

The pressure-enthalpy diagram (log P/h diagram) is a very useful tool for refrigerant technicians. First, an explanation of how the diagram is built up is given, and then its use is described. Figure 2.1 shows the principle of a log P/h diagram, and indicates the refrigerant’s various thermodynamic states.
How do you read a pressure enthalpy chart?
On the P-H diagram, pressure is indicated on the y-axis and enthalpy is indicated on the x-axis. Typically enthalpy is in units of Btu/lb and pressure is in units of pounds per square inch (psi). The upside down U figure shown on the diagram designates the points at which the refrigerant changes phase.
How do I calculate enthalpy?
Use the formula ∆H = m x s x ∆T to solve.
Once you have m, the mass of your reactants, s, the specific heat of your product, and ∆T, the temperature change from your reaction, you are prepared to find the enthalpy of reaction. Simply plug your values into the formula ∆H = m x s x ∆T and multiply to solve.
What is enthalpy in HVAC?
Enthalpy is defined as the amount of internal energy within a system combined with the product of its pressure and volume. When dealing with the term in the HVAC industry, we usually assume that the process is at a constant pressure and, as such, the change in enthalpy is equal to the heat absorbed or released.
How do you define enthalpy?
Enthalpy Definition. Enthalpy is defined as follows H = E + PV. Enthalpy is the sum of the internal energy. and pressure times volume. We cannot measure the enthalpy of a system, but we can look at changes in enthalpy.
What are the three regions on a pressure enthalpy chart?
The saturated liquid line and saturated vapour line divide the diagram into three regions, i.e., compressed liquid region left to the saturated liquid line, superheated vapour region right to the saturated vapour line and the wet vapour region between these two lines.
What is PH chart?
A p-h diagram is a figure with a vertical axis of absolute pressure and a horizontal axis of specific enthalpy. It is an important diagram used frequently for a performance calculation of a refrigerating machine. A p-h diagram is made respectively for a specified refrigerant.
What is specific enthalpy in thermodynamics?
Specific enthalpy(h) is defined as h=u+Pν, where u is the specific internal energy (Btu/lbm) of the system being studied, P is the pressure of the system (lbf/ft2), and ν is the specific volume (ft3/lbm) of the system. Enthalpy is usually used in connection with an “open” system problem in thermodynamics.
What is HVAC subcooling?
Subcooling occurs when you cool a vapor below the temperature at which it turns into a liquid. Let’s use the same refrigerant with a high pressure boiling point of 120 degrees for the following example: The refrigerant is a 140 degree vapor heading into the condenser.
What is COP in refrigeration?
Coefficient of Performance
The COP is determined by the ratio between energy usage of the compressor and the amount of useful cooling at the evaporator (for a refrigeration instalation) or useful heat extracted from the condensor (for a heat pump). A high COP value represents a high efficiency.
How do you calculate refrigerant enthalpy?
T2 329.423 K. Now.h1 248.815 kj/kg. h2 = hg2 + cp (T2- T2* )111.233 kj/kg. Aye Tun (ITMO University)h3 = hf3 -cp (T3*- T3) h3 = h4.
What is enthalpy and how is it calculated?
Enthalpy formula
Enthalpy, by definition, is the sum of heat absorbed by the system and the work done when expanding: H = Q + pV. where Q stands for internal energy, p for pressure and V for volume. If you want to calculate the change in enthalpy, though, you need to consider two states — initial and final.
How do you solve enthalpy problems?
The change in enthalpy is directly proportional to the number of reactants and products, so you work this type of problem using the change in enthalpy for the reaction or by calculating it from the heats of formation of the reactants and products and then multiplying this value times the actual quantity (in moles) of
How do you calculate enthalpy of air?
Calculate the enthalpy in the air alone by multiplying the temperature of the air, in degrees Celsius, by 1.007 and subtracting 0.026 from the answer. For example, consider air at a temperature of 30 degrees C. Air Enthalpy = 1.007 x 30 – 0.026 = 30.184 kJ per kg.
What is importance of Mollier chart?
The Mollier diagram is a tool used by engineers to predict, theoretically, the performance of systems and installations. The Mollier diagram, also called the enthalpy (h) – entropy (s) chart or h-s chart, is a graphical representation of thermodynamic properties of materials.
What is a Mollier chart and why it is used?
The Mollier diagram is a graphic representation of the relationship between air temperature, moisture content and enthalpy – and is a basic design tool for building engineers and designers. Sponsored Links. Air is a mixture of mostly oxygen, nitrogen and water vapor.
What do you mean by Mollier chart what is its importance?
Definition of Mollier diagram
: a diagram showing thermodynamic properties of a substance with various quantities (as temperature and pressure) constant especially in terms of entropy and enthalpy as coordinates.
What’s the difference between entropy and enthalpy?
Entropy is thus a measure of the random activity in a system, whereas enthalpy is a measure of the overall amount of energy in the system.
