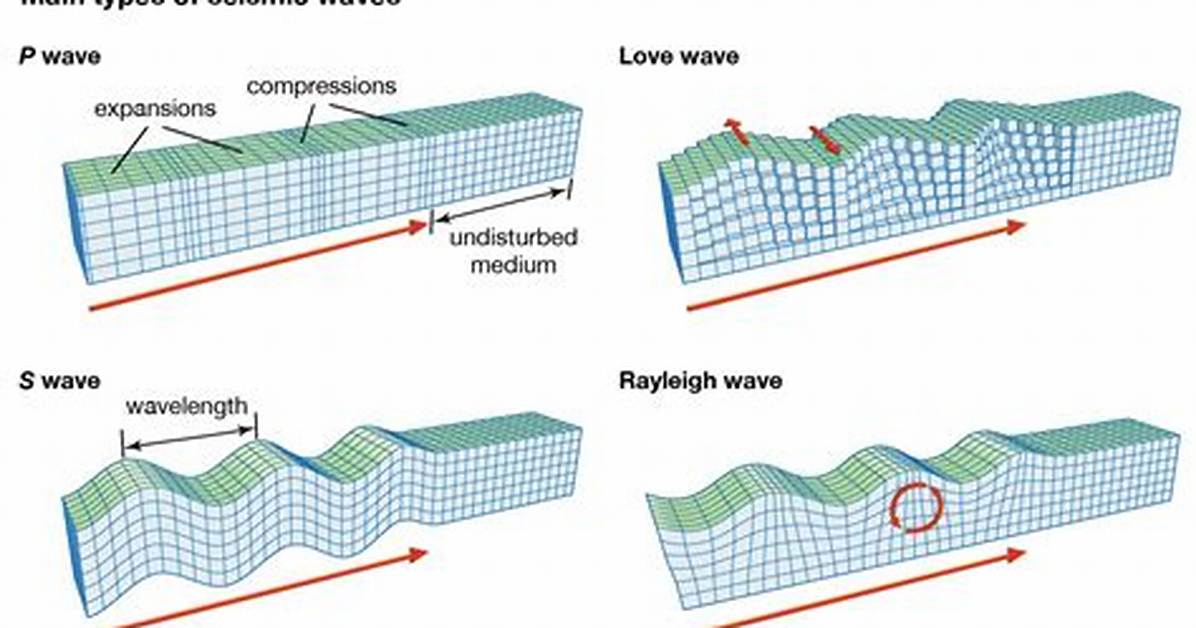

Love Waves—surface waves that move parallel to the Earth’s surface and perpendicular to the direction of wave propagation..
P-wave Motion. P-wave:the primary body wave; the first seismic wave detected by seismographs; able to move through both liquid and solid rock. S-wave Motion. Rayleigh-wave Motion. Love-wave Motion.
What is the 3 types of seismic waves?
There are three major kinds of seismic waves: P, S, and surface waves. P and S waves together are sometimes called body waves because they can travel through the body of the earth, and are not trapped near the surface. A P wave is a sound wave traveling through rock.
What are the 5 types of seismic waves?
Two types of particle motion result in two types of body waves: Primary and Secondary waves.
Primary waves.Secondary waves.Rayleigh waves.Love waves.Stoneley waves.Normal modes.
What are P waves S waves and L waves?
The PP (one bounce) and PPP (two bounces) waves travel more slowly than the direct P because they pass through shallower, lower velocity rocks. The different S waves arrive after the P waves. The slowest (and latest to arrive on seismograms) are surface waves, such as the L wave.
What is the 2 main types of seismic waves?
There are several different kinds of seismic waves, and they all move in different ways. The two main types of waves are body waves and surface waves. Body waves can travel through the Earth’s inner layers, but surface waves can only move along the surface of the planet like ripples on water.
How are S and P waves similar?
P waves and S waves are alike because they are both types of seismic waves produced by the sharp movement of rocks within the earth.
Are Love or Rayleigh waves more destructive?
Answer and Explanation: While both types of surface waves are dangerous, Love waves cause more damage than Rayleigh waves.
How do Rayleigh waves travel?
Rayleigh waves travel along the free surface of an elastic solid such as the Earth. Their motion is a combination of longitudinal compression and dilation that results in an elliptical motion…
Are S waves secondary waves?
Earth’s composition and structure
body: P waves (primary) and S waves (secondary). P waves are compressional waves and travel at the highest velocity; hence, they arrive first.
What are seismic waves Class 8?
Seismic waves: The vibrations produced due to earthquake which travel in the form of waves within the earth or on the earth’s surface are called seismic waves.
What are the P and S waves collectively called?
Taken collectively, p- and s-waves are known as “body” waves. The velocities of both can be measured via seismic refraction. Surface Waves, as the name implies, travel primarily along the ground surface; amplitudes decrease rapidly with depth. There are two types of surface waves.
What type of seismic waves is S wave?
S waves (in geology) Short for secondary waves, these are one of the types of seismic wave generated by earthquakes and underground explosions. S waves are a form of body waves, meaning they can move through Earth’s material and not just along the planet’s surface.
What are Love and Rayleigh waves?
Love waves have a horizontal motion that moves the surface from side to side perpendicular to the direction the wave is traveling. Of the two surface waves, Love waves move faster. Rayleigh waves cause the ground to shake in an elliptical pattern. This motion is similar to that observed in ocean waves.
What are L waves called?
P, S and L waves refer to Primary, Secondary and Longitudinal waves. L is also the first letter in Love waves.
What is primary and secondary waves?
Primary waves travel faster, move in a push-pull pattern, travel through solids, liquids and gases, and cause less damage due to their smaller size. Secondary waves travel slower, move in an up-and-down pattern, travel only through solids, and cause more damage due to their greater size.
Why are Rayleigh waves so damaging?
Love waves move back and forth horizontally. Rayleigh waves cause both vertical and horizontal ground motion. These can be the most destructive waves as they roll along lifting and dropping the ground as they pass.
Are Rayleigh waves transverse or longitudinal?
Rayleigh waves are a type of surface wave that travel near the surface of solids. Rayleigh waves include both longitudinal and transverse motions that decrease exponentially in amplitude as distance from the surface increases.
Are S waves shear waves?
An S wave, or shear wave, is a seismic body wave that shakes the ground back and forth perpendicular to the direction the wave is moving.
What is P waves or longitudinal waves?
For seismic waves through the bulk material the longitudinal or compressional waves are called P waves (for “primary” waves) whereas the transverse waves are callled S waves (“secondary” waves). Since any material, solid or liquid (fluid) is subject to compression, the P waves can travel through any kind of material.
What is the most powerful seismic wave?
P-waves. P-waves, also known as primary waves or pressure waves, travel at the greatest velocity through the Earth. When they travel through air, they take the form of sound waves – they travel at the speed of sound (330 ms-1) through air but may travel at 5000 ms-1 in granite.
