Called a “crowfoot” wrench because of its shape, this wrench was used in steam train repair work and to reach and to hold nuts and boltheads in difficult-to-reach places.
What is a Crowfoot socket?

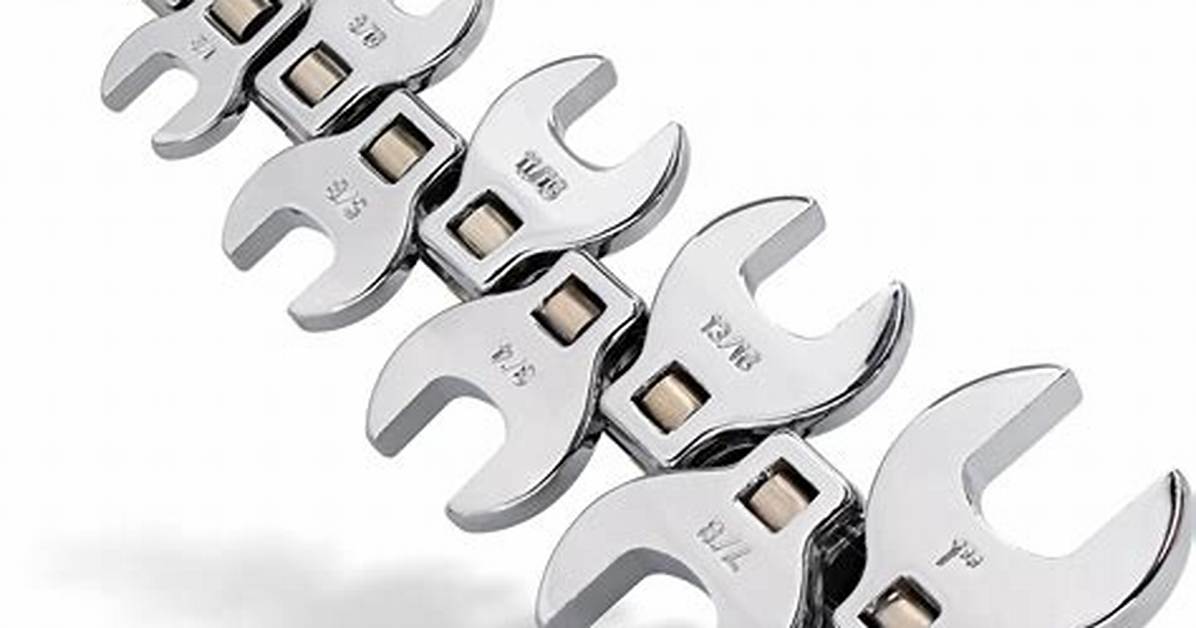

Crowfoot wrenches (also known as tight clearance offset sockets or crowfoot socket wrenches) are open-end type wrenches without a handle or shaft. Wrenches can access fasteners from the top and side and in tight spaces where a regular open-end wrench can’t reach.
Can you use a torque wrench with a crows foot?
If you place the crowfoot wrench at an angle 90-degrees to the torque wrench handle, the amount of torque you’re applying doesn’t change. You can set the torque wrench to the fastener’s torque specification and continue to use the torque wrench normally.
What is a flare nut?
Flare nut wrenches and wrench sets (also known as brake wrenches, grip wrenches, or line wrenches) have an opening in the wrench head that allows a brake line or obstruction to pass through it.
What size crows foot for barrel nut?
1 5/16″ Aluminum Crows Foot with 3/8″ Drive
308 free float handguard and need to torque the barrel nut without braking the bank, these are what you are looking for.
How do you use a crows foot wrench set?
How to Use Crowfoot Wrench
Step 1: Align the wrench properly. Firstly, you need to get a torque wrench that aligns with the kind of Crowfoot wrench that you have. Step 2: Attach the crowfoot wrench. Step 3: Use snap on tools. Step 4: Wrap the wrench around the fastener. Step 5: Use the ratchet.
What is a Pinhook spanner wrench?
Spanner wrenches are special-purpose wrenches with one or more pins, which insert into holes, or hooks, which catch on a lip.
What is the formula for using a crows foot on a torque wrench?
When you put an extension on a torque wrench (e.g. a crow foot or a dog bone) the torque applied to the fastener increases as the lever arm extends. The calculator will work out what value you should set into the wrench to achieve the required fastener torque. The following formula has been used: M1 = M2 x L1 / L2.
How do you calculate torque with a crow’s foot?
In example E, the offset is 1.25 inches because of the crow foot wrench being used. The torque wrench length is this example is 13.5 inches. (13.5 x 180) / (13.5 + 1.25) = 2430 / 14.75 = 165 ft.
Does a socket extension change torque?
In the picture above, an extension with a swivel and socket can affect the torque depending on the angle. Adapters will affect the torque wrench setting if the distance changes between the fastener and the torque wrench handle. A straight extension will have no effect on the torque wrench setting.
What does a flare fitting look like?
A flare fitting has a tapered end that fits into a flared piece of tubing and is secured in place with a sleeve and flare fitting (threaded nut) to produce a pressure-resistant, leak-tight seal.
What is a flame stack?
1. For starters, what exactly is the pole with a flame we often see at industrial sites? The tall, thin structure with flames or steam coming out of the top is called a flare stack. It’s a gas combustion device used at industrial sites to burn off waste or other unwanted gases.
Where do Crowfoot set their roots?
The roots form a mat with rooting nodes on each lower culm. The plant grows up to 2 feet tall and reduces light to the intended grass species.
What is a torque adapter used for?
Torque wrenches are used to apply a correct torque (force) to a ‘critical part’. Often we’d like to apply the correct torque in order to: Avoiding over-tightening the parts(s).
What are offset wrenches for?
Offset wrenches are just normal normal box-end wrenches with a bend on each end that helps them reach deeply countersunk nuts or bolts that you can’t get at with sockets or standard wrenches. The kit shown here offers two sizes on each wrench and they’re available in standard or metric sizes.
