Pinnacle Alloys ER70S-2 is a copper-coated solid wire designed for welding carbon and carbon-manganese steels with tensile strength up to 73,970 psi (510 MPa).

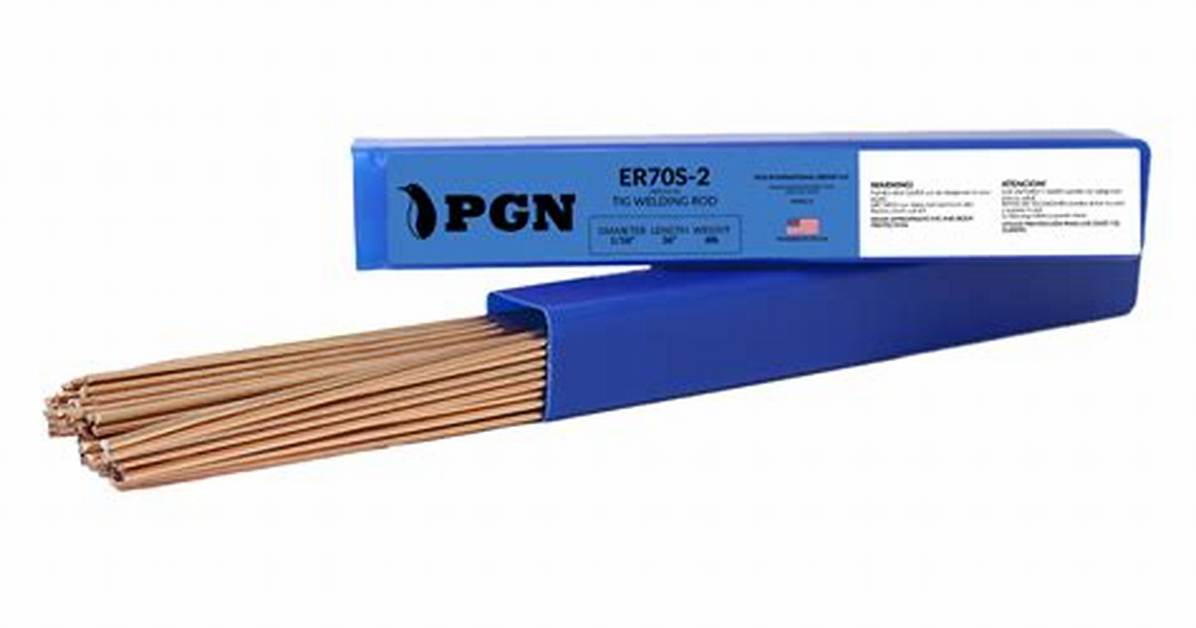

What is ER70S-2 TIG rod used for?
Type ER70S-2 is the most popular Tig rod for welding carbon and low alloy steels It is a triple deoxidized steel welding wire used for both tig and mig welding applications. Type ER70S-6 is a very popular mig welding wire that can also be purchased in cut lengths and used for Tig welding.
What is ER70S welding wire?
ER70S-6 is a mild steel welding wire that contains higher levels of manganese and silicon than other standard grades of MIG wire to produce high quality welds when used on dirty, oily, or rusty steel.
What does ER70S-3 mean?
For example, ER70S-3 indicates an electrode or welding rod (ER) that will produce weld metal of a minimum 70,000 psi tensile strength (70); is a solid bare wire or welding rod (S); of a specific chemical composition (3) as shown in Figure 5.
What does the R in the ER70S 2 electrode classification indicate?
Being a standard MIG welding wire of carbon steel, the E, R, refers to the Rod or Electrode thus making it to mean a wire.
What is the difference between 70S 2 and 70S 6?
Both are, for all intents, identical. One has slightly more deoxidizing agents than the other, but you may use both as equals. The 70S-6 has better scavaging properties then the S-2. It has higher silicon,and manganese deoxidizer levels, with better arc characteristics.
What 3 welding processes can ER70S-2 filler metal be used for?
Electrodes and rods of the ER70S-2 classification are primarily used for single-pass welding of killed, semi-killed, and rimmed steels, but may be used for some multipass applications.
What Rod do I use for aluminum TIG welding?
Some of the most commonly used alloys for TIG welding aluminum are 4043, 4047, 4943 and 5356. The 4xxx series filler metals share many similar characteristics. A 4043 rod is a good all-around filler metal for general fabrication.
What does ER70S-6 mean in welding?
As an example, for a commonly used solid wire — AWS ER70S-6 — the “ER” indicates that the filler metal is an electrode or rod; the “70” signifies that it has a tensile strength of 70,000 pounds per square inch (psi); and the “S” means that it is a solid wire.
What type of welding is GTAW?
Tungsten inert gas (TIG) welding, also known as gas tungsten arc welding (GTAW), is a type of welding responsible for securing some of the world’s most important equipment and machinery. During the TIG welding process, a nonconsumable tungsten electrode is used.
What is E7018 electrode?
The letter “E” indicates an electrode. The first two digits represent the resulting weld’s minimum tensile strength, measured in pounds per square inch (psi). For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi.
What type of wire is used for MIG welding?
MIG power sources use a continuous solid wire electrode for filler metal and require a shielding gas delivered from a pressurized gas bottle. Mild steel solid wires are usually plated with copper to prevent oxidation, aid in electrical conductivity and help increase the life of the welding contact tip.
Why is MIG welding wire copper coated?
The wire is copper plated and/or otherwise coated to retard oxidation or rusting of the wire, to decrease contact tip wear, and to assure good electrical conductivity. The plating or coating must not flake off or leave a residue that will clog the wire feed cable or the welding gun.
Which welding is best for mild steel?
MIG Welding – Basic Process
One of the main reasons MIG is a popular choice for welding mild steel is that the technique is quite simple, allowing the user to focus on the materials they are welding.
What is the difference between ER70S 2 and ER70S-3?
The contents of deoxidizing elements are lower in ER70S-3, intermediate in ER70S-6 and higher in ER70S-2. present lower oxygen contents than those produced using ER70S-6 and ER70S-3, respectively, when welding base metals with similar oxygen concentrations.
What ER70S 4?
ER70S-4 TIG Double De-Oxidised Welding Rods are It is designed for welding of mild and high tensile steel or 490 N/mm2 grade steel. It is suitable for root pass welding of pipes and all welding thin plates.
What is the difference between ER70S-2 and ER70S-3?
The contents of deoxidizing elements are lower in ER70S-3, intermediate in ER70S-6 and higher in ER70S-2. present lower oxygen contents than those produced using ER70S-6 and ER70S-3, respectively, when welding base metals with similar oxygen concentrations.
What are the different types of welding wire?
Three main types of welding wires are:
Solid gas metal arc welding (GMAW) wire.Composite GMAW (metal-cored) wire.Gas-shielded flux-cored arc welding (FCAW) wire.
What do the numbers mean on welding wire?
The first two digits of a 4-digit number and the first three digits of a 5-digit number stand for tensile strength. For example, E6010 means 60,000 pounds per square inch (PSI) tensile strength and E10018 means 100,000 psi tensile strength. The next to last digit indicates position.
