Thermoplastic high-heat resistant nylon-coated wire, or THHN, is a common wire used for connecting branch circuits and appliances. Its counterpart is called THWN (or THWN-2).
What size is THWN-2?
THWN-THHN-2 wire comes in standard AWG (American Wire Gauge) sizes from 14 AWG to 4/0AWG and larger sizes 250 MCM (thousands of circular mils) to 1000 MCM. Sizes 14, 12 and 10 AWG can be either solid or stranded conductors. Sizes 8 AWG and larger are stranded. THWN-THHN-2 wire comes in a variety of 10 standard colors.
What is a THWN-2 rated at?
THWN-2 Cable
The THWN wire we carry is actually coded THWN-2 indicating its rated 90 degrees for both wet or dry locations which is even better.
Is THWN 2 rated for direct burial?
THHN and THWN-2 Copper Building Wire is only approved to be buried in conduct, as it lacks the characteristics that would make it eligible for direct burial. UF-B and USE-2 are the standard direct burial cables.
Is THWN wire waterproof?
THHN wire is the most common type of single conductor electrical wire. It’s manufactured with a dual rating of THHN and THWN so that it’s all water-resistant.
Is Romex THWN?
Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.
Can Romex be run in conduit?
No, you can not run your Romex wiring in conduits.
Can Thhn be used in wet locations?
THHN wire is approved for up to 600V and is listed by Underwriters Laboratory (UL), as rated for 90° C (194° F) in dry and 75° C (167° F) in wet environments. THHN wire comes with a dual rating: THHN / THWN, which means it’s appropriate for both dry and wet applications.
What size wire do I need for 100 amp service?
Size Wire for 100 Amp Service
Wiring a 100 amp breaker panel requires either #4 copper wiring or #2 aluminum or copper-clad wiring. Which wire used is determined by the voltage drop and length of the wiring. Many licensed electricians use #2 copper-clad or aluminum wire size.
What is THWN electrical wiring?

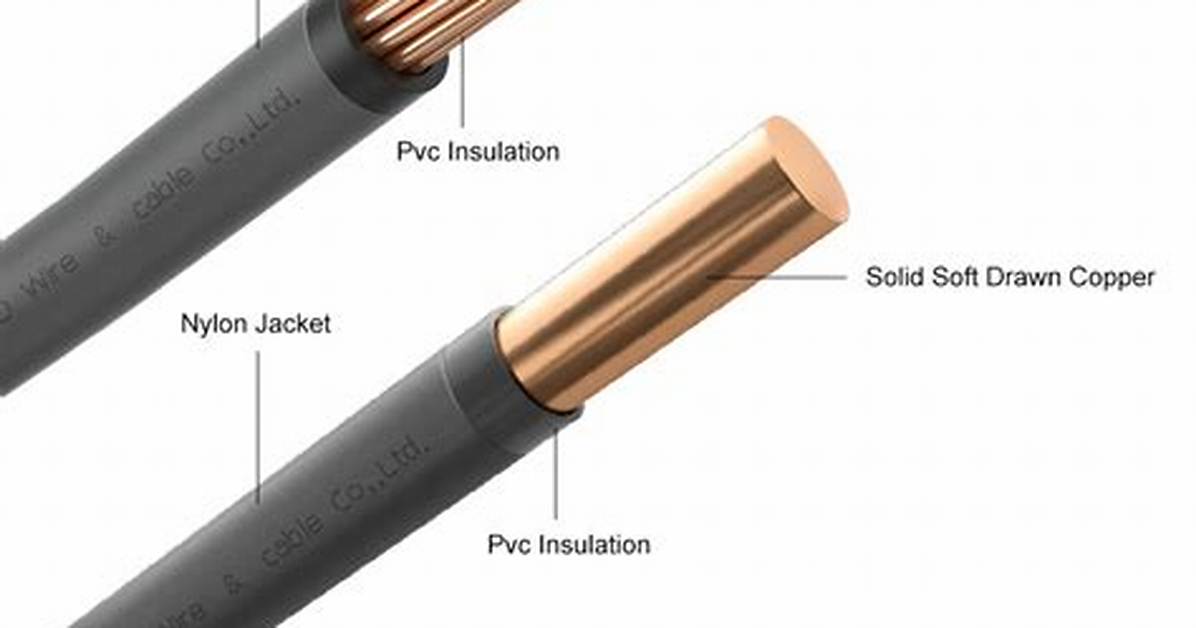

What is thhn wire? THHN is a thermoplastic high-heat-resistant, nylon-coated wire. It’s designed with a specific insulation material, temperature rating, and condition of use for electrical wire and cable.
What do you mean by THWN in wire insulation?
August 17, 2021 News. THHN (Thermoplastic High Heat-resistant Nylon-coated) wire is designed with a PVC (polyvinyl chloride) insulated nylon sheath. Most THHN building wire comes with the dual rating THHN/THWN, meaning it is usable in both wet and dry conditions, as well as both indoor and outdoor use.
Is THWN wire sunlight resistant?
Listed by UL as Sunlight Resistant (1/0 AWG and larger, black only).
Can THWN 2 be buried in conduit?
At 18 inches, you can use THWN-2 conductors inside a continuous length of PVC conduit, which protects the wire all the way through the trench to the house. At 24 inches you can bury underground feeder cable, using PVC conduit to 18 inches below ground only where the wire comes up.
How long will THWN wire last underground?
Typical underground installations are expected to last up to 30 years. Nylon, the main covering of THHN, is very susceptible to water and moisture, causing additional breakdowns in the wiring under adverse conditions.
What wire is OK for direct burial?
Common types of cables with a copper conductor suitable for direct burial are USE-2, UF-B Underground Feeder Cable, and Tracer Wire. Aluminum URD Direct Burial Wire is the most commonly used direct burial aluminum wire.
What is difference between Thhn and THWN?
THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations.
Is it OK to run Romex in conduit?
No, you can not run your Romex wiring in conduits. What you’re looking at in the code book is referring to THHN and other wiring, that while insulated with a single coat is not insulated with a second covering and bound to 2 or 3 other wires.
Is THWN sunlight resistant?
Listed by UL as Gasoline and Oil Resistant 11. 3. Listed by UL as Sunlight Resistant (1/0 AWG and larger, black only).
Is Romex THWN?
Romex wire is made out of two or three THHN wires combined with a grounding bare copper wire. Like the THHN wires, Romex wire can’t be used outside because of its minimal PVC jacket protection.
