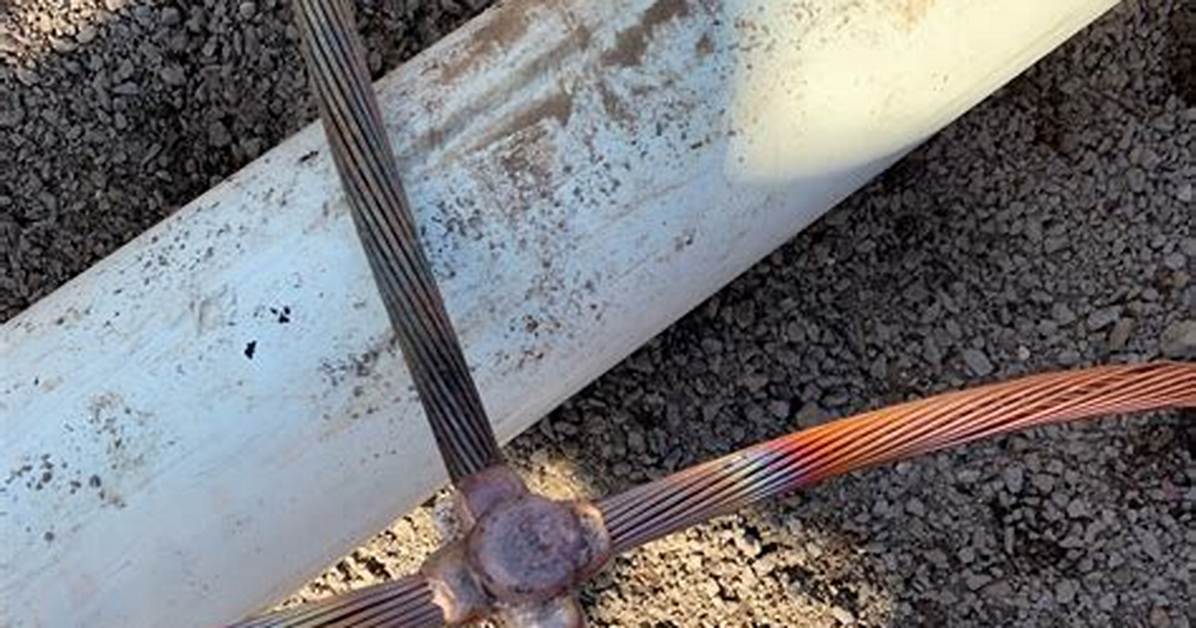

So, what is Cad welding? It is a welding process that utilizes an increasingly exothermic thermite contact between a metal like aluminum and copper oxide, which helps transfer uncontaminated copper into the weld.
What is CADWELD made of?
CADWELD connections are made with a semi-permanent graphite mold, which holds the conductors to be welded. Weld metal (a mixture of copper oxide and aluminum) is dumped into the top of the mold. The mold is covered and the weld metal ignited.
What is CADWELD connection?
TABLE OF CONTENTS. The nVent ERICO Cadweld Process. Cadweld connections are the accepted method of attaching Cathodic Protection leads to pipes (steel or cast iron), tanks and structures. Cadweld connections weld the conductors and the structure to be protected so no galvanic corrosion can occur at the interface.
Who invented CAD welding?
The company in 1939 patented its Cadweld exothermically welded connection, an invention that paved the way for rail car companies to make repairs to rail tracks without large welding equipment. More than 100 million nVent ERICO Cadweld connections are now installed in a broad array of applications around the globe.
Can you CADWELD in the rain?
It is not recommended that you CAD weld in the rain, even though it is a self-contained process. Water can get inside the chamber and cause unnecessary defects. If you are going to CAD weld in the rain, ensure that it is dry as possible around the welding.
Can you CADWELD copper to steel?
Advantages of a nVent ERICO Cadweld
Exothermic welds are suitable for connecting copper to copper or connecting copper to steel, cast iron, brass, and bronze. It’s especially useful when connecting two different types of metal because it resists galvanic corrosion.
What are the hazards of CAD welding?
Exothermic welding (also known as cad and thermite or CAD welding) is frequently used for bonding electrical conductors for grounding. The process has an obvious risk of burn injuries and the potential to start an unintentional fire.
Can you CADWELD to stainless steel?
Each weld uses one disk. Two types of CADWELD weld metal are used for Cathodic protection connections: F-33 alloy is used for all connections of cable to cable and cable to steel or stainless steel pipe.
Can you CADWELD aluminum?
Only different molds and different types of welding material are needed for Copper or for Aluminum welds. Cadweld connections give you a single process for making all cable-to-cable, splices and terminations, tubular bus and flat bus connections.
How long does a CADWELD mold last?
Q: How long does a Cadweld mold last? The factory spec’s their semi-permanent molds to last approx. 50 connections. This number can be greatly affected by the amount of care taken while using and cleaning the mold.
Do CADWELD shots expire?
All outer packages must be stored in accordance with label markings. If proper storage is maintained, the CADWELD PLUS unit and CADWELD Welding Materials do not exhibit any storage or shelf life.
What are types of welding?
There are four main types of welding. MIG – Gas Metal Arc Welding (GMAW), TIG – Gas Tungsten Arc Welding (GTAW), Stick – Shielded Metal Arc Welding (SMAW) and Flux-cored – Flux-cored Arc Welding (FCAW). We dive deeper into each type of welding here.
What is forged weld?
Forge welding is a process used to join two pieces of metal together by heating them to a high temperature and then hammering them together. Developed in the Middle Ages, forge welding is one of the oldest methods of joining metals. Forge welding is an essential technique and an invaluable skill for a blacksmith.
What is TIG welding used for?
The most important applications for TIG welding are pipeline and pipe welding. It is, however, used in many industries, such as aviation and aerospace and sheet metal industries when welding particularly thin materials and special materials such as titanium.
Do welds need to cure?
The need for PWHT is mostly due to the residual stresses and micro-structural changes that occur after welding has been completed. During the welding process, a high temperature gradient is experienced between the weld metal and the parent material. As the weld cools, residual stress is formed.
Can you CADWELD to galvanized steel?
The visual damage caused by the heat when making a CADWELD Connection to galvanized surfaces can be easily protected with a zinc rich paint.
Can you stand in water while welding?
As long as you are not wet and touch your work directly, you’re fine.
Can you CADWELD aluminum?
Only different molds and different types of welding material are needed for Copper or for Aluminum welds. Cadweld connections give you a single process for making all cable-to-cable, splices and terminations, tubular bus and flat bus connections.
How do you do exothermic welding?
Exothermic Welding Process
In this process, a special weld material is placed into a high temperature resistant mold and ignited. The process of igniting the particles creates extremely high heat and molten metal (exothermic reaction) up to 1400 degree celsius, and produces a molten metal slag.
Do CADWELD shots expire?
All outer packages must be stored in accordance with label markings. If proper storage is maintained, the CADWELD PLUS unit and CADWELD Welding Materials do not exhibit any storage or shelf life.
Which of the following is an exothermic welding process?
Exothermic welding is a fusion welding process. Unlike many other welding processes, the source of energy does not come from electricity, combustion or mechanical means. Instead, the energy is obtained from a chemical reaction. The heat from this chemical reaction coalesces two or more materials together.
