Control Valves

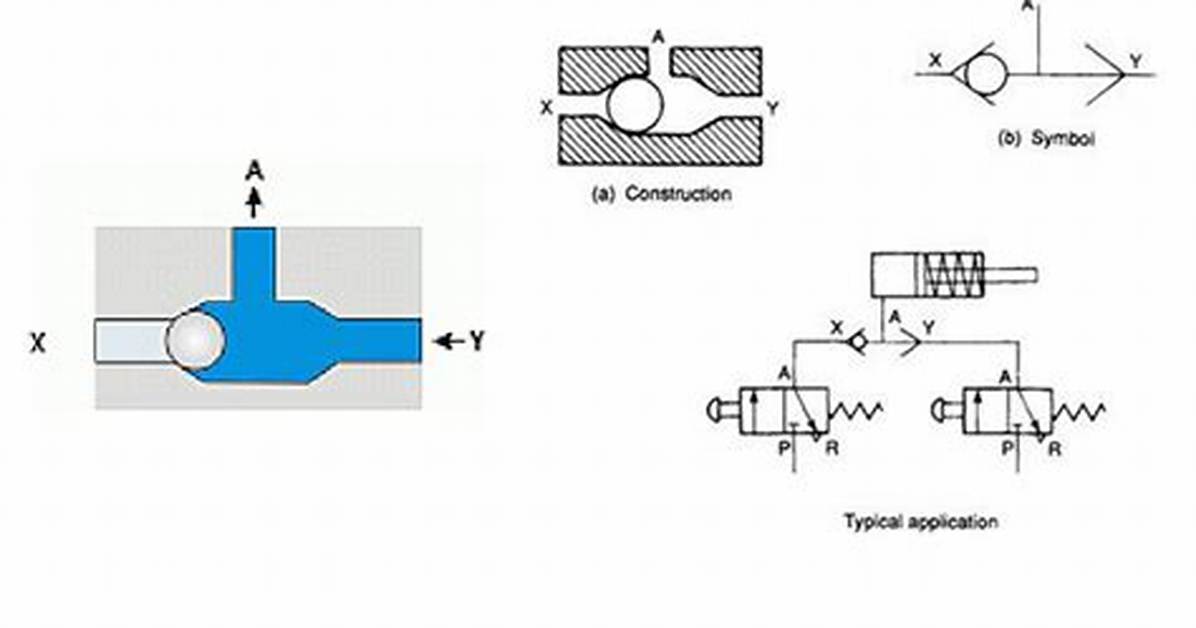

A shuttle valve, also known as a double-check valve, allows pressure in a line to be obtained from alternative sources. It is primarily a pneumatic device and is rarely found in hydraulic circuits.
What are the differences between check valve and shuttle valve?
There are basically two types of double check valves; shuttle valves and Disc valve both carry the same functioning but the only difference is that the shuttle type has a movable shuttle to seal off the lower pressure source, whereas the disc type has a movable disc.
What is shuttle valve in aviation?
Shuttle Valves are two position devices that connect two separate pressure sources with a common outlet to provide system redundancy. When one valve outlet is connected to the outlet, the opposite inlet is shut off.
What is another name for a shuttle valve?
The shuttle valve is also called a double check valve, a shuttle valve has two inlets and one outlet. If any of the inlets is unloaded the flow will be shut off in that direction and it will be open from the loaded one to the outlet.
What does the shuttle valve do within the closed loop circuit?
In a closed loop hydrostatic transmission circuit, a low side hot oil shuttle valve is used to discharge supercharge oil from the low side of the loop for cooling.
How many directions are there for a fluid to flow in shuttle valve?
Explanation: There are only 2 directions for a fluid to flow in shuttle valves. It allows inlet from 2 different directions. A dynamic shuttle is used to switch the flow from the inputs. Fluid flows from the inlet which is experiencing higher pressure.
What is SRV valve?
Safety relief valve (SRV): an automatic system that relieves by static pressure on both gas and liquid. Pilot-operated safety relief valve (POSRV): an automatic system that relieves on remote command from a pilot, to which the static pressure (from equipment to protect) is connected.
What is check valve used for?
What is a check valve? Check valves are generally installed in pipelines to prevent backflow. A check valve is basically a one-way valve, in which the flow can run freely one way, but if the flow turns the valve will close to protect the piping, other valves, pumps etc.
What is a spool valve?
A spool is a cylindrical valve element that opens and closes ports when moved axially within the valve bore. Most spool valves use elastomers to seal between flow paths.
What is priority valve in aviation?
Priority Valves
A priority valve gives priority to the critical hydraulic subsystems over noncritical systems when system pressure is low. For instance, if the pressure of the priority valve is set for 2,200 psi, all systems receive pressure when the pressure is above 2,200 psi.
What is Twin pressure valve?
Aventics Twin Pressure Valves are used for the main or pilot flow limitation of one or two actuator ports from 80 to 800 litres per minute. When two pressure valves are aligned symmetrically to each other, they are able to limit flow in one direction and allow free return flow in the opposite direction.
What is an unloading valve?
Unloading valves are pressure-control devices that are used to dump excess fluid to tank at little or no pressure. A common application is in hi-lo pump circuits where two pumps move an actuator at high speed and low pressure, the circuit then shifts to a single pump providing high pressure to perform work.
Why do two pressure valves have two inputs?
A two pressure valve requires two pressurised inputs to allow an output from itself. This is achieved by a similar system to the one shown below, one active input slides the shuttle valve shut blocking any air flow, add two active inputs and the shuttle remains centralised allowing flow through the valve.
What is a 2 way valve?
A 2-way valve is a straightforward device with two openings, one for inlet and the other for outlet. These chilled water control valves simply regulate the flow of the fluid through them by varying the size of the valve opening, and can work as on/off devices.
