To Explode an Object

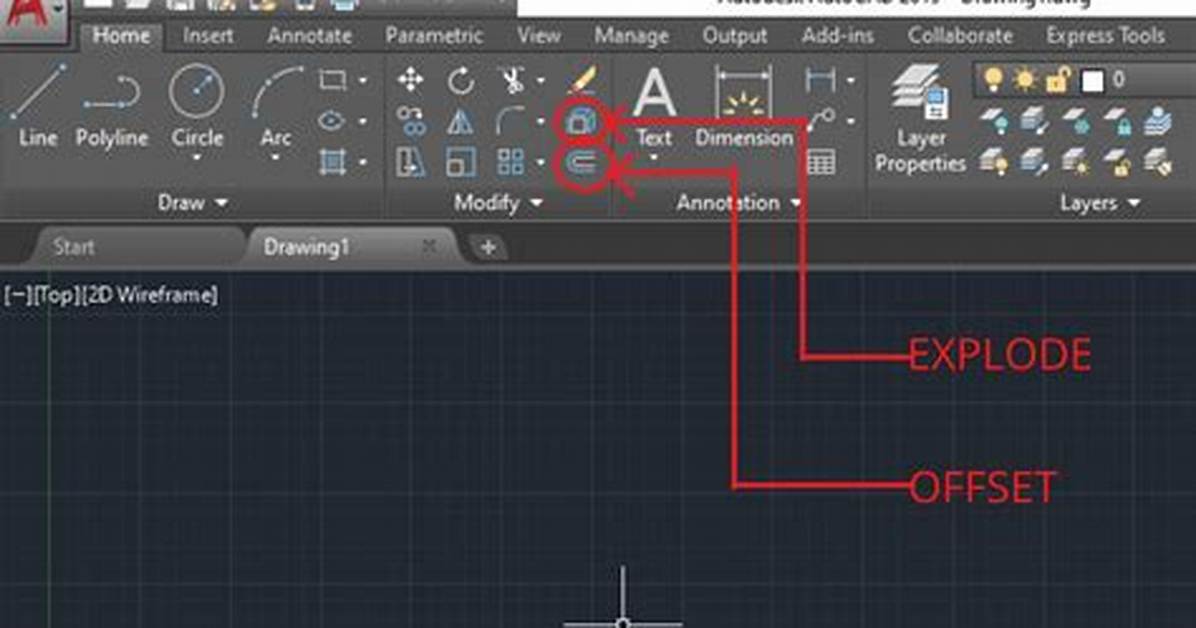

Click Home tab Modify panel Explode. Find.Select the objects to be exploded. For most objects, exploding has no visible effect.
What is the command of explode?
You can use the EXPLODE command on the Update Object Profile Display panel to generate a list of all databases and indexes that meet the profile specifications and that are to be included when a job is built.
What is the explode command in AutoCAD?
Breaks a compound object into its component objects. Explodes a compound object when you want to modify its components separately. Objects that can be exploded include blocks, polylines, and regions, among others. The color, linetype, and lineweight of any exploded object might change.
How do you explode a table in AutoCAD?
Exploding Tables
Click Home tab Modify panel Explode . At the Command prompt, enter explode.Select the table and press Enter.
How do you explode in AutoCAD 2021?
To Explode an Object
Click Home tab Modify panel Explode. Find.Select the objects to be exploded. For most objects, exploding has no visible effect.
How do you explode text in AutoCAD?
“Exploding” the text converts it to polylines.
Open your AutoCAD project and click “Express Tools” in the menu.Click the “Modify Text” drop-down menu in the toolbar and select “Explode.”Click the text that you want to change into polylines. Press “Enter” on your keyboard to convert the text to polylines.
Where is line command in AutoCAD?
To open the Command line, type CommandLine anywhere in your CAD interface. Then press Enter. The Command line will reappear. You can also open the Command line by holding down the CTRL + 9 keys.
What is offset in CAD?
The offset command in AutoCAD is used to create parallel lines, concentric circles, and parallel curves. We can offset any object through a point or at a specified distance. We can create as many parallel lines and curves with the help of the offset command.
How do you explode a block in AutoCAD?
Change the setting for an existing block so that it can be exploded: In AutoCAD for Windows, (see To Specify Whether a Block Reference Can Be Exploded)
Solution:
Use the icon in the modify tab.Type the shortcut command X(explode) from the command line and enter.Explode blocks while inserting. (Tick the check box)
How do you explode an object in AutoCAD 2020?
To Explode an Object
Click Home tab Modify panel Explode. Find.Select the objects to be exploded. For most objects, exploding has no visible effect.
