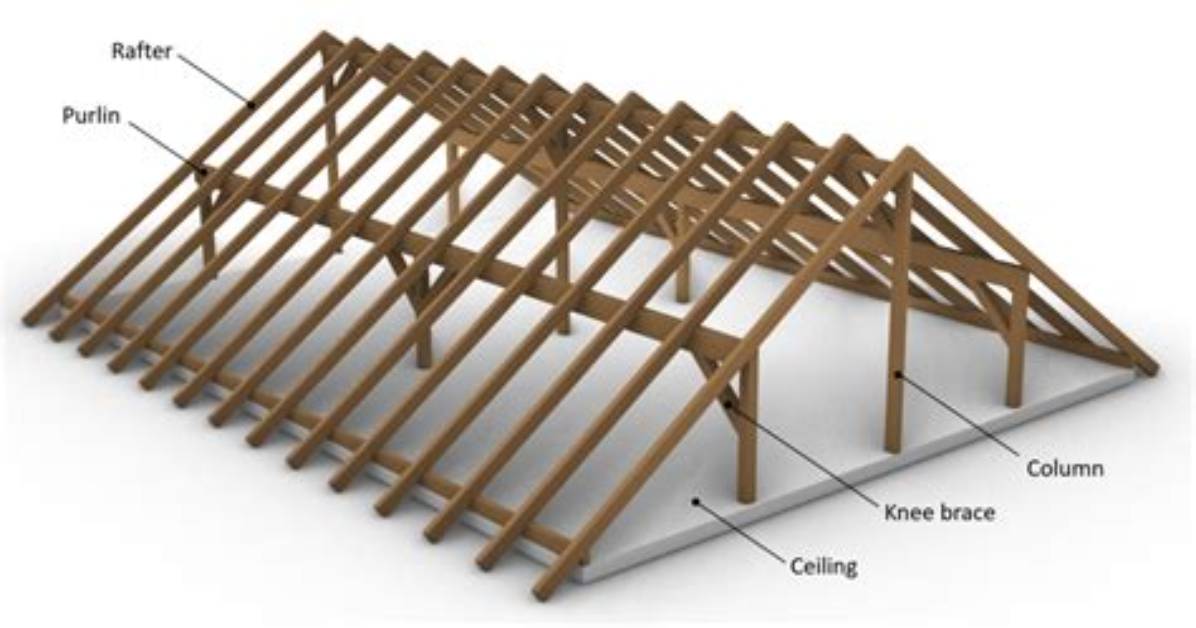

Purlin plates are beams which support the mid-span of rafters and are supported by posts. By supporting the rafters they allow longer spans than the rafters alone could span, thus allowing a wider building.
What is the difference between a rafter and a purlin?
A rafter is one of a sequence of sloping beams that go from the ridge or hip to the downslope perimeter or eave and are intended to support the roof deck and its related loads. A rafter can be a raftsman, but a purlin is a roof’s longitudinal structural part made up of two or more rafters.
What is a purlin on a metal roof?
A metal purlin is a lightweight, horizontal beam or bar that is used for structural support in roofing. In addition to providing support, metal purlins also increase a building’s resistance to heavy winds. Purlins are a key component to the secondary frame of commercial, residential and industrial metal buildings.
How are purlins attached?
They are installed on top of the roof rafters with a felt underlayment or vapor barrier installed on top. Purlins are 2 by 4 feet and are installed much like metal roofing. They give added support to the roof and also provide a nailing surface for the end panels and drip edge.
Are purlins load bearing?
In architecture or structural engineering or building, a purlin (or purline) is a horizontal structural member in a roof. Purlins support the loads from the roof deck or sheathing and are supported by the principal rafters and/or the building walls, steel beams etc.
Do all roofs have purlins?
Hi it all depends on the thickness and depth of the joists being used, spaces between joists, and the weight of the roof covering being fitted, combined with snow and wind loads for the location you live in. You also need to consider the strength of the timber (normally marked as C16/C25 ect).
What is the difference between a batten and a purlin?
But a “purlin” is applied directly onto the roof rafters, running perpendicular between them, while a “batten” is nailed to roof sheathing or applied over an existing roof for installation of a new roof.
Are purlins required?
Purlins are not required or needed unless rafters are overspanned and then the purlins serve as support to prevent roof sag / deflection due to the overspanned and / or undersized rafters.
Does a metal roof need purlins?
According to Elite Steel and Supply, metal roof purlins are an important part of achieving excellent metal roofing installations that last for decades with low maintenance and unlikely repairs.
Can you walk on a metal roof with purlins?
All metal roofing systems, especially steel roofing, can be walked on. Proper fall protection is always important when walking on any roof – never walk on a wet roof or one that has dew on it. Never walk on metal roofing panels before they are properly fastened down.
How far apart should roof purlins be?
The purlin are ultimately used to fasten the roof steel providing a diaphragm effect, along with the siding, when properly engineered and installed. Spacing is typically 24″ on center in low snow loads and is reduced based upon truss span and snow load.
What is a wall purlin?
In the shape of a “Z”, a purlin is a horizontal structural member that supports roof covering and carries loads to the primary frame. They are one directional and bolt downhill of the clip. Opposite of purlins and roofs, girts are used on walls.
What’s a purlin rafter?
In architecture, structural engineering or building, a purlin (or historically purline, purloyne, purling, perling) is a horizontal beam or bar used for structural support in buildings, most commonly in a roof. Purlins are supported either by rafters or the walls of the building.
How far can purlins span?
A four-inch purlin can span 12 feet. A six-inch purlin can span 18 feet. An eight-inch purlin can span 25 feet. A ten-inch purlin can span 30 feet.
