Osb is stronger than plywood in shear. Shear values, through its thickness, are about 2 times greater than plywood. This is one of the reasons osb is used for webs of wooden I-joists. However, nail-holding ability controls performance in shear wall applications.
What size is 1/2 in OSB?
1/2-in x 4-ft x 8-ft OSB Sheathing.
What is the difference between 7 16 and 1/2 inch OSB?
7/16 OSB for Roof Sheathing FAQs
The most commonly used OSB size for roofing is 7/16-inch OSB. It’s slightly smaller than 1/2-inch roof sheathing and considered the absolute minimum where rafters/trusses are spaced 24″ O.C.
What are the disadvantages of OSB?
Prone to swelling edges and telegraphing.
“The major disadvantage of OSB is that if it gets exposed to significant amounts of water or moisture, the edges expand by up to 15% especially if they are cut edges. This swell will then telegraph onto the shingles or some flooring,” according to PATH.
Why is OSB so expensive?
OSB is expensive because it takes a long time to expand lumber mills and increase their supply output.
Is OSB board waterproof?
As a general rule, most OSB are water resistant. Due to their construction process using wood strands, resins and wax they come fairly water resistant. However, if you’re looking for a truly waterproof OSB you need to make sure it is stamped stating so.
What type of OSB is used for roofing?
Typical types of wood used for roof sheathing are oriented strand board, known as OSB, and plywood, the most popular being OSB. Sheets of 7/16-inch thick, with no edge support, can be used in an area where the snow load is 30 pounds per square foot. With edge support and the same snow load, 3/8-inch OSB can be used.

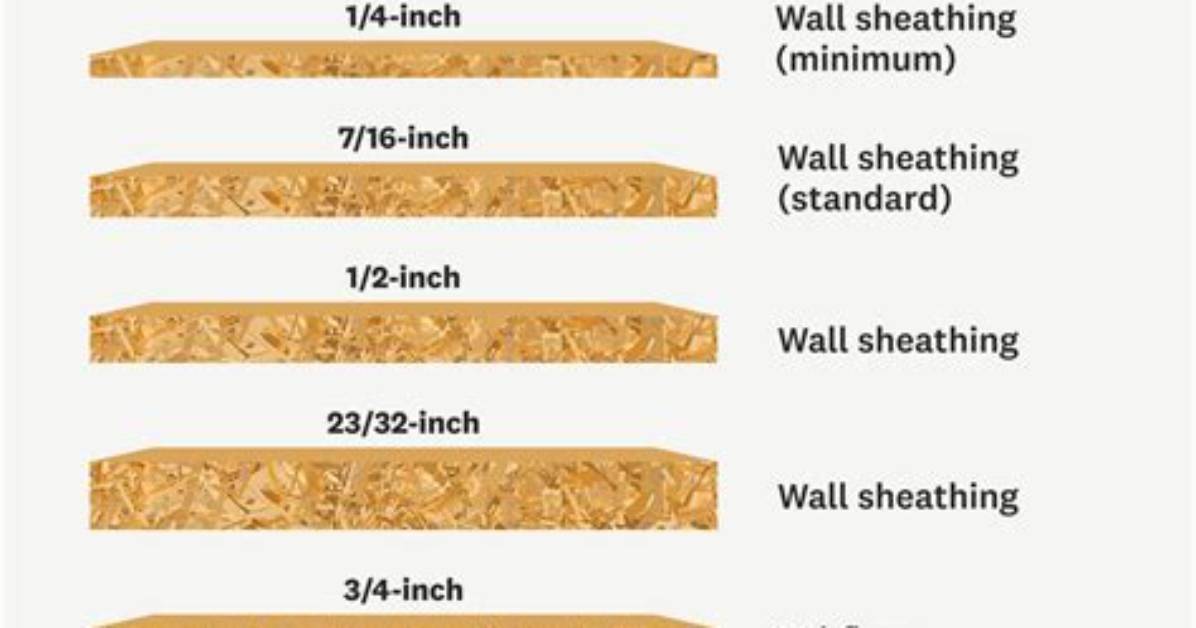

What is the actual thickness of 1/2 inch OSB?
Because the actual thickness may vary measuring the plywood is the only accurate way to determine its thickness. A 3/4” sheet is actually 23/32” thick. A 1/2” sheet is actually 15/32” thick. A 1/4” sheet is actually 7/32” thick.
What is the actual thickness of 7/16 OSB?
Oriented Strand Board (Common: 19/32 in. x 4 ft. x 8 ft.; Actual: 0.578 in.
What is the actual thickness of 1/2 OSB?
OSB Sheathing (Common: 15/32 in. x 4 ft. x 8 ft.; Actual: 0.451 in.
Can you use 1/2 OSB for walls?
Building codes in some areas require that the best OSB for walls is 1/2 inch thick if stucco will be applied. Thicker OSB is recommended for high-risk areas where walls can be compromised by hurricanes or tornadoes. Note that specifications for fasteners used with OSB are different in high-risk areas.
What is 19 32 OSB used for?
Shop OSB 19/32 Rated Sheathing
OSB is a material with favorable mechanical properties that make it particularly suitable for load-bearing applications in construction. It is now more popular than plywood in the structural panel market. The most common uses are as sheathing in walls, flooring, and roof decking.
Is it OK to use OSB for roofing?
Both OSB and plywood panels can cut and installed on a roof using conventional roofing equipment. They have similar structural characteristics, and can be used interchangeably.
Is it better to use OSB or plywood for subfloor?
OSB has a lower resale value than plywood due to its lower strength. For this reason, few homeowners prefer OSB in their homes. Apart from costs, plywood is superior in all the other areas, such as the strength of the structure. For this reason, it’s a superior material for use on the subfloor.
Does OSB board warp?
OSB is built by pressing smallers strands of wood together with glue and wax in a hot press. OSB looks a lot like a collage of different wood chips. Unlike it’s plywood counterpart, OSB lacks the forces that tend the wood to warp, and so is easier to get perfect dimensions and avoid warping tendencies.
Is OSB plywood good for outdoors?
Conclusion. OSB is highly resistant to moisture and can be water and weatherproofed for exterior use using good quality paint or stain. It has superior strength to other wood panels and a slower rate of moisture absorption. Properly maintained and protected, OSB will last for decades.
