Download and install desktop GE Pro. Then go to Tools>Options>3D View>Show lat/long. Select MGRS.
Is UTM the same as MGRS?

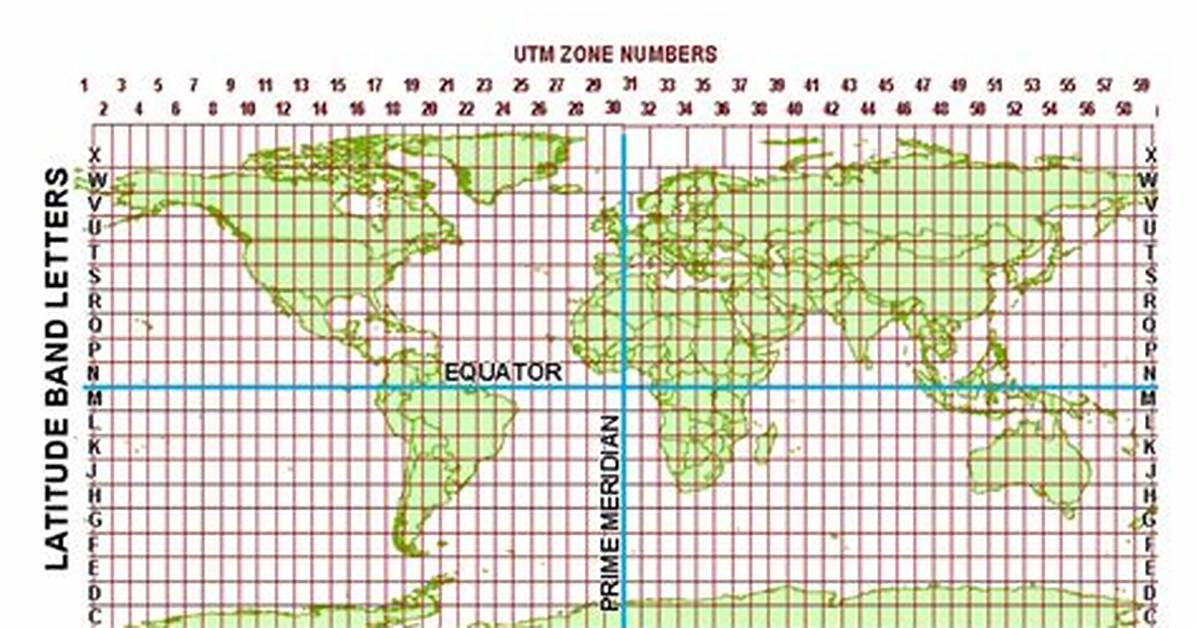

The Military Grid Reference System (MGRS) is an extension of the UTM system. UTM zone number and zone character are used to identify an area 6 degrees in east-west extent and 8 degrees in north-south extent. UTM zone number and designator are followed by 100 km square easting and northing identifiers.
How do I get MGRS grid?
Look at the top of your map at the easting numbers, and move right until you find the 30 grid line. Look at the side of your map at the northing number and move up until you find the 95 grid line. Follow the lines to where they intersect. That is the bottom left corner of the grid square that we’ll be working with.
What coordinate system does the military use?
MGRS Coordinates
“19” is equivalent to the corresponding UTM zone. Equivalent to UTM/UPS latitude band letter. “T” is the corresponding UTM latitude band letter. This is the first of 2 letters used to define the 100 kilometer square within the UTM/UPS block.
Can you enter MGRS on Google Maps?
Open a new map and click “Import” from the Layers toolbar. Upload your spreadsheet and, when prompted, select the latitude and longitude columns to identify the location and the “Name” column to give each place a name. After clicking “Finish,” the MGRS points should all appear on the Google map.
Does Google Earth have MGRS?
Then go to Tools>Options>3D View>Show lat/long. Select MGRS.
How do you convert MGRS to UTM?
What’s the best way to convert MGRS to UTM XY (value to value)
create a table (in memory)add an mgrs field.create a cursor on that table.insert a row with the MGRS value.run convert coordinate notation tool, outputting a featureclass.create another cursor on that featureclass.read the row to get the X and Y values.
How do you read military grid coordinates?
One always reads map coordinates from west to east first (easting), then from south to north (northing). Common mnemonics include “in the house, up the stairs”, “left-to-right, bottom-to-top” and “Read Right Up”.
How accurate is a 6 digit grid coordinate?
A 6 digit grid coordinate is accurate within 100 meters.
How do you convert GPS coordinates to grid references?
1 convert (geodetic) latitude/longitude to geocentric cartesian coordinates: e² = (a²−b²) / a² 2 apply Helmert transform. The 7-parameter Helmert transform is given by: 3 convert cartesian co-ordinates back to latitude/longitude.
How do you convert coordinates?
Community Mapping Experiment: How to Convert Latitude and Longitude to Map Coordinates
Step 1: Multiply (×) the “degrees” by 60.Step 2: Add (+) the “minutes”Step 3: If the Latitude (Longitude) degrees are S (W) use a minus sign (“-“) in front. Step 4: Subtract Reference Location converted to Minutes.
How accurate is a 8 digit grid?
8 digits – 23480647 – locates a point with a precision of 10-meters (the size of a modest home).
How close does a 4 digit grid get you?
Remember, four-digit grids get you to within 1000 meters, six-digit grids to within 100 meters and an eight-digit grid gets us to within 10 meters.
How big is a grid square on a military map?
Grid Squares The north-south and east-west grid lines intersect at 90 degrees, forming grid squares. Normally, the size of one of these grid squares on large-scale maps is 1000 m (1 km).
How do I get a grid reference on Google Maps?
Google Maps
Click “Grid Reference Tools” and choose “Get Grid Reference from Map”. By clicking on the desired location, the 6-figure Grid reference will be shown. Click “Location Search Tools” and enter a place name (this does not work with post codes). The map will centre on the place name, if found.
How do I show the grid on Google Maps?
For Google Earth webyou toggle on the Latitude and Longitude grid click the Map Style icon on the right ribbon (currently second icon from the bottom) >> scroll down and toggle on “Turn on Gridlines”. With the gridlines on you can use the creation line tool to create a segment at 10 degree intervals.
How do I find grid coordinates on Google Maps?
Enter coordinates to find a place
On your computer, open Google Maps.In the search box, enter your coordinates. Here are examples of formats that work: Decimal degrees (DD): 41.40338, 2.17403. Degrees, minutes, and seconds (DMS): 41°24’12.2″N 2°10’26.5″E. Degrees and decimal minutes (DMM): 41 24.2028, 2 10.4418.
