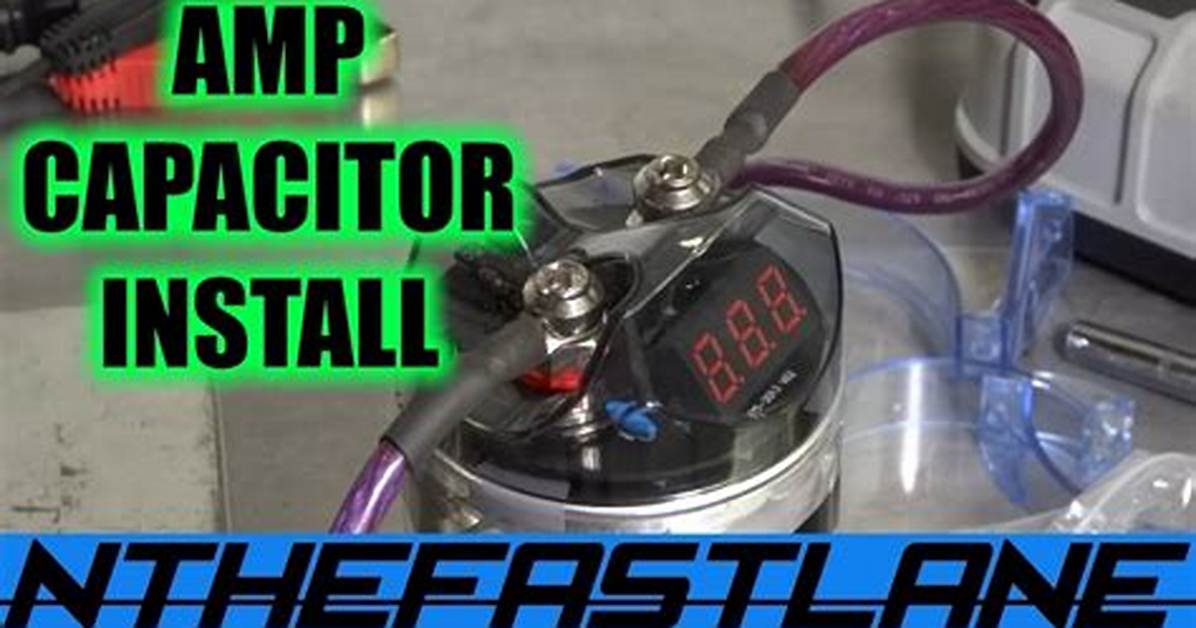

Adding Capacitors
Capacitors store electricity as instant power available for your amplifier. If the amplifier draws more current than is available from the electrical system directly, the capacitor covers the difference up to its stored capacity. The battery is not overloaded and the car voltage remains steady.
Should I use a capacitor for my amp?
A: Not really. A cap prevents the sound from deteriorating due to under-voltage, but doesn’t actually improve the sound. It supports the amplifier by feeding it the power it needs for short bursts. So, while not improving sound quality directly, a cap does make it easier for the amp to perform its best.
What size capacitor do I need for amp?
The rule of thumb is to put in 1 Farad of capacitance for each watt of power. Many see benefits with 2 or 3 Farads per 1,000 watt RMS, and there is no electronic penalty for using larger value caps. The bigger the cap, the quicker it gets ready for the next hit.
Will a capacitor drain my battery?
Yes, a capacitor does not drain the battery. When a capacitor greatly drains the battery, it is because of the wrong setting of the capacitor. There are some capacitors with third terminals or caps above them. The caps can display voltage, and they will need to be turned off manually.
When should you use a capacitor?
Capacitors are widely used in electronic circuits for blocking direct current while allowing alternating current to pass. In analog filter networks, they smooth the output of power supplies.
Will a capacitor stop my lights from dimming?
A capacitor will not solve headlight-dimming issues if they are constant and major. However, if the headlight dims only rarely, and only when the amps are kicked into high gear, it could mean that they draw too much power too quickly for the system to handle.
Does a capacitor stay on when car is off?
The cap will stay on until the battery’s voltage matches the cap’s. Your cap won’t stay off unless there is a change in the battery’s voltage. If the battery is not being used.
Which is better a capacitor or battery?
While other differences exist, batteries and capacitors do have some overlapping applications. However, in general batteries provide higher energy density for storage, while capacitors have more rapid charge and discharge capabilities (greater Power density).
Which capacitors are best for audio?
The best capacitor types for audio circuits are polystyrene and polypropylene. Polystyrene is the first choice, but are only available in values up to . 001 uF.
Does size of capacitor matter?
Generally no, the physical size of an electrolytic capacitor is not a factor as long as the capacitance and voltage ratings are the same. A possible exception is, if it’s a switching power supply that uses low ESR capacitors, then the sizes might be different.
Can you use two capacitors one amp?
A cap is only useful (if it’s already useful) if it’s connected as directly as possible to the amp that needs it. This is only possible if there are no fuses between that amp and the capacitor, but since every power wire needs its own fuse, there is no way to connect 2 amps to 1 cap in a secure way.
What happens when you connect a capacitor to a battery?
If you attach a capacitor (with capacitance C) to a battery (at voltage V), it will slowly develop a charge on each plate ( Q) as electrons build up on one plate and then exit the other.
Do capacitors waste energy?
No. Pure capacitance does not waste power as heat. Which is why inductive loads such as motors or fluorescent light ballasts are often compensated with capacitors for the loads to look like pure resistance to achieve better power factor.
How do you know what size capacitor to use?
Multiply the full load amps by 2,650. Divide this number by the supply voltage. The full load amps and the supply voltage can be found in the owner’s manual. The resulting number is the MicroFarad of the capacitor you need.
Where do you put a capacitor?
It is better to place components on the bottom because capacitors can usually be placed under the pads of top-side SMT components. Placing them on the bottom side usually frees up more space for fanout traces and vias.
How do I choose a capacitor?
For such circuits, careful selection of capacitors should be made considering their dissipation factor (typical loss of energy in percentage), dielectric absorption, leakage current or insulation resistance, and self-inductance. All these losses must be minimized to improve efficiency and battery life of the circuit.
Do capacitors help car audio?
Capacitors are not ideal for the sound system in your car. Many car audio fanatics will use a power capacitor as an alleged passive storage device to supply current to their amplifiers. Capacitors are advertised to act as a supplemental power supply between your car’s electrical and audio system.
Do capacitors affect sound?
The impedance (think of it as resistance) of a capacitor changes with the frequency of the signal passing through. The lower the frequency (bass sounds) the higher the impedance. The impedance of the capacitor also depends on its value.
How long do guitar amp capacitors last?
As a general rule, the lifespan of electrolytic caps in a guitar amp fall around 10 years for optimal performance. After this time the electrolytic inside the caps begins to dry out and the caps should be replaced.
How long do capacitors last in amplifiers?
electrolytic capacitors (and even ceramic and tantalum) caps in the power supply should be changed too – but 15 years is about average life expectancy for good quality ones.
