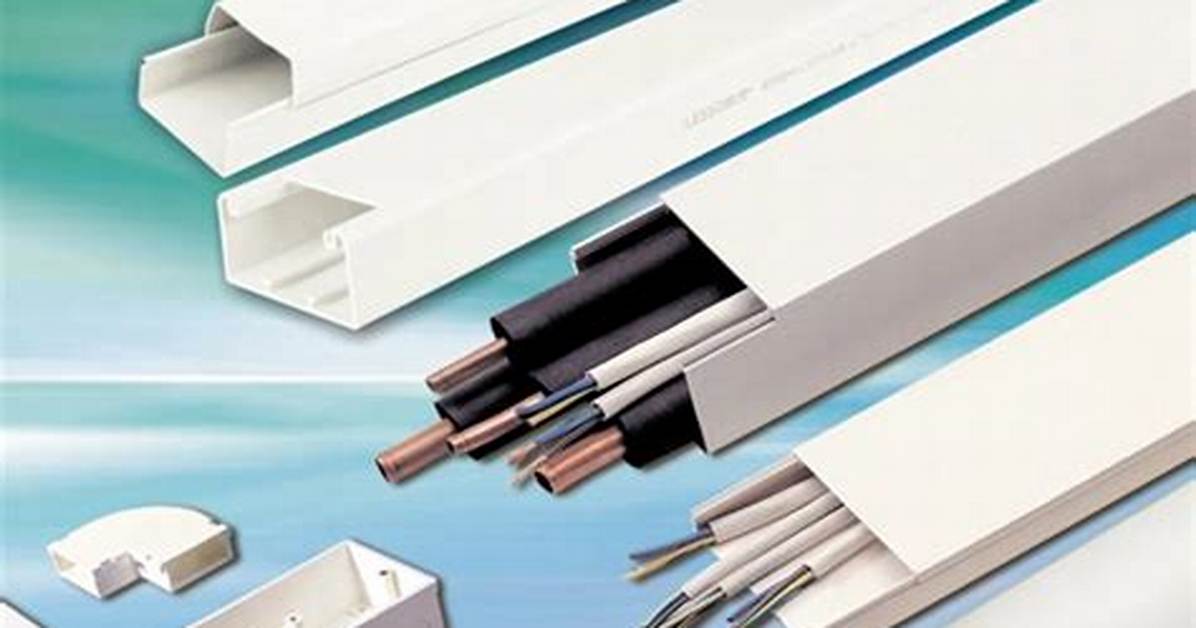

What is a wireway system? Wire ways are troughs with hinged or removable covers for housing and protecting electric wires and cable. Conductors are laid into the wireway after the wireway has been installed as a complete system.
What is the difference between raceway and Wireway?
Compared to raceways, a wireway is slim, a closed passage that houses electrical wires, and is mainly comprised of aluminum. Channel letters are connected to wireways the same way they would connect to a raceway. The sole advantage here is that a wireway is not a huge panel.
What are the Wireway accessories?
Wireway systems and accessories
NEMA Type 1 screw cover lay-in wireway.NEMA Type 1 quick-connect hinge cover lay-in wireway.NEMA Type 3R lay-in EnviroShield wireway.NEMA Type 12 lay-in wireway.NEMA Type 12 feed-through wireway.NEMA Type 4X feed-through wireway.
What is the purpose of cable trays?
Cable trays are mechanical support systems that provide a rigid structural system for electrical cables, raceways, and insulated conductors used for electric power distribution, control, signal instrumentation, and communication.
What are the different types of Wireways?
References
Lay-in Wireway.Feed-Through Wireway.Wiring Trough.
What is a Wireway trough?
Wireways or troughs are manufactured with removable covers or fabricated with hinges for protecting and housing electrical cables and wires. Wireways are designed to protect the cables from weather conditions such as water, dust, dirt, moisture and oil.
Is raceway and conduit the same thing?
Sometimes referred to as a ‘raceway system,’ a raceway is an enclosed conduit that creates a physical pathway for electric wiring.
Is a cable tray a raceway?
Cable tray is classified by the NEC (NFPA 70 the National Electrical Code) as a support system and not as a raceway. Generally speaking raceway completely encloses the cable inside of it.
What is a raceway NEC?
The NEC defines a raceway as: “An enclosed channel designed expressly for holding wires, cables, or bus bars, with additional functions as permitted in this Code [Art. 100].”
What are the types of cable trays?
Cable trays are made of either steel, aluminium or fibber reinforced plastic (FRP) and are available in six basic types,
Ladder Type Cable Tray.Solid Bottom Cable Tray.Trough Cable Tray.Channel Cable Tray.Wire Mesh Cable Tray.Single Rail Cable Tray.
What is Channel cable tray?
Channel cable tray is a sort of fully enclosed cable tray made from stainless steel, carbon steel, FRP, aluminum alloy. Channel cable trays have powder coated, hot-galvanized and electro galvanized surface mainly used to support computer cables, communication cables, thermocouple cables and other control cables.
What is an auxiliary gutter?
Metal Auxiliary Gutter.
A sheet metal enclosure used to supplement wiring spaces at meter centers, distribution centers, switchgear, switchboards, and similar points of wiring systems. The enclosure has hinged or removable covers for housing and protecting electrical wires, cable, and busbars.
What are the 3 main types of cable tray?
The cable tray types to choose from are ladder, ventilated trough, or solid bottom.
What are the 5 basic cable tray types?
The following are popular cable tray types.
Ladder-type.Perforated type.Solid bottom type.Wire mesh.Channel type.
Why is it importance in installing cable tray?
The trays can manage security wires or electrical, information transfers, nearby by a method for whatever another type of electric cables important inside the structure. While exact procurements might contrast, most national and nearby construction standards call to the utility of cable trays in various capacities.
What is the most commonly made of galvanized steel conduit?
Another example of a rigid electrical conduit is EMT (electrical metal tubing), which is most commonly made of galvanized steel but can also be aluminum. EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC.
What is wire mesh cable tray?
Wire mesh cable trays install as systems, with straight sections, fittings, and accessories connecting to form a pathway. These cable trays are lined with wire mesh to route and support small diameter cable, such as data communication cable.
What is the advantage of the knob and tube wiring?
Advantages of Knob-and-Tube Wiring:
K&T wires are less likely than Romex cables to be punctured by nails because K&T wires are held away from the framing. The porcelain components have an almost unlimited lifespan. The original installation of knob-and-tube wiring is often superior to that of modern Romex wiring.
What is a raceway in electrical terms?
Electrical raceway is often called surface-mounted wiring. It’s a track of metal tubing that carries wiring across a wall surface. A metal raceway allows you to use an existing electrical receptacle to power a new outlet or fixture.
What is the difference between cable tray and Raceway?
That said, raceways generally mount on a wall in a room where power and communications cables are terminated. Cable trays are usually overhead or under raised floors but carry open wiring. They are used to distribute cables from the source to the point of use.
What is the difference between electrical raceway and conduit?
is that raceway is a place where races are held a racetrack while conduit is a pipe or channel for conveying water etc.
What are the different kinds of Raceway?
All in all, there are three types of common raceway systems:
Galvanized steel (flexible and rigid)Non-metallic conduit or PVC (flexible and rigid)Flexible metal conduits.
