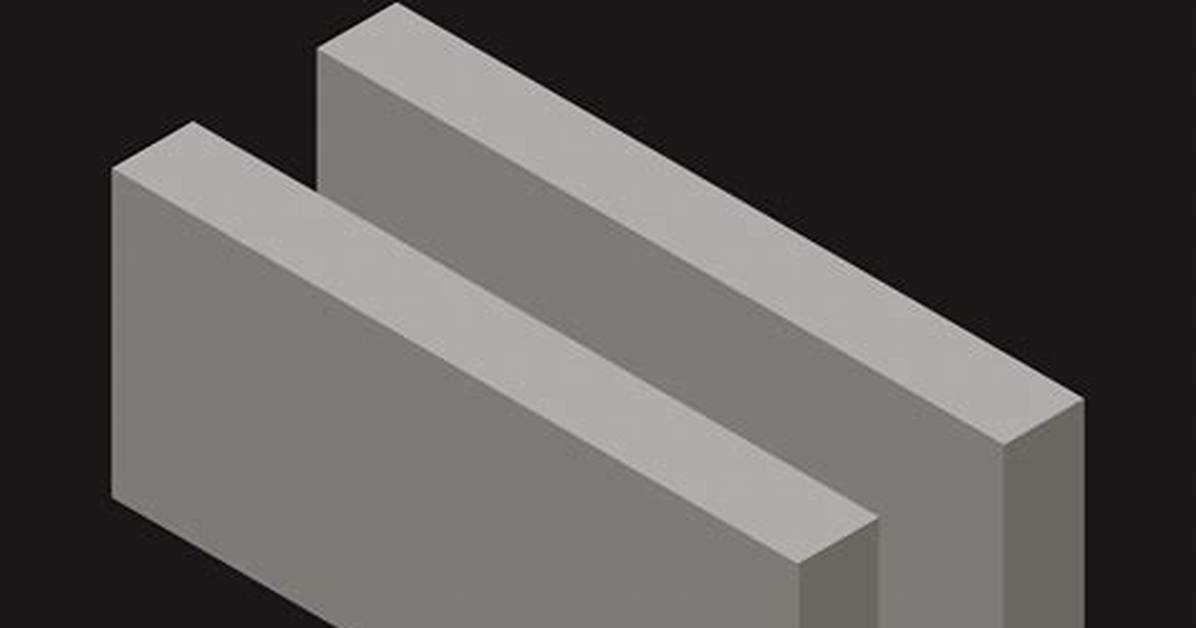

Lintel blocks combine to create lintel beams. These beams support the structure by transferring loads from above the beam to the walls on either side of the opening. They are also prefabricated and made with pre-stressed concrete.
What is lintel concrete block?
A lintel is a beam placed across the openings like doors, windows etc. in buildings to support the load from the structure above. The width of lintel beam is equal to the width of wall, and the ends of it is built into the wall. Lintels are classified based on their material of construction.
What is a lintel in masonry?
A lintel is a structural member placed over an opening in a wall. In the case of a brick masonry wall, lintels may consist of reinforced brick masonry, brick masonry arches, precast concrete or structural steel shapes.
What is the difference between a lintel and a beam?
The beam carries the load from slab and transfers it to the column from, column it is transferred to the footing and from footing finally to the soil. Whereas lintel carries the load of the wall above the openings and transfers it to walls only.
Do I need a lintel above door?
If the building has sufficient support in the door’s location, you may not need to fit more lintels. However, these days they are required as part of today’s building regulations. For all openings using timber frames over a width of 600 mm, and all openings using steel frames over 900 mm, then lintels are needed.
Are concrete lintels load bearing?
In most cases, the lintels are carrying and transferring huge loads. Even the lightest Fletton bricks weigh about 3 lbs each (or just over a Kg) so 1 square metre of brickwork weighs a massive 25 stones, without the sand and cement joints.
What is a lintel used for?
Simply put a lintel is a beam that is usually placed above windows and doors. The lintel’s main job is to support the load from the structure above it. Both doors and windows are not constructed to structurally withstand massive loads by themselves. Lintels are mainly found in masonry or brick structures.
What is the thickness of lintel?
Lintel thickness:– As per the building regulations and guidelines, For residential building, lintel thickness for house construction is range between 100mm to 200mm, generally 150 mm thick lintel should be adopted for residential and commercial building.
What is lintel and its uses?
A lintel is one type of beam which is utilized to support the above wall or partition material when openings like doors, windows, and so forth are necessary to provide a building structure. The primary function of the lintel is to take loads originating from the high wall and transfer its heap to the side walls.
Why is lintel necessary in a building?
A lintel is one type of beam which used to support the above wall when openings like doors, windows etc. are necessary to provide a building structure. The main function of the lintel is to take loads coming from above wall and transfer its load to the side walls.
What is the size of lintel?
A bearing of 150mm to 200mm should be provided, and it should be placed on the mortar. The width of the lintel could be equal to the thickness of opening & depth in the range between l/12 to l/8 of the span. Minimum width of 80mm should be provided. The wood lintels are easily destroyed by fire and decay.
What are lintels on a house?
A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.
Do I need building regs for a lintel?
Yes, if the alterations are of a structural nature. The insertion of a beam or lintel which affects the structural stability of the building will also require approval.
How do I know what size lintel I need?
What Size Lintel Do I Need?
STEP 1: KNOW YOUR WALL CONSTRUCTION.STEP 2: KNOW YOUR LENGTH. How wide is the structural opening? Measure the size of the structural opening i.e. the clear span between the Masonry supports. STEP 3: KNOW YOUR LOAD. You need to know the load in which the Lintel will support.
Do you need a lintel above a window?
Do you need a lintel above a window? In the case of a window, a lintel is extremely important since it distributes the weight of anything above the window onto the surrounding wall instead of placing the weight onto the window frame. Without a lintel above a window there is a danger of structural damage to a property.
