TOTALLY-ENCLOSED FAN-COOLED (TEFC) — Basically a TENV motor which has an external fan to blow cooling air over the motor. The additional cooling eliminates the necessity of a more costly oversized TENV motor.

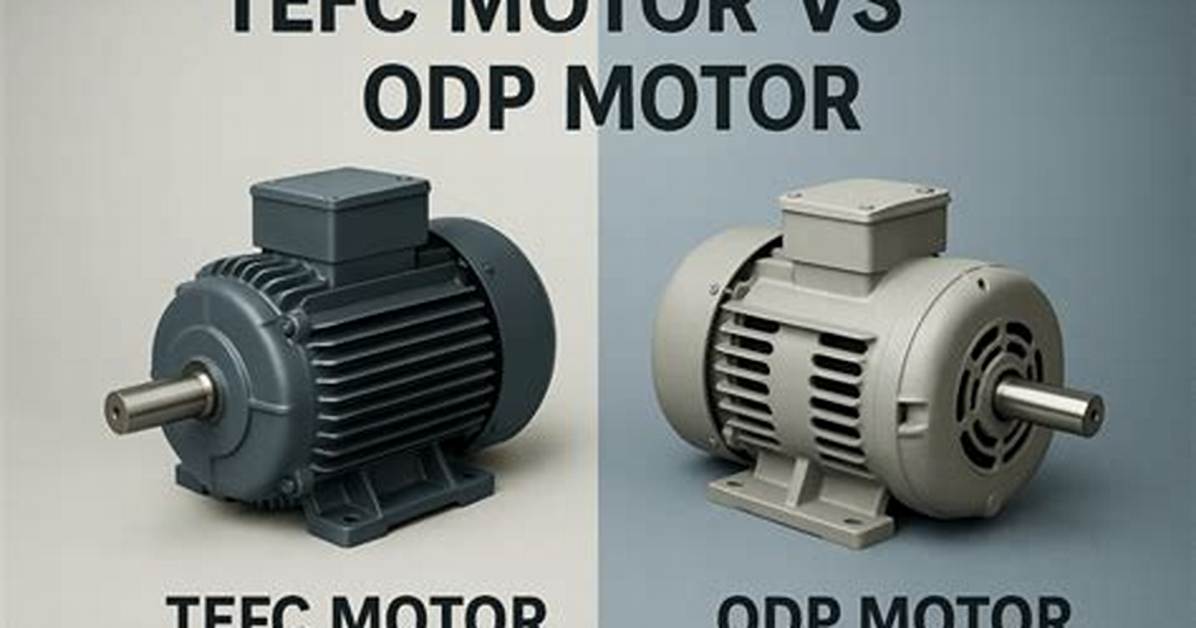

What is the difference between ODP and TEFC motors?
NAPCES ODP idler motors are completely safe to use in all indoor industrial settings. On the other hand, a totally enclosed fan cooled, or TEFC motor has a closed off chamber which requires the use of an external fan to blow air over it.
Is a TEFC motor explosion proof?
The enclosure is “Totally Enclosed”. This means that the motor is dust tight, and has a moderate water seal as well. TEFC motors are not secure against high pressure water nor submersible. They are also not explosion proof without additional modifications.
Can TEFC motors be used outdoors?
A totally enclosed, fan-cooled (TEFC) motor is much more adaptable to outdoor locations and high moisture areas. With a bit of care, you can expect this type of motor to work well and have a long life.
What does TEFC stand for?
A TEFC (totally enclosed fan cooled) motor is a far better choice, as it “totally encloses” the interior, with some exceptions.
Is a TENV motor explosion proof?
Is a TENV motor explosion proof? Totally Enclosed, Nonvented (TENV) Motors do not have air openings. Explosion-Proof (XPRF) Motors are completely enclosed to withstand an internal explosion of gas or vapor—the motor frame will not rupture or burst. Use these motors for safe operation in hazardous environments.
Are Tefc motors rated for Class 1 Div 2?
Class I, Division 2 Motors
TEFC (Totally Enclosed, Fan Cooled) motors and ODP (Open Drip -proof) motors can be used in Division 2 locations provided they do not have ignition sources such as arc-producing brushes or switching mechanisms.
What is PSC motor?
A Permanent Split Capacitor (PSC) Motor is a type of single-phase AC motor; more specifically, a type of split-phase induction motor in which the capacitor is permanently connected (as opposed to only being connected when starting).
What are 4 common types of motor enclosures?
The Most Common Types Of Electric Motor Enclosures
The most common types of enclosures are:Open Drip Proof (ODP)Weather Protected (WP1 / WP2)Totally Enclosed Fan Cooled (TEFC)Totally Enclosed Non-Ventilated (TENV)Totally Enclosed Air Over (TEAO)Totally Enclosed Forced Ventilated (TEFV)XP (Explosion Proof)
Which motor is used for elevators?
Motor used for elevators is generally induction motor. Concept: Induction motor: The motor which works on the principle of electromagnetic induction is known as the induction motor.
Does Class 1 Div 2 require explosion proof?
A Class I Division 2 light are not held to as high of a standard as Division 1 products. To meet the requirements for Division 2, a light does not have to be able to contain an explosion. Instead, they must be found to be unable to cause an explosion in environments for which they are approved to be used.
Where are explosion proof motors required?
Explosion proof motors are required for industrial applications with the presence of highly combustible, pervasive materials. Explosion proof does not mean that the motor will never explode, nor that it is immune from external explosions.
Are explosion proof motors waterproof?
This metal-to-metal contact is close-fitting, but cannot seal completely. In explosion-proof designs, normal weep holes cannot be used. Thus, when an explosion-proof motor is used in a wet environment, moisture can accumulate inside of the motor and stay there for an extended period of time.
What does Opsb mean on a motor?
ODP = Open Drop Proof | OPSB = Open Slotted Band, technically it is the same and Baldor is the one who uses the OPSB terminology, ODP is open at the front and back of the motor, OPSB is open at the front back and on the body or band of the motor, again this is Baldor only. Motor & Control Solutions.
What does ECM stand for HVAC?
Electronically commutated motor (ECM) technology has been in use for over 20 years in the HVACR industry. Predominantly used in variable-speed indoor blower motors, ECMs were introduced in 1987 by GE (rebranded Genteq™ in 2009).
What is EC motor technology?
An electronically commutated (EC) motor is designed to run on an alternating current (AC) power supply, but it in fact bears a closer resemblance to a direct current (DC) motor. It is essentially a permanent magnet, brushless DC motor that incorporates on-board electronics.
What is an explosion proof motor?
When a spark ignites volatile gas inside a motor, an explosion proof design contains the internal combustion to prevent a greater explosion or fire. An explosion proof motor is clearly marked with a nameplate that identifies its suitability for a given hazardous environment.
What is Tefc squirrel cage?
Totally enclosed fan cooled (TEFC) squirrel cage induction motor options. Abstract: This paper focuses on electric motor options specific to rolling element bearing TEFC AC induction motors.
