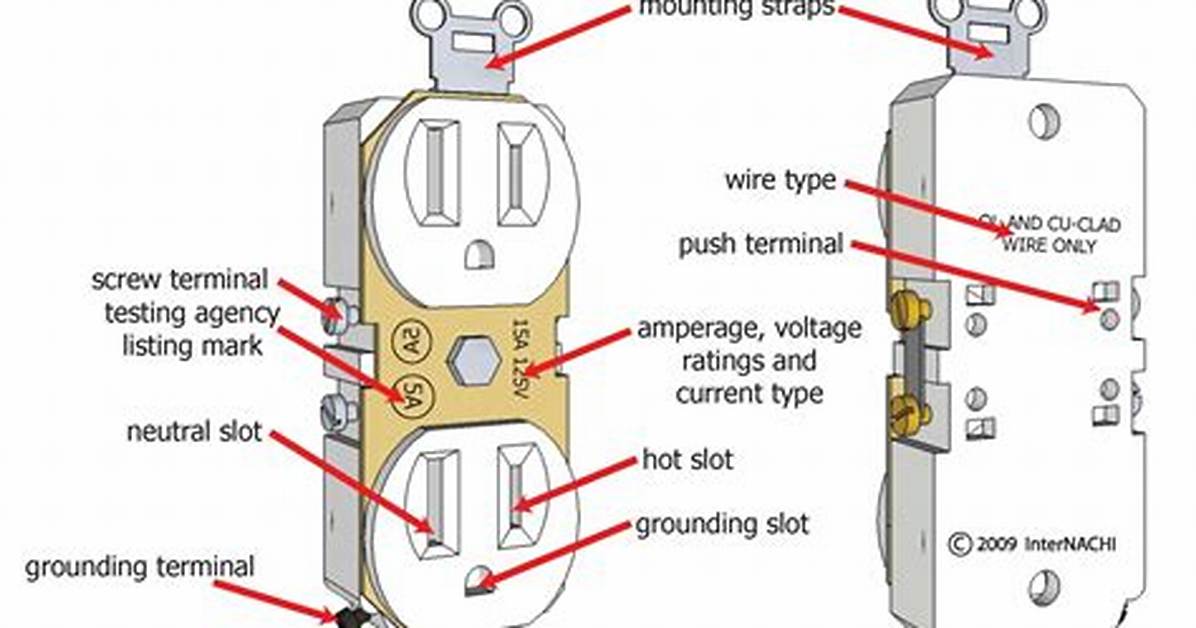

A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both! Duplex receptacles have different amperages and can handle different amounts of power, so make sure to pay attention to the “Amps” your outlet can handle.
What is the difference between a duplex receptacle and a split duplex receptacles?
A duplex receptacle has removable metal tabs that electrically connect the two terminals together on each side of the receptacle. A split receptacle has one or both tabs removed to isolate each terminal from the other. In most cases, only the line tab is removed.
Is a duplex receptacle considered two receptacles?
This means a duplex receptacle is considered two receptacles. Where connected to a branch circuit that supplies two or more receptacles, the total cord- and plug-connected load must not exceed 80% of the receptacle rating. A duplex receptacle has two contact devices on the same yoke [Art.
What is the symbol for a duplex receptacle?
Duplexes
A circle off of the wall and connected to it by two parallel lines represents a typical outlet (or receptacle) with two sockets.
How can a duplex receptacle be converted to a split wired receptacle?
Wiring at the Receptacle Box
Make sure the duplex receptacle has been “split” by breaking or removing the bonding strip on the hot side of the receptacle. This effectively severs the receptacle into two independent halves. Do not sever the bonding strip on the neutral side of the receptacle.
Does a duplex receptacle count as one outlet?
If there is one outlet, two outlets (most common) or 3 outlets it is still counted as 180 VA. If there are (4) or more outlets then it is counted as 90 VA per outlet. What you are describing, a double gang box, with (2) duplex outlets will equal 360 VA.
Is a duplex receptacle a single receptacle?
Since a duplex receptacle contains two contact devices, it is a multiple receptacle, not a single one. Receptacles installed on 15- and 20-ampere branch circuits must be of the grounding type unless meeting the provisions in 210-7(d).
How many duplex outlets can I put on a 20 amp circuit?
The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.
What does S3 mean in electrical?
Control wiring circuit
Resolution: The S1, S2, and S3 are switch designations in the recommended wiring schemes. When these switches are wired as indicated the S1 is for freewheel stop operation, S2 is for soft start operation FWD, and S3 is for soft start REV.
What does a triangle mean in electricity?
Electrical circuit diagram symbols
Amplifiers (denoted by triangle shapes) increase the output signal in your circuit. Capacitors (parallel lines) store energy in your system, while resistors (zigzag lines) reduce current flow.
What does a blue dot on an electrical outlet mean?
These indicate the need to balance the loads on the generator when adding the electrical devices. For example, if you are adding two electrical devices, plug one into a red outlet and the other into a blue outlet rather than two red or two blue outlets. This will help balance the loads on the generator.
