Since PIR sensors have ranges of up to 10 meters (30 feet), a single detector placed near the entrance is typically all that is necessary for rooms with only a single entrance.
Is PIR sensor active or passive?
Ultrasonic, microwave, and infrared motion sensors are active sensors, which means they actively send energy. A passive sensor can be thought of as a “read-only” device. An example is a passive infrared (PIR) sensor, which detects infrared energy created by body heat.
Is PIR sensor digital or analog?
Typical PIR-based motion detectors have primarily analog dual-pole output signal . After amplifier and comparator this deviations converts to digital pulses. Usually it is pairs of pulses. In each pair are present not only motions detect signal but also direction of motion.
What is PIR level?
PIRs are basically made of a pyroelectric sensor (which you can see below as the round metal can with a rectangular crystal in the center), which can detect levels of infrared radiation. Everything emits some low level radiation, and the hotter something is, the more radiation is emitted.
What is the principle of PIR?

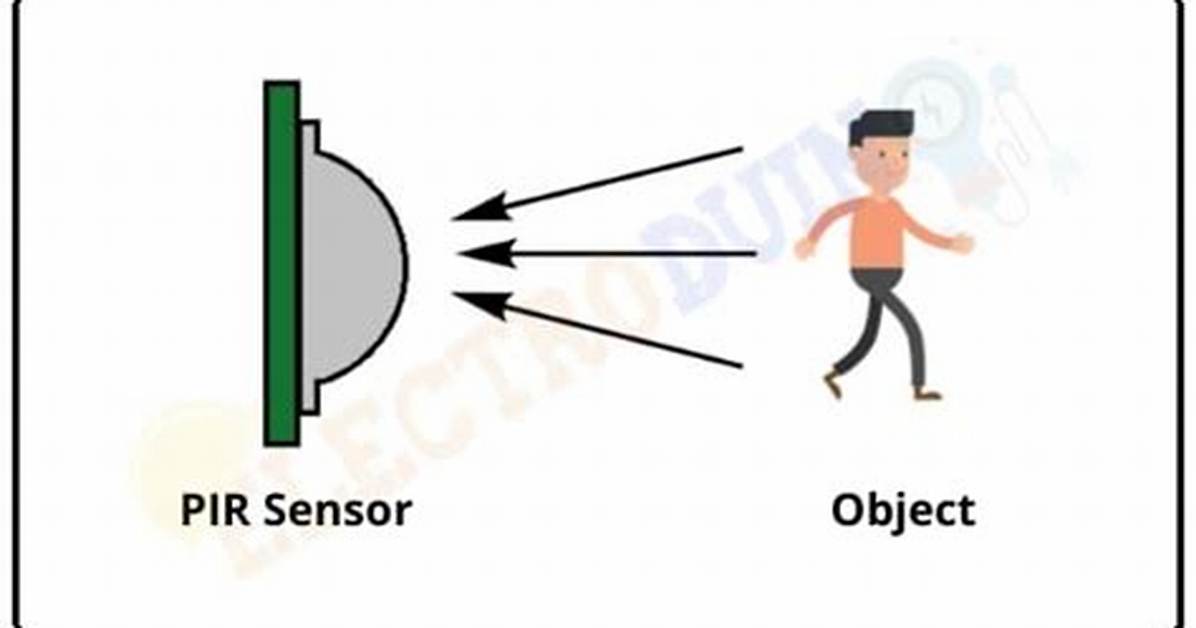

The passive infrared sensor does not radiate energy to space. It receives the infrared radiation from the human body to make an alarm. Any object with temperature is constantly radiating infrared rays to the outside world.
Why is PIR sensor used?
PIR sensors are used in thermal sensing applications, such as security and motion detection. They are commonly used in security alarms, motion detection alarms, and automatic lighting applications.
What is L and H in PIR sensor?
L position is for toggle LED, not much use in practical , In H position the LED will stay high when motion else Low.
Who discovered PIR?
The credits belong to Herbert Berman [2] who invented in 1970 the segmented mirror made from metallized plastic as an effective system for optical gain and the spacial modulation needed to generate a signal when people move across the field of view.
How do you test PIR?
Cross check the circuit wiring to ensure it is properly done, and then turn on the power supply to test the PIR motion sensor. Wait for the PIR sensor to calibrate properly, this will normally take from 10 to 60 seconds. If the LED is on, please wait until the LED turns off.
What is PIR sensor made of?
A PIR sensor is made from a Pyroelectric component (combination of metal and crystal) and other essential electrical components like circuits, resistors, capacitors. The sensor is enclosed in a metal sheet protector and a silicon window is provided in that to allow the infrared radiations to pass through it.
What is a PIR setting?
Introducing New True Detect™ Security Systems
The PIR (Passive Infrared) motion sensors are designed for security & optimised to reliably detect people, large pets & other large warm moving objects. This means – security cameras smart enough to detect humans rather than sheets blowing in the wind.
What is low PIR sensitivity?
A decreased sensitivity is good for a short range, say half of the maximum range or up to 10 feet (3 meters). Which in turn could miss movement at a longer range. Objects further away may need more motion to be detected.
