Where should drawer slides be positioned? The official answer is middle. If you position your drawer slide in the middle section, it can take more weight than other area slides mounted. Moreover, middle position drawer slides also help you balance the overall drawer’s weight and smoothly open and close.
How do you put slides in a drawer?
Slide into place the part of the slide that goes on the actual drawer. Mark the height and depth of that part of the slide from the opening and make corresponding marks on the outside of each drawer side. Attach the part of the slide that goes on the drawer and test fit it into the drawer opening.
How much clearance do you need for drawer slides?
Most side-mount slides require 1/2” to 17/32” of clearance on each side of a drawer. That means each drawer should be 1” to 1-1/16” smaller than the opening to fit properly. Under-mount slides attach to the bottoms of drawer boxes and can’t be seen when the drawers are open.
How do you measure the drawer width of a slide?
Measure the box, not the drawer front
Start at the back of the box and measure to the front of the box without including the face of the drawer. Once you have the length, round the number down. For example, if the drawer is 20 ½ inches long you will need to purchase 20 inch drawer slides.
How do you align drawer slides?

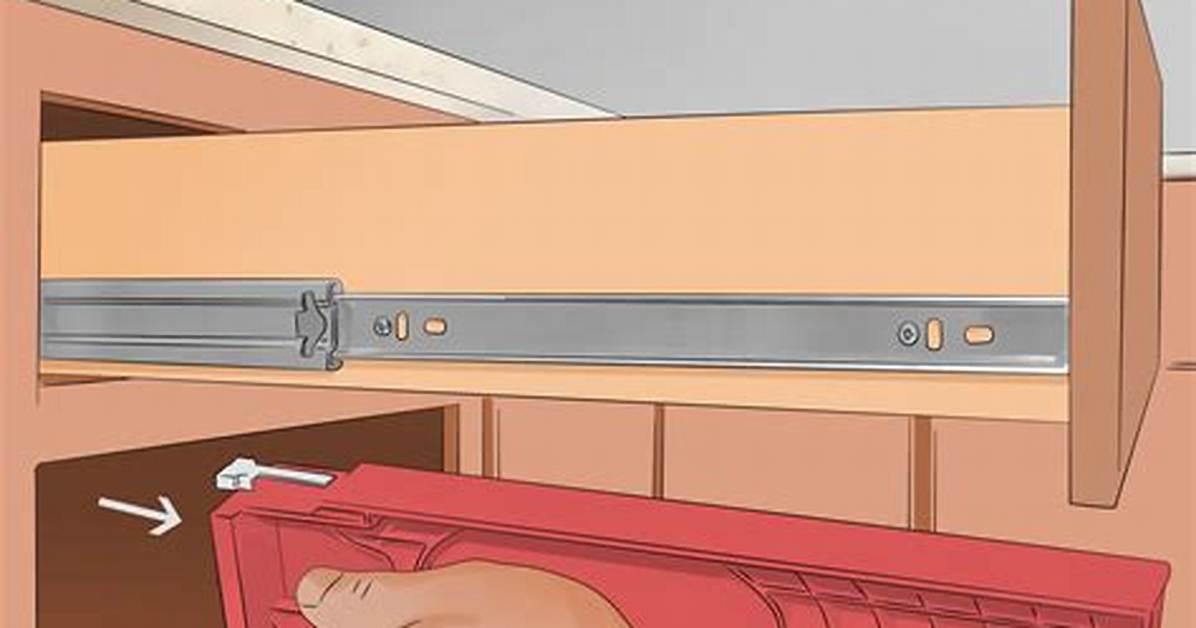

Begin by attaching the drawer-mount member. With the slide aligned flush to the drawer front and bottom edge, attach with a screw at the front in a vertical slot, photo below, and then add one at the rear. With the slide still joined together,align it with the bottom edge of thedrawer side.
Can drawer slides be longer than drawer?
You should always use the longest slide possible for your application, without exceeding the drawer depth into the cabinet. The Height of a Drawer Slide is usually only a limiting factor, in the sense that you can’t install a slide that is taller than your drawer or pull-out.
Can you put runners on old drawers?
Metal Runners
Under-mount runners are the best choice for older dressers. They fasten to the side of the drawer box and have a ledge that fits under the bottom edge of each side of the box.
How do you replace old kitchen drawers slides?
How to Replace Old Drawer Slides? Only 5 Easy Steps
Step 1 – Remove the Drawer. To remove the old slides, you’ll need to remove the drawer from the box. Step 2 – Remove Old Slides. Step 3 – Measure for New drawer slides. Step 4 – Purchase New Drawer Slides. Step 5 – Install New Glides. 1 comment.
