To check for small high or low spots that may not even be visible, place a long level or straight pipe on the subfloor. Move it around to different areas and mark any high or low spots you find with a pencil or marker. Most floors will have at least some slight variations.

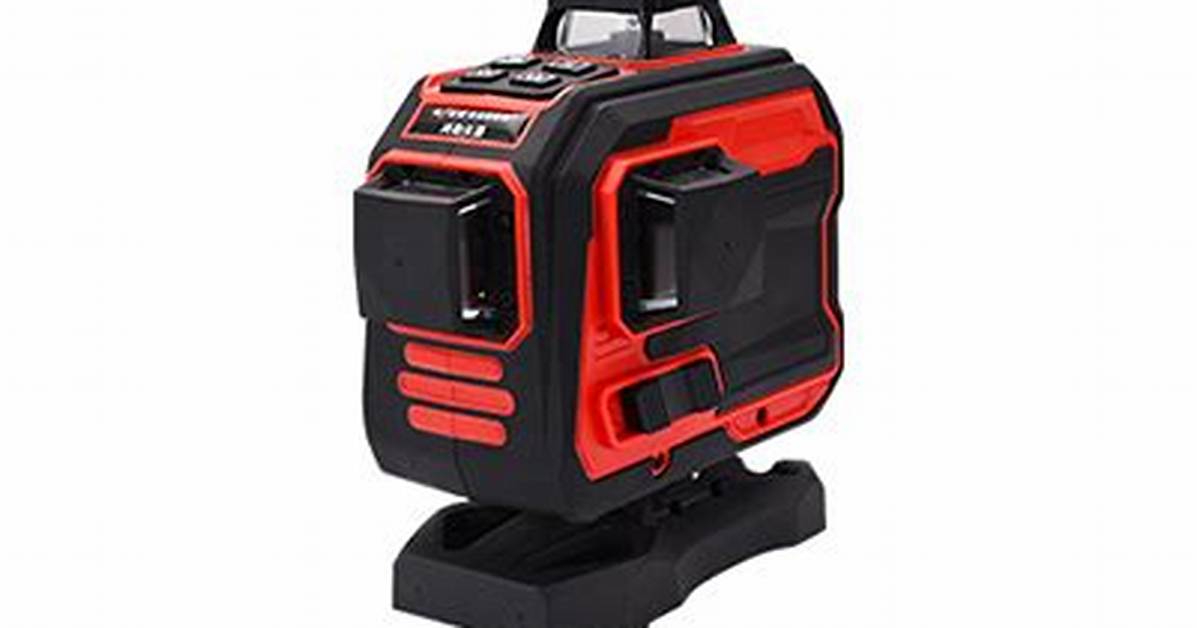

Are laser levels worth it?
Whether it’s for DIY jobs or for professional use, laser levels are worth getting. For most purposes, they’re more than accurate enough, and the setup time and consistency can make short work of a long project.
What is acceptable floor slope?
Most professionals will tell you that the acceptable amount of floor slope ranges from a half-inch to one inch in 20 feet. The most recent edition of the NAHB performance guidelines specifies that one-half inch of floor slope in 20 feet is acceptable.
How do you find the highest point on a floor?
Find the highest point in the floor by drawing or snapping a level chalk line along the adjacent wall, then measure down to the floor in several places. The spot where you measure the shortest distance is where the floor is highest.
How level should a floor be?
Most flooring manufacturers recommend a variation of no more than 3/16 inch over a 10-foot span. Floor leveling is a relatively easy DIY project, although some subfloors with rot, insect damage, or structural issues may require professional attention.
How do you know if a floor is flatness?
To find the floor flatness using F-numbers, you measure the elevation differences, d, between points on the floor, one foot part on a straight line. You calculate the differences, q, between all of the adjacent d values. Then use the mean and standard deviation of the q values to determine the FF number.
How do you find a low spot in a subfloor?
To check, place a long level or straight pipe on the subfloor. Move it to different areas and mark any spots with a pencil or marker where you find that are higher or lower than normal. Most subfloors will have at least a few spots with slight variations.
How do you fix a high spot on a subfloor?
Paper Shims and Plywood Strips
Minor high spots for hardwood and laminate floor installations are easily fixed with tar paper shims. The most basic method is to take a piece of tar paper, fold it in half and then push that underneath the flooring material being installed over the subfloor.
How is subfloor flatness measured?
Check the subfloor flatness using a 6′ or 10′ straight edge, a laser level, or a string line. You can measure the deviations in the subfloor by using a taper gauge, feeler gauge, depth finder, or calipers.
Are cheap laser levels accurate?
Good laser levels are accurate withing 1/16 of an inch per 100 feet. This is ten times more accurate than a spirit level, which is only 1/2 inch per 100 feet.
Which is better green or red laser level?
Did you know that a green laser light is ten to 50 times brighter than a red light laser? Green lasers are much more efficient and visible in areas of broad daylight and direct sunlight. They are also able to travel longer distances, which is why they are so popular on construction sites.
Is green laser better than red?
If you work mostly indoors, want to see the laser more clearly, and don’t want to move the laser around as much, a green laser level will almost certainly outperform a red laser level.
How much does it cost to level a floor in a house?
Average Cost to Level the Floor in a House
On average, you are looking at about $3 – $5 per square foot. So, for a 100 square foot slab, it would generally cost between $300 and $500.
How thick can you put floor leveler?
1249-50) can be installed from 5/8 inch (16 mm) thick to a feather edge. For areas deeper than 5/8 inch (16 mm), apply QUIKRETE® Self-Leveling Floor Resurfacer (No. 1249-50) in layers no greater than 5/8 inch (16 mm) each.
