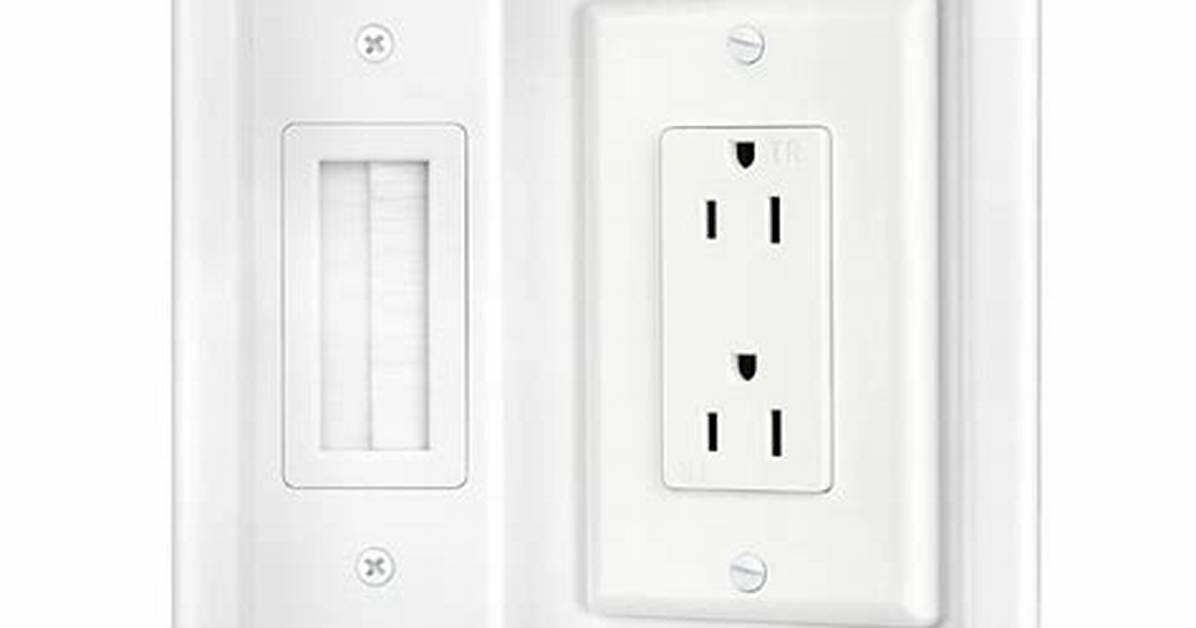

Recessed outlet hardware has a faceplate that is set deeper into the wall than a regular outlet. That means it prevents plugs and connectors from protruding above the surface of the wall. It’s aesthetically better looking, and in certain applications, it can be a lifesaver.
What is a recessed power outlet?
Recessed wall points are used so that the plug of an appliance sits within the wall and does not protrude out. This is done by using a plastic shroud and special metal bracket that is compatible with most leading brands of wall outlets and holds the outlet inside the recess.
How do I change an outlet to recess?
Remove the screws attaching the outlet cover, then remove the cover. Unscrew and remove the outlet itself, carefully detaching wires. Hold the new, recessed outlet box up to the outlet, marking its larger location. Be certain it is level and aligned with the stud.
What is a recessed junction box?
A recessed box is a plastic compartment through which the cable wires exit. A socket or switch is mounted to the front. As the name refers to, the recessed boxes are built into the walls.
What is a recessed power switch?
A recessed switch is installed into a hollow opening in the wall or drywall. the switch is connected to the cables and wiring, which run through a conduit integrated into grooves in the wall, or the hollow of the drywall.
What is a range outlet?
A range receptacle is a type of high power electrical outlet installed specifically for an electric range or oven.
How do you recess a junction box?
Recessing Boxes Behind the Wall Surface
Solution: Add a box extension | The fix is simply to install a metal or plastic box extension. If you use a metal box extension on a plastic box, connect the metal extension to the ground wire in the box using a grounding clip and a short piece of wire.
Does a junction box have to be attached to a stud?
They don’t need to be fastened to a stud, so you can install them anywhere.
Can you use an outlet box as a junction box?
Yes. For code-compliance purposes: Each 14 gauge wire is 2 cubic inches, each 12 gauge 2.25. All of the ground wires count as a largest wire.
