Venturi Water Pump (PDF)

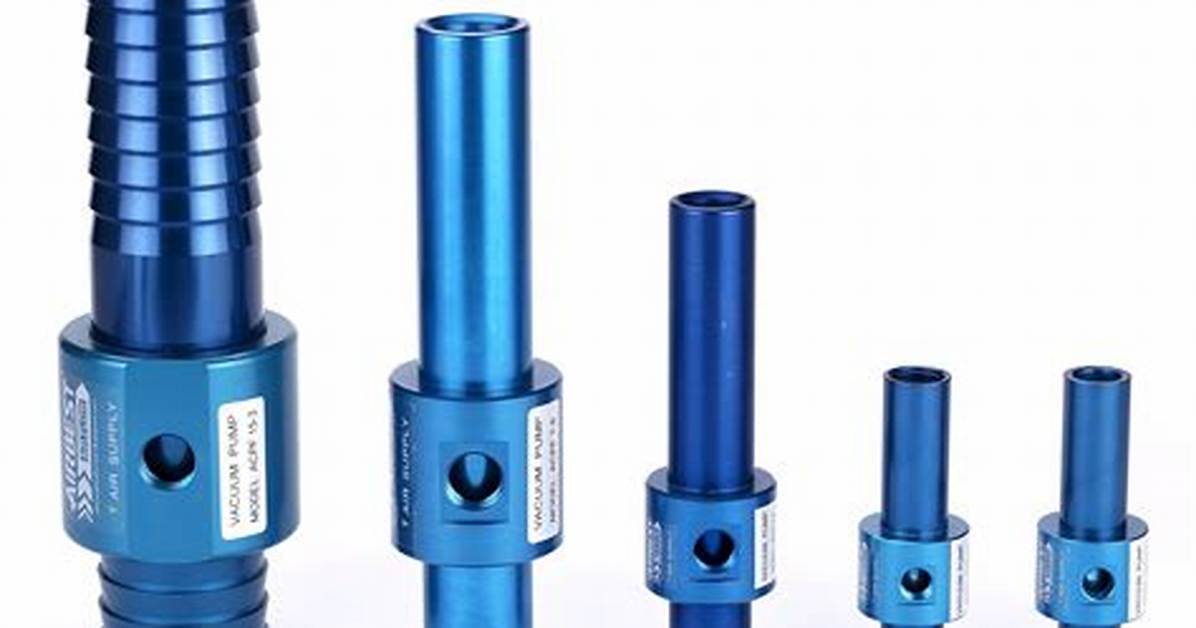

A rugged, simple and lightweight air operated pump that requires no priming and is capable of moving close to 1300 gallons of water per hour. The straight-through design eliminates clogging and the unit cannot seize.
Is a venturi a vacuum pump?
Venturi pumps are air-powered—require no electrical power source or lubricant. Place these compact vacuum pumps close to application for fast response and minimal vacuum loss.
Does a venturi increase pressure?
The Venturi effect states that in a situation with constant mechanical energy, the velocity of a fluid passing through a constricted area will increase and its static pressure will decrease. The effect utilizes both the principle of continuity as well as the principle of conservation of mechanical energy.
How efficient is a venturi pump?
The venturi uses 0.9 hp for every three seconds of a 15-second cycle. Therefore, the venturi uses on average 0.18 hp of compressed air over the same cycle period. Consequently, the venturi is “more efficient” in overall running costs.
How much water does a venturi pump use?
By using the pressure from the garden hose, this simple but effective submersible pump will drain up to 4,500 litres of water per hour with optimal water pressure. The average output is between 3,025 to 3,400 litres of water per hour.
How do you prime a venturi pump?
Solution: Install a port (1/4-in. pipe) at the highest point on the suction line, and attach a small venturi with plant air flowing through it. Open the valve in the pipe. Air flowing through the venturi creates a vacuum at the highest point and draws the fluid into the line until all air is evacuated.
Does the Venturi effect work with water?
This is where the Venturi Effect comes into play because while the water is forced through the narrow section of pipe it increases in velocity and there is a reduction in pressure. Once the pipe opens up again to the original size the fluid reduces in velocity and the pressure returns to the previous level.
How much vacuum can a venturi pull?
Venturi-type vacuum generator produces vacuum from stream of compressed air. Most recent designs pull vacuum to 27 in. -Hg from a source of compressed air of less than 50 psig.
How vacuum is created by venturi?
The Venturi vacuum is caused by a restriction in air pressure that is caused when air or fluid flows passes through a choked or constricted section of a pipe. Venturi vacuums generate vacuums by utilizing a Venturi chamber meant to move fluids or gases via a narrow section of a pipe.
How do you calculate venturi flow rate?
Venturi Flow Equation and Calculator
Preview: Venturi Flow Calculator.and.Therefore:and.Qmass = ρ · Q. Where: Q = volumetric flow rate (m3/s, in3/s) Qmass = Mass flowrate (kg/s, lbs/s) A1 = area = Π · r2 (mm2, in2) A2 = area = Π · r2 (mm2, in2) r1 = radius inlet at A1 (mm, in) r2 = radius inlet at A2 (mm, in)
What is venturi valve?
The venturi valve is a tube with a constricted neck, resulting in an hourglass-like shape. A cone inside the valve is able to move back and forth parallel to the valve’s body (and parallel to the air stream).
What is a slurpy pump?
The SLURRPY pump is a water-operated venturi pump which can be operated by a garden hose to pump Water or sand etc The garden hose is attached to the pump and when water is flowing thru the slurrpy you can immerse it in sand or water and it will discharge it thru the waste outlet.
Why does air speed up in a Venturi?
The Venturi meter demonstrator shows how fluid pressure is reduced when it flows through a constricted section of tubing. It uses Bernoullii’s Principle, which states that air/fluid flows faster in the constricted section.
Why does pressure drop in Venturi?
The pressure increases over the smaller surface area, while the narrow flow then creates a vacuum in the water. The fluid’s kinetic energy increases results in a pressure decrease.
Does a Venturi cool air?
The Venturi effect accelerates airflow and reduces pressure within a properly designed constricted passage. It will not result in moving greater quantities of air through your computer. It affects only the constricted passage.
