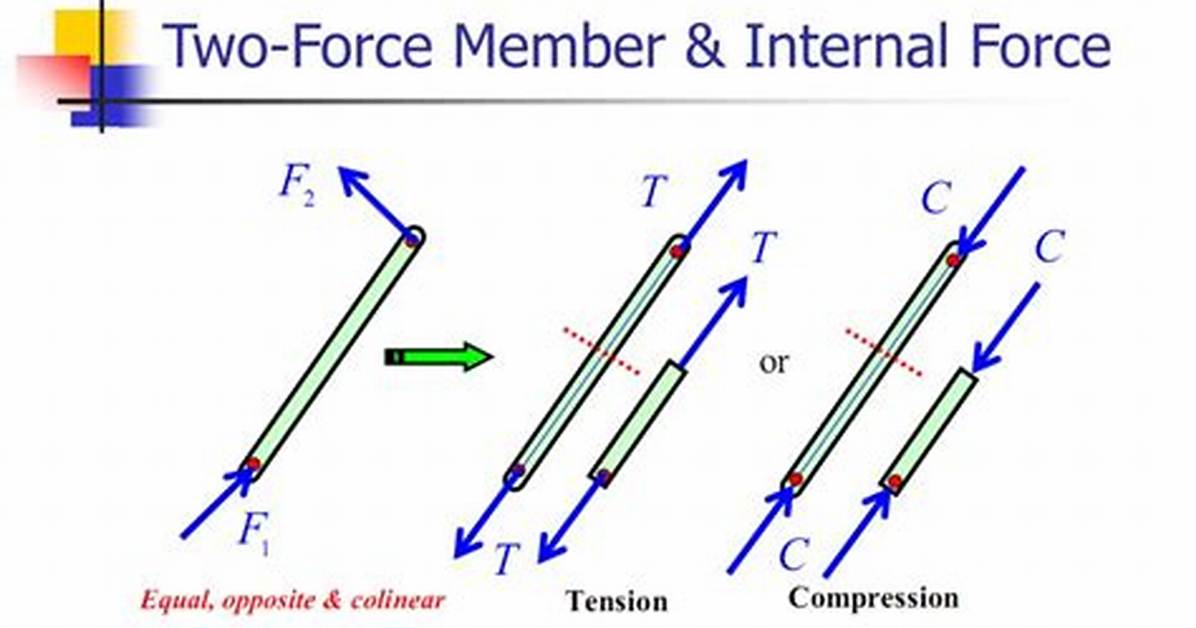

A two-force member is a structure that has exactly two points where external forces can be applied. This means that the net force acting at those two points must lie along the line that contains those two points of application.

How do you identify a two force member?

If an element has pins or hinge supports at both ends and carries no load in-between, it is called a two-force member. These elements can only have two forces acting upon them at their hinges. If only two forces act on a body that is in equilibrium, then they must be equal in magnitude, co-linear and opposite in sense.

What are 3 force members?

A three-force member is a rigid body with no force couples, acted upon by a system of forces composed of, or reducible to, three forces at three different locations. Because all three forces act at different locations on the member, their direction and magnitude are not known.

Can a two force member have a moment?

A two-force member is a body that has forces (and only forces, no moments) acting on it in only two locations. In order to have a two-force member in static equilibrium, the net force at each location must be equal, opposite, and collinear.

What is truss member?

A Truss is a triangulated system of members that are structured and connected in a way such that they only incur axial force. These members are considered two-force members as the forces are only applied at either end of the member, resulting in either a compression or tension force.

What is the role of zero force members?

Zero force members are used to increase stability and rigidity of the truss and to support various loading conditions.

How do you identify zero force members?

If a joint has only two non-collinear members and there is no external load or support reaction at that joint, then those two members are zero- force members.

What are concurrent forces?

If the forces applied to a body are such that their lines of action meet at a single point, then they are called concurrent forces. Resultant of multiple forces on a body can be found using triangle and parallelogram law of vector addition and simplifies the problem solving by finding the net force on the particle.

Which of the following is valid if two forces are represented by two sides of a triangle in order?

Triangle Law of Forces

It states, “If two forces acting simultaneously on a particle, be represented in magnitude and direction by the two sides of a triangle, taken in order; their resultant may be represented in magnitude and direction by the third side of the triangle, taken in opposite order.”

What is joint method?

The method of joints is a process used to solve for the unknown forces acting on members of a truss. The method centers on the joints or connection points between the members, and it is usually the fastest and easiest way to solve for all the unknown forces in a truss structure.

What is the force in member AB?

Hence the force in the member AB = Zero.

What are Noncollinear members?

applied to non-collinear member → Non-collinear member is a zero-force member. Zero-force members. Page 14. Method of joints: Method to determine forces in members.  Entire truss is in equilibrium if and only if all individual pieces (truss.
