These high quality stage micrometers are used for routine calibration of a variety of optical measuring instruments, from light microscopes and eye pieces to x-y stages and optical benches. The stage micrometer is actually used as a “specimen” in order to calibrate for example, an eye piece reticle.
What is stage and ocular micrometer?
The ocular micrometer is divided into ocular divisions (OD). 2. Place the calibrated stage micrometer slide on the stage and focus on the scale. The stage micrometer has a calibrated scale which is divided into 0.1 millimeters (mm) and 0.01 mm units.
Where is the stage micrometer on a microscope?
The stage micrometer is placed on the platform/stage of the microscope. Then view through the eyepiece and focus and align with the scale of the eyepiece reticle. The left side should be line up at the 0 with the stage micrometer so they are overlapping best possible..
What is the difference between stage micrometer and ocular micrometer?
The distance between the lines of an ocular micrometer is an arbitrary measurement that only has meaning if the ocular micrometer is calibrated for the objective being used. A stage micrometer, also known as an objective micrometer, has scribed lines on it that are exactly 0.01mm (10 micrometers) apart.
What is stage of microscope?
All microscopes are designed to include a stage where the specimen (usually mounted onto a glass slide) is placed for observation. Stages are often equipped with a mechanical device that holds the specimen slide in place and can smoothly translate the slide back and forth as well as from side to side.
What is the length and metric units of a stage micrometer?

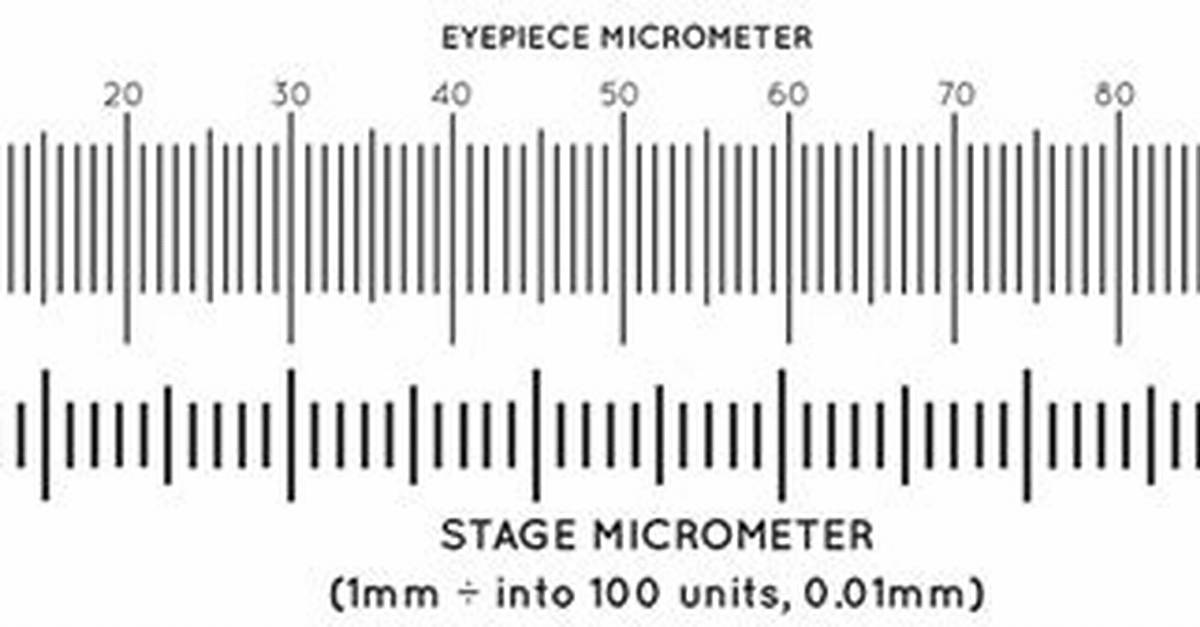

The stage micrometer is 1 mm long with 100 divisions so each division of the stage micrometer is one one-hundredth of a mm (0.01mm or 10 um).
What is this μm?
micrometre, also called micron, metric unit of measure for length equal to 0.001 mm, or about 0.000039 inch. Its symbol is μm. The micrometre is commonly employed to measure the thickness or diameter of microscopic objects, such as microorganisms and colloidal particles.
What is a micrometer used for?
micrometer, in full micrometer caliper, instrument for making precise linear measurements of dimensions such as diameters, thicknesses, and lengths of solid bodies; it consists of a C-shaped frame with a movable jaw operated by an integral screw.
How do graduations differ between ocular and stage micrometers?
How do the graduations differ between ocular and stage micrometers? Ocular micrometers consist of a circular disk of glass that has graduations engraved on its upper surface, while stage micrometers have lines inscribed on it that are exactly 0.01 (10 micrometers) mm apart.
What are the different types of micrometers?
What are the different types of micrometer?
Outside Micrometer. The outside micrometer is the most commonly used type of micrometer. Inside Micrometer. Caliper-Type Micrometer. Tubular Micrometers and Rod Micrometers. Depth Micrometer.
What is ocular unit?
One ocular unit is the smallest unit visible on the scale. There are 100 of these in total. Using the mechanical stage controls, line up the left-hand (zero) end of the ocular scale with the left-hand (zero) end of the 2 mm stage scale.
What is a stage micrometer quizlet?
Used to measure the size of objects. *Note: A Stage Micrometer or Ocular Micrometer is a piece of equipment and NOT a unit of measure. Stage Micrometer. Used to calibrate the Ocular Micrometer. *Note: A Stage Micrometer or Ocular Micrometer is a piece of equipment and NOT a unit of measure.
How do you use a stage micrometer and eyepiece graticule?
Line up one of the divisions on the eyepiece graticule with a fixed point on the stage micrometer. Count the number of divisions on the eyepiece graticule that correspond with a set measurement on the stage micrometer. Calculate the distance in micrometres of one division on the eyepiece graticule.
What is a calibration factor?
Calibration Factor: A measure of the
chromatographic. response of a target analyte relative to the mass injected.
Why is calibration necessary?
The primary significance of calibration is that it maintains accuracy, standardization and repeatability in measurements, assuring reliable benchmarks and results. Without regular calibration, equipment can fall out of spec, provide inaccurate measurements and threaten quality, safety and equipment longevity.
