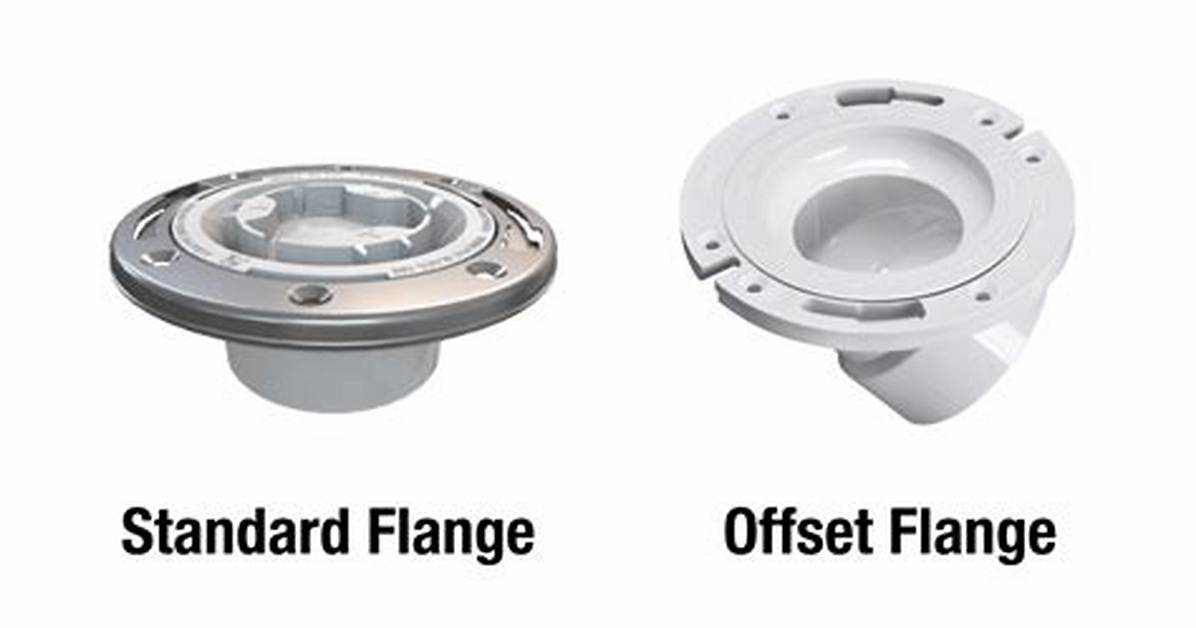

Unlike a standard flange, which is centered on the waste pipe, an offset flange is off-center—that lets you shift the location of the toilet by a couple of inches (left, right, forward or back). P.S. Flanges with stainless steel rings cost a few bucks more than all-plastic versions.
How far will an offset flange move a toilet?
What Is an Offset Toilet Flange? Shop at your local home improvement store, and you’ll find a device called a toilet offset flange. This product gives you approximately 2-inches of extra distance in any direction from the existing toilet sewage pipe. It works with both 3-inch and 4-inch sewage pipes.
How do you fix an offset toilet flange?
This are the steps to follow while installing the offset flange:
Turn off water and drain the old toilet tank and bowl.Remove the old toilet.Remove and trash the old wax ring.Remove the old toilet flange.Install the offset toilet flange.Fix the wax ring.Install the toilet.Reconnect water supply.
Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet?
The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.
How do you fix a toilet that is too far from the wall?
When a toilet is too far from the wall, you can purchase an offset flange that will allow the toilet to be moved several inches in every direction. This will allow the toilet to be moved closer to the wall. The standard distance of toilet placement is for the toilet to be 12 inches away from the back of the wall.
Can a toilet be moved 6 inches?
Questionably, can a toilet be moved 6-inches? Indeed, yes! You can move the Toilet at 6-inches without changing the waste line and stack using an offset toilet flange. It needs plenty of plumbing work and investment to re-install the waste line and stack.
How do you install a toilet offset flange on concrete?
Instructions
Cut off the Old Flange and Obstructions. After you remove the toilet, you will probably find an existing toilet flange. Scrape off Old Wax Ring. Pick the Correct New Toilet Flange. Place T-Bolts in New Toilet Flange. Position Toilet Flange. Drill Holes Into Concrete. Screw Toilet Flange Onto Concrete.
Do I need wax ring with flange?
The flange helps to ensure that the ring is centered over the flange in the floor and to direct the waste into the pipe. More wax in the ring helps ensure a good and thick seal. That’s not good advice. If you use extra wax where not needed it can squeeze into the path of the water.
What is the standard offset for a toilet?
This measurement is 15 inches. That’s the minimum (you can have more). So looking at the toilet, make sure there are at least 15 inches of clearance from the center of the toilet to any adjacent fixture (or wall).
Can I move a toilet a few inches?
Yes, you can actually move a toilet. Even moving a toilet by a few inches without having to make a new hole in the floor is possible. You can use an offset toilet flange to move the toilet by a couple of inches on any side. This will allow you to use the same wastewater line and in turn help to save you a lot of money.
Are all toilets 12 inch rough-in?
Most toilets will have a 12 inch rough-in. Toilets with a 10- or 14-inch rough-in measurement are a little less common, so you might have less of a selection of toilets of this size. If you’re replacing an existing toilet, look for a replacement toilet with the same rough-in.
What does toilet rough-in mean?
Toilet Rough-In Measurements and Standards
Start by measuring the rough-in size. This is the distance between the wall behind the toilet and the center of the drainpipe or the bolts that hold the toilet to the floor. It’s best to perform this measurement before you remove the old toilet.
Why would I want an elongated toilet bowl?
Elongated bowls are also considered more ‘hygienic’ in that the larger surface area of the bowl makes is easier for men and children to use with less mess. The longer bowl size is also a requirement for ADA use, and the longer/wider bowl is generally easier to use for those with mobility issues.
How far from the wall should a toilet rough-in Be?
In general, the toilet rough-in distance is 12″ from the center of the toilet flange to the back wall for a typical toilet. There should also be a minimum of 15″ from the centerline of the toilet to any wall or object on either side of the toilet.
Can I use a 10-inch rough-in toilet?
You can replace a 12-inch rough-in toilet with a 10-inch rough-in toilet but cannot replace a 10-inch rough-in toilet with a 12-inch toilet. With a 10-inch rough-in toilet, the distance between the center of the drainpipe and the rear wall is 2-inch shorter than that of a 12-inch rough-in toilet.
