A benefit of the hollow shafts and softer metals used for pop rivets is that it makes removal relatively easy. A drill bit can be easily seated in the hollow end and used to remove the head. By contrast, solid rivets are perhaps the strongest mechanical fastener available.
Do rivets hold better than screws?
Compared to screws, rivets hold much better. They are impossible to open and won’t shake loose. This is because the screw only has a head on one side whereas the rivet is supporting both sides. This is also important in the transport process where the frame is subject to vibration.
Can you install rivets without a rivet gun?
To install rivet nuts without a tool, you will still need more than just your bare hands. You will also need a bolt that 1) has its own nut, and 2) can fit into the rivet nut. You should also have a washer or larger bushing that can fit around the bolt fairly tight.
Why are rivets no longer used?
Indeed, the latest steel construction specifications published by AISC (the 14th Edition) no longer covers their installation. The reason for the change is primarily due to the expense of skilled workers required to install high strength structural steel rivets.
What are the disadvantages of riveting?
Limitations of riveting
Riveting take more labor time than welding. Stress concentration at the rivet holes of metal plates.The holes may weaken the working cross section of the plate. It has more weight than welded joint due to strap-plate and rivets.The riveted joints are bulkier than welding and brazing.
Why are aircraft riveted?
The greatest benefit of using riveted joints in an aircraft is that they are stronger and more durable than welded joints. When two components are welded together, only the exterior of the components are joined together.
Are rivets stronger than welds?
Last, but not least, generally, riveting is not as strong as welding. If you need the two parts to be capable of withstanding forces that draw the pieces apart, riveted joints will be more likely to fail compared to a properly welded joint.
How much weight can a rivet hold?
Aluminum Rivet/Steel Body– 1/8: 400 – 600 lbs.; 5/32: 600 – 850 lbs.; 3/16: 750 – 1050 lbs. Steel Rivet/Steel Body– 1/8: 600 – 800 lbs.; 5/32: 750 – 1000 lbs.; 3/16: 1150 – 1450 lbs. Stainless Rivet/Steel Body– 1/8: 650 – 950 lbs.; 5/32 1150 – 1450 lbs.; 3/16: 1400 – 1900 lbs.
Can I use bolts instead of rivets?
Bolts versus rivets. By using Nord-Lock washers, a bolted fastener can overcome many of the disadvantages of rivets, while still offering the advantages of bolts. Rivets offer a number of advantages over threaded bolts. They won’t loosen when subjected to vibration and can secure joints with short clamp length.

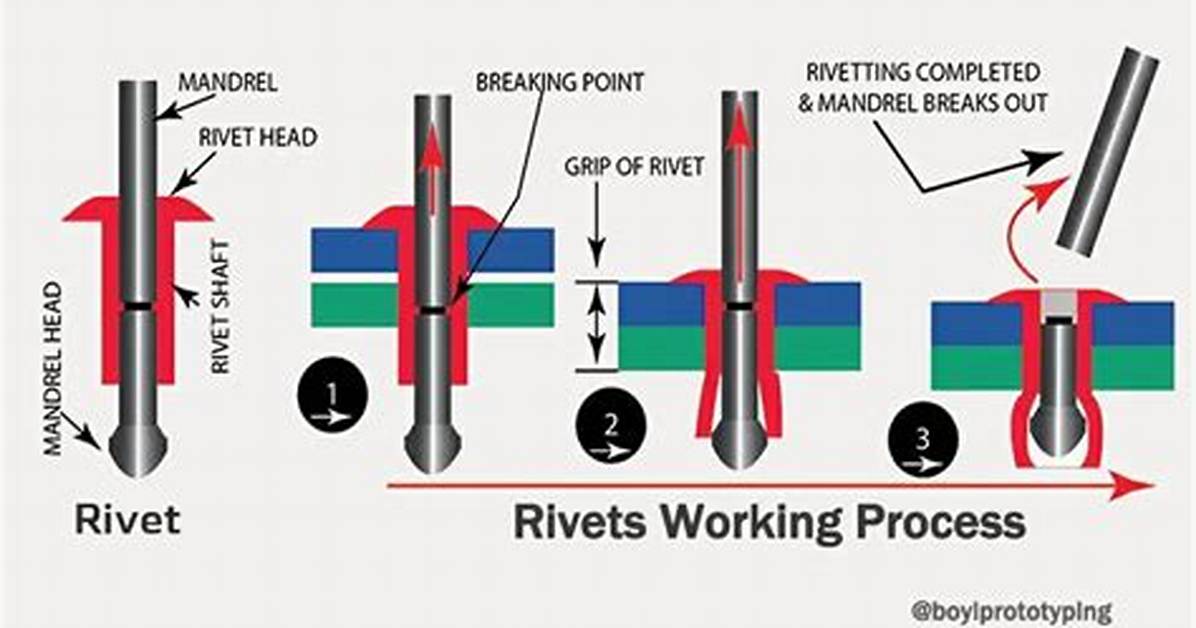

What are blind rivets?
Pop rivets, also known as blind rivets, are a type of rivet. They are used in applications where there is limited – or no – access to the rear side (blind side) of the parts to be joined.
Can you rivet through metal?
Drill a 1/8-inch hole through one or more sheets of metal that need to be riveted (up to 1/2 inch thick). Insert a rivet into the hole. Place the rivet stem into the riveting tool. Pump the tool handle until the rivet “pops.”
How do steel rivets work?
The rivet is deformed by pounding or smashing of the tail, which makes the material flatter and usually causes the tail to be expanded by about one and a half times the size of the stem’s original diameter. When finished the tail has the appearance of a dumbbell shape completing the riveted joint.
