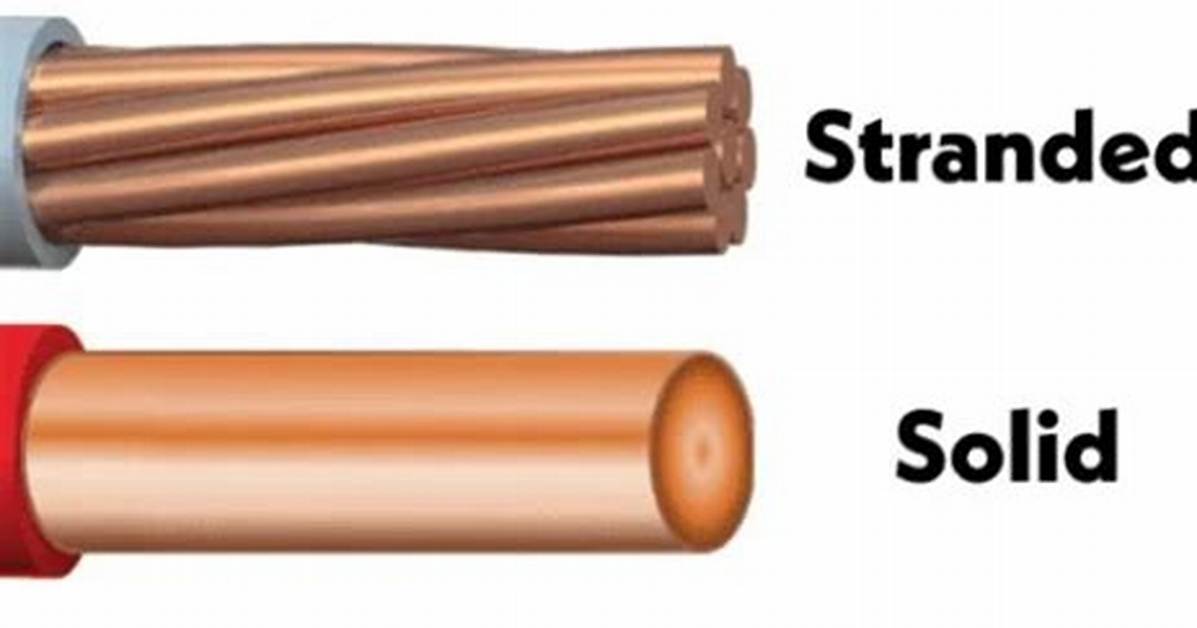

Because of its thickness, solid wire has a decreased surface area that reduces dissipation. Because of the given thickness of stranded wire, i.e., it’s thinner, there are more air gaps and a greater surface area in the individual strands of wire. Therefore, it carries less current than similar solid wires can.
Can I use stranded wire instead of solid?
Stranded wire has proved to be more flexible than the solid wire of the same cross-sectional area. The wires are stronger and provide more durability than the solid wires and have better conductivity than the solid wire. Further: Stranded wire is more reliable as it comprises of many strands.
Can you use stranded wire on a circuit breaker?
When installing a circuit breaker to protect a circuit, many installation factors must be considered. One of these decisions is to choose the best suited means of connecting the circuit breaker to the load. For molded-case circuit breakers, the most common connection means are solid and stranded wire conductors.
Can stranded wire be used for ground?
The grounding conductor can be bare or insulated, stranded or solid, and must be securely fastened in place and run in a straight line from the discharge unit to the grounding electrode (Photo 2).
Why is solid wire used in homes?
Solid wire is thicker, which means less surface area for dissipation. The thinner wires in stranded wire contain air gaps and greater surface area with the individual strands, translating to more dissipation. When choosing between solid or stranded wire for house wiring, the solid wire offers higher current capacity.
Which wire is used in home wiring?
An electrical wire is a conductor, a material which conducts electricity. For household wiring, the material is either copper or aluminium (or copper-sheathed aluminium), although aluminum is not really used anymore.
Should you twist stranded cable?
One thing to bear in mind is that twisting strands together can result in the terminal biting onto the conductor as if it was a solid circular conductor (i.e. with a certain amount of space left in the terminal) – any later disturbance can result in the strands re-arranging themself a little and filling some of the
What is solid wire used for?
Solid wire, also called solid-core or single-strand wire, consists of one piece of metal wire. Solid wire is useful for wiring breadboards. Solid wire is cheaper to manufacture than stranded wire and is used where there is little need for flexibility in the wire.
Can I use stranded wire for AC?
Purpose. Solid wires are most commonly used for AC applications that require higher voltage, but stranded wires work best for lower-voltage DC applications. For instance, solid wires are found running through walls to send the highest levels of electrical current to power areas.
What does AWG stand for?
AWG (American Wire Gauge) is a U.S. standard set of non-ferrous wire conductor sizes.
Can you use stranded wire for a light switch?
The stranded wire will be fine. Twist the stranded end of the wire before wirenutting/clamping it together with the solid wire. I’m assuming that it is copper wire, being joined to copper wire with a clamping connector like a wirenut. If you’re using stab-in connectors, you’ll need to use solid wire instead.
Can you use push in connectors with stranded wire?
Easy-Twist push-in wire connectors are suitable for connecting three solid or stranded copper wires from #22 to #12 AWG. Conductors need only to be stripped and inserted to ensure a proper connection.
How many amps can a 12 gauge wire handle?
“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”
Can you use stranded wire for water heater?
Use only 600 volt solid copper wire. Do not use stranded wire or extension cord. Do not use solder anywhere on residential 120-240 volt wiring.
